Mahle Motorsport 930077100-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-930077100-1
Sale price
$7699
Regular price
$9358
Unit price
/
Unavailable
$16.59 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

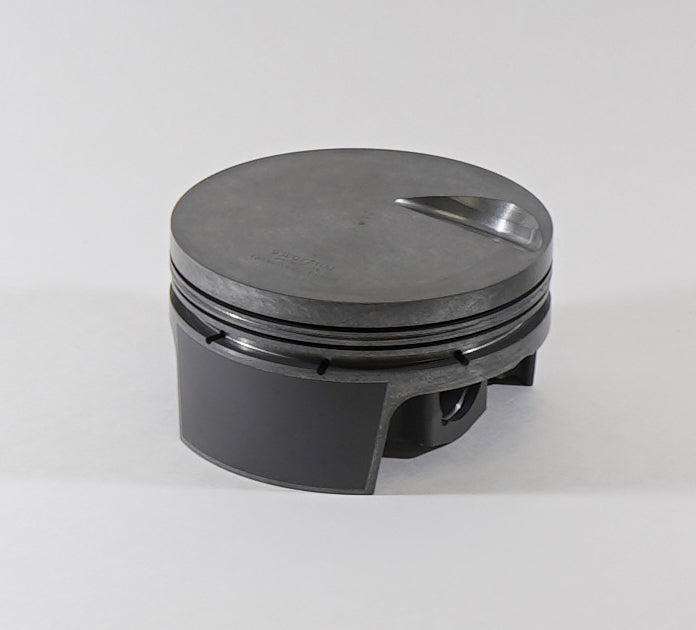

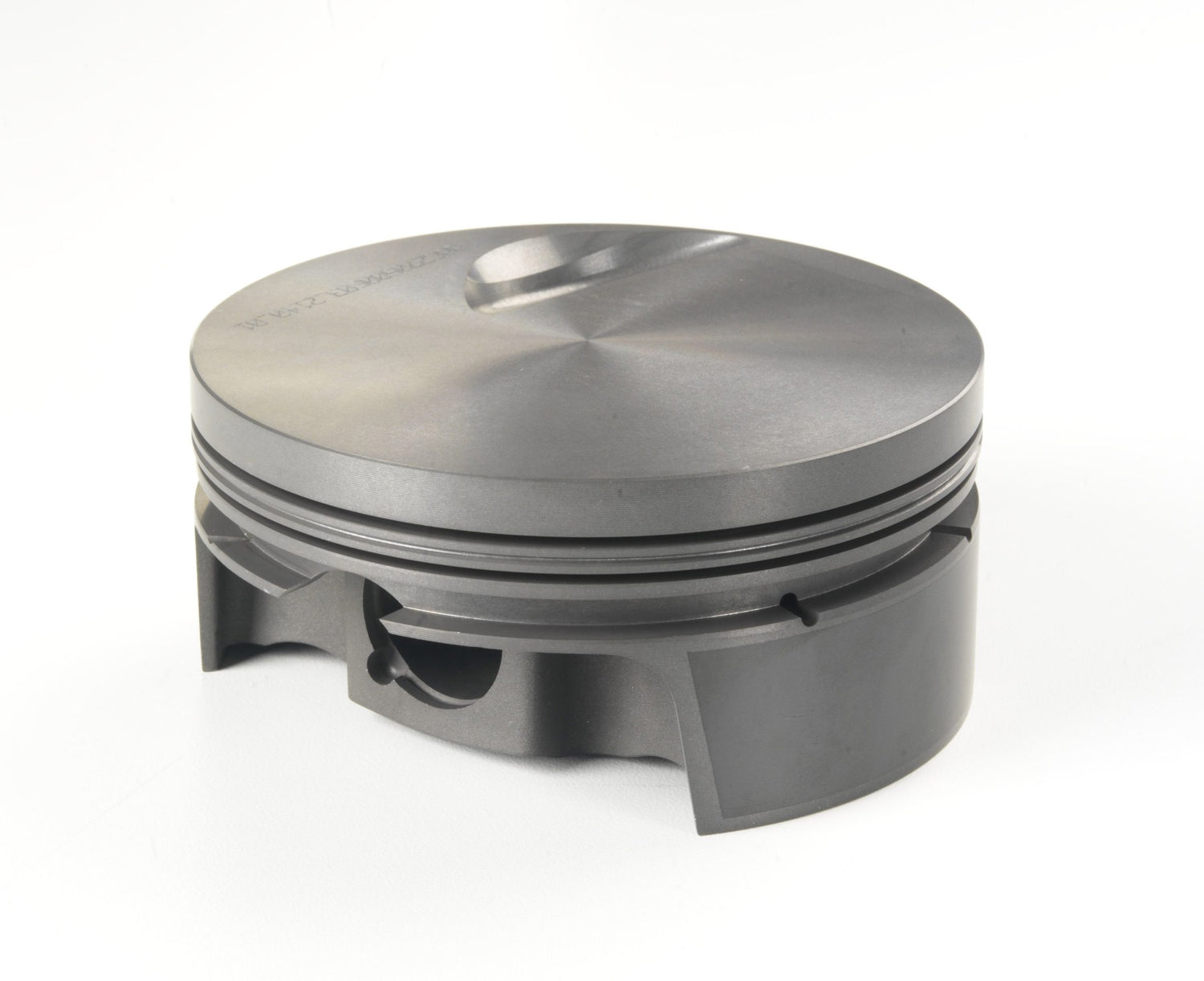

Mahle Motorsport 930077100-1 - Piston (each)
Piston (ea) - BIG BLOCK CHEVY 502 MARINE "DROP IN" REPLACEMENT
509cid 4.500 x 1.645CH, 4.000stroke,6.135rod,0.990pin,-3.0cc,661g,8.9CR, 4032, SINGLE PISTON
Piston Mass: 661g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 171g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Clip Style: Round Wire
Pin Wall Thickness: 0.22
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: N
Piston Style: Flattop, w/ INT valve relief
Piston Ring Thickness: 1/16, 1/16, 3/16
Piston Material: Forged, 4032
Package Quantity: Sold as a set of 1
OCR Thickness: 3/16
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1/16
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -3.0cc
UCR Thickness: 1/16
