Mahle Motorsport 930036295-1 - Mahle MS GM 6.6L Duramax 4.095in Bore 3.898in Stk 6.417in Rod 1.358 Pin -41.8cc 16.5 CR - Single
Mahle Motorsport | SKU:
DGJH-930036295-1
Sale price
$27099
Regular price
$28650
Unit price
/
Unavailable
$15.51 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930036295-1 - Mahle MS GM 6.6L Duramax 4.095in Bore 3.898in Stk 6.417in Rod 1.358 Pin -41.8cc 16.5 CR - Single

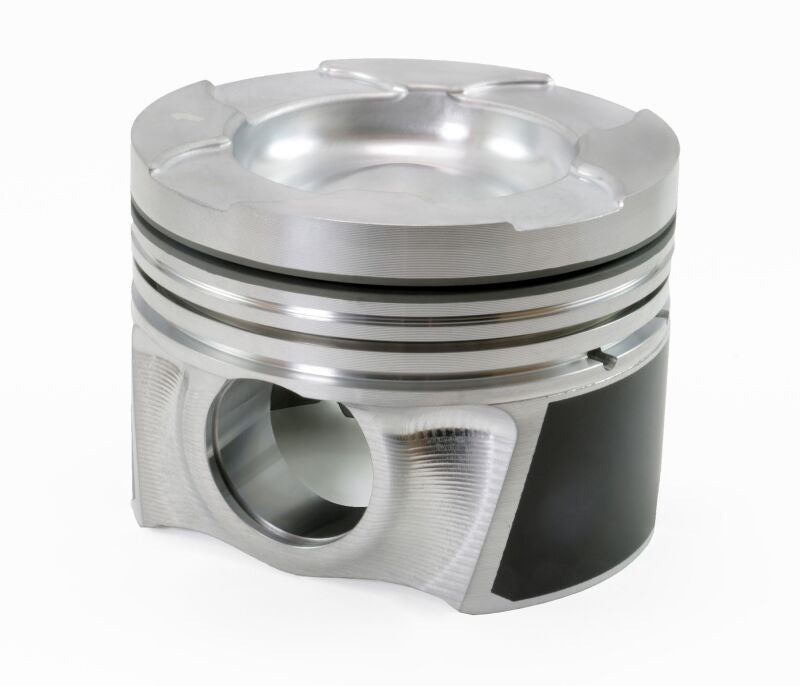

Piston (ea) - GM 6.6L Duramax Forged Aluminum Race Pistons
411cid 4.095 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-41.8cc,797g,16.6CR, M124P, SINGLE PISTON
Clip Style: Snap Ring
Pin Wall Thickness: 0.325
UCR Material: Stainless Steel
UCR Coating: CrN PVD
Rings Included: N
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1/16, 2.0mm, 3.0mm
Piston Material: Forged, M124P
Piston Mass: 797g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 410g
Pin Length: 77.5mm
Pin Diameter: 34.5mm
Package Quantity: Sold as a set of 1
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Gas Nitrided stainless steel
LCR Thickness: 2.0mm
LCR Material: Cast Iron
LCR Coating: Chrome
File Fit: Y
Crown Volume: -41.8cc
UCR Thickness: 1/16
