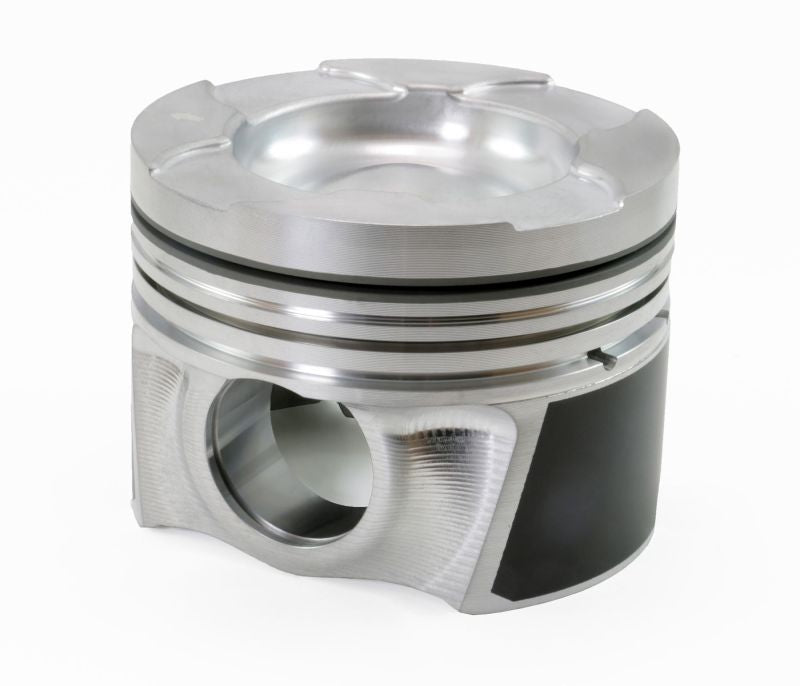

Mahle Motorsport 930036275 - Mahle MS Piston Set Duramax 4.075in Bore 3.898in Stk 6.417in Rod 1.358 Pin -41.8cc 16.5 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930036275
Sale price
$2,45699
Regular price
$2,81926
Unit price
/
Unavailable
$362.27 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930036275 - Mahle MS Piston Set Duramax 4.075in Bore 3.898in Stk 6.417in Rod 1.358 Pin -41.8cc 16.5 CR Set of 8
4.075bore,3.898stroke,6.417rod,1.956ch,1.358pin,-41.8cc,857g,16.5cr, M142P
GM 6.6L Duramax Forged Aluminum Race Pistons w/ 0.075" Deep Valve Pockets 407cid 4.075 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-41.8cc,785g,16.5CR, M124P.
Clip Style: Snap Ring
Clips Included: Yes
Coatings: Grafal plus Hard Anodized top ring groove
Crown Vol: -41.8cc
Package Qty: Sold as a set of 8
Pin Diameter: 1.358
Pin Length: 3.051
Pin Mass: 410g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 785g
Piston Material: Forged, M124P
Piston Ring Thickness: 1/16, 2.0mm, 3.0mm
Piston Style: Dish, w/ 4 valve reliefs
Rings Included: Yes
