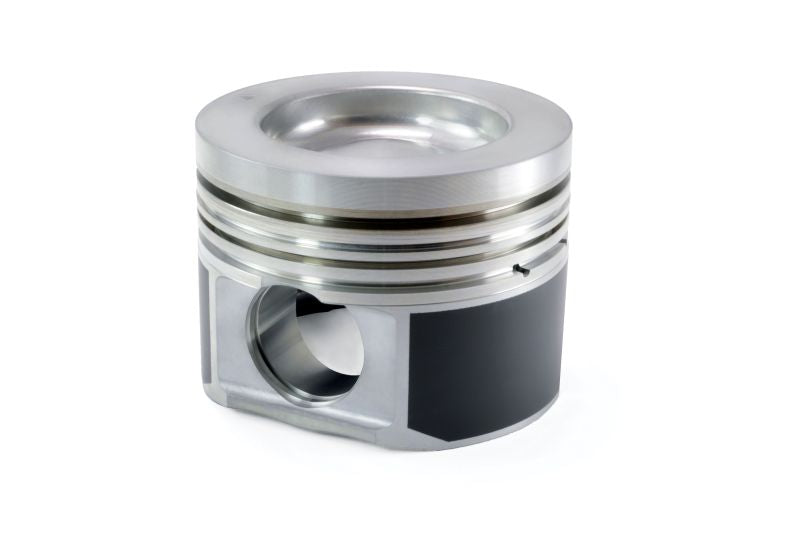

Mahle Motorsport 930036095 - Mahle MS Piston Set GM Duramax 6.6L 4.095in Bore 3.898in Stk 6.417in Rod -41.8cc 17:1 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930036095
Sale price
$1,51099
Regular price
$1,73396
Unit price
/
Unavailable
$222.97 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930036095 - Mahle MS Piston Set GM Duramax 6.6L 4.095in Bore 3.898in Stk 6.417in Rod -41.8cc 17:1 CR Set of 8
Piston - PowerPak - Flat Top - Cast - Dish - 4.095 Bore - 1.951 in Compression Height - 3.0 x 2.0 x 3.0 mm Ring Grooves - Plus 40.70 cc - GM Duramax - Set of 8
411cid 4.095 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-40.7cc,896g,17.0CR, M142
UCR Material: Stainless Steel
UCR Coating: CrN PVD
Rings Included: Y
Piston Style: Dish, w/ NO valve reliefs
Piston Ring Thickness: K.0mm, 2.0mm, 3.0mm
Piston Material: Cast, M142
Piston Mass: 896g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 410g
Pin Length: 77.5mm
Pin Diameter: 34.5mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Gas Nitrided stainless steel
LCR Thickness: 2.0mm
LCR Material: Cast Iron
LCR Coating: Chrome
File Fit: N
Crown Volume: -40.7cc
UCR Thickness: 3.0mm Keystone
Clip Style: Snap Ring
Pin Wall Thickness: 0.325
