Mahle Motorsport 930036095-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-930036095-1
Sale price
$16499
Regular price
$20114
Unit price
/
Unavailable
$36.15 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

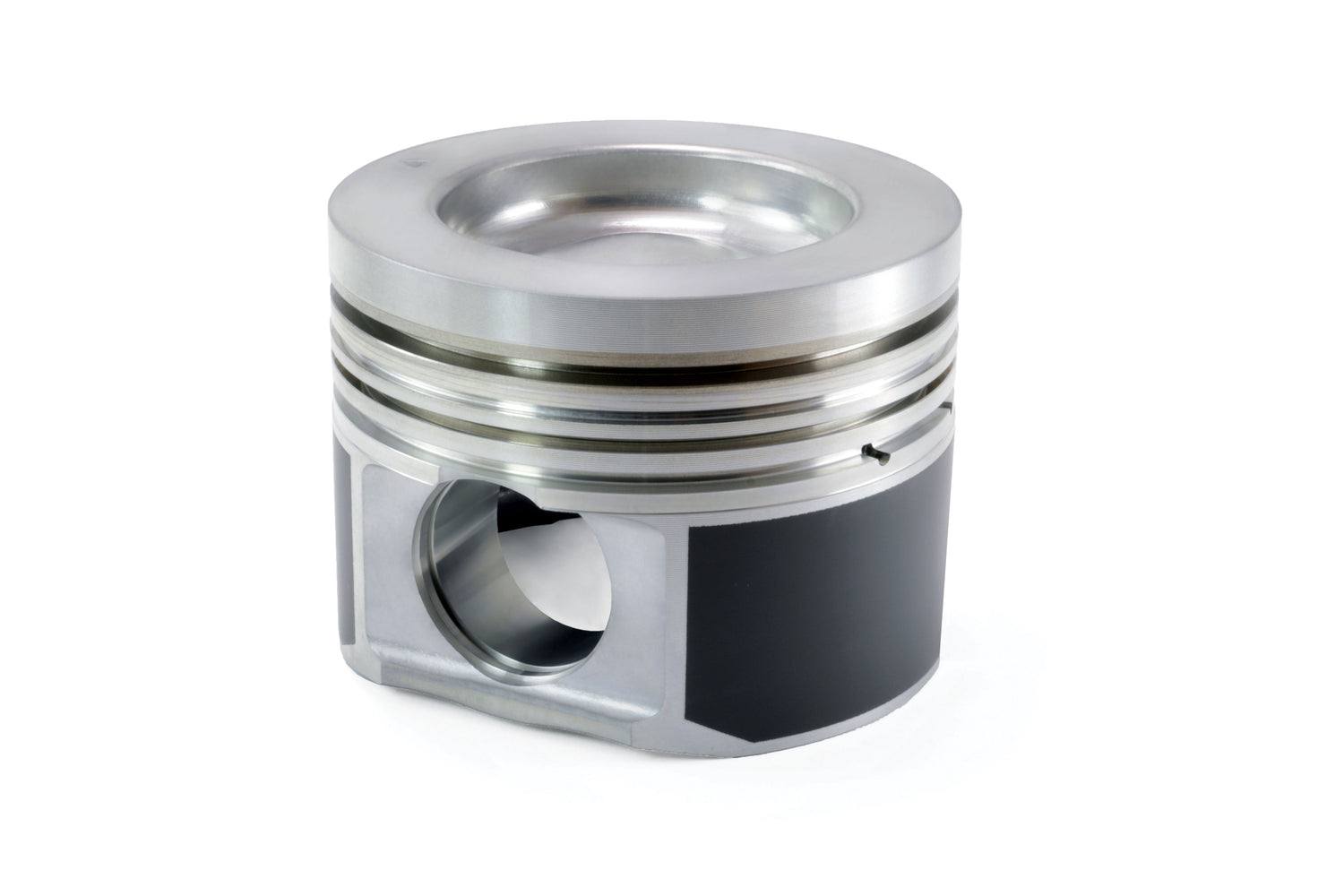

Mahle Motorsport 930036095-1 - Piston (each)
Piston (ea) - GM 6.6L Duramax Cast Performance Pistons
411cid 4.095 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-40.7cc,896g,17.0CR, M142, SINGLE PISTON
Clip Style: Snap Ring
Pin Wall Thickness: 0.325
UCR Material: Stainless Steel
UCR Coating: CrN PVD
Rings Included: N
Piston Style: Dish, w/ NO valve reliefs
Piston Ring Thickness: K.0mm, 2.0mm, 3.0mm
Piston Material: Cast, M142
Piston Mass: 896g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 410g
Pin Length: 77.5mm
Pin Diameter: 34.5mm
Package Quantity: Sold as a set of 1
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Gas Nitrided stainless steel
LCR Thickness: 2.0mm
LCR Material: Cast Iron
LCR Coating: Chrome
File Fit: N
Crown Volume: -40.7cc
UCR Thickness: 3.0mm Keystone
