Mahle Motorsport 930029855 - Mahle GM 6.6L Duramax 3.898in Stroke 6.417in Rod Perf Pistons w/0.075in Deep Valve Pockets(Set of 8)
Mahle Motorsport | SKU:
DGJH-930029855
Sale price
$1,72499
Regular price
$1,93252
Unit price
/
Unavailable
$207.53 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

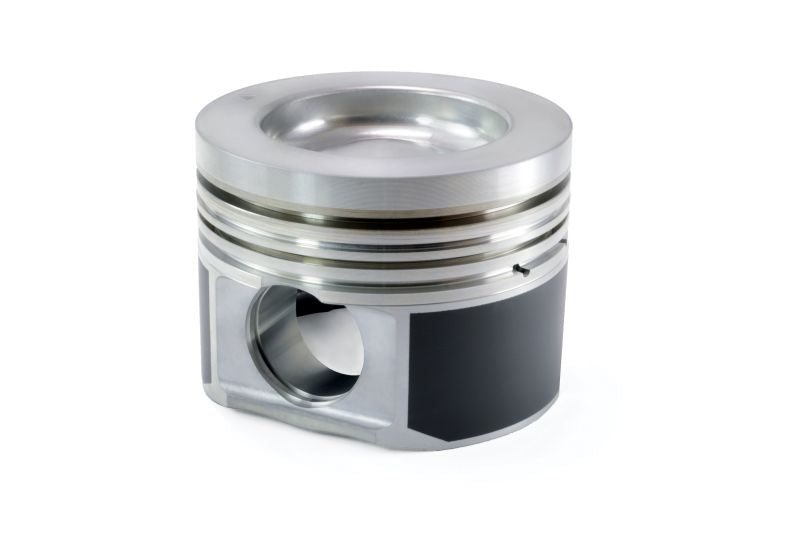

Mahle Motorsport 930029855 - Mahle GM 6.6L Duramax 3.898in Stroke 6.417in Rod Perf Pistons w/0.075in Deep Valve Pockets(Set of 8)
Piston (set) - GM 6.6L Duramax Cast Performance Pistons
403cid 4.055 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-41.8cc,861g,16.3CR, M142
File Fit: N
Crown Volume: -41.8cc
UCR Thickness: 3.0mm Keystone
Clip Style: Snap Ring
Pin Wall Thickness: 0.325
UCR Material: Stainless Steel
UCR Coating: CrN PVD
Rings Included: Y
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: K.0mm, 2.0mm, 3.0mm
Piston Material: Cast, M142
Piston Mass: 861g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 410g
Pin Length: 77.5mm
Pin Diameter: 34.5mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Gas Nitrided stainless steel
LCR Thickness: 2.0mm
LCR Material: Cast Iron
LCR Coating: Chrome
