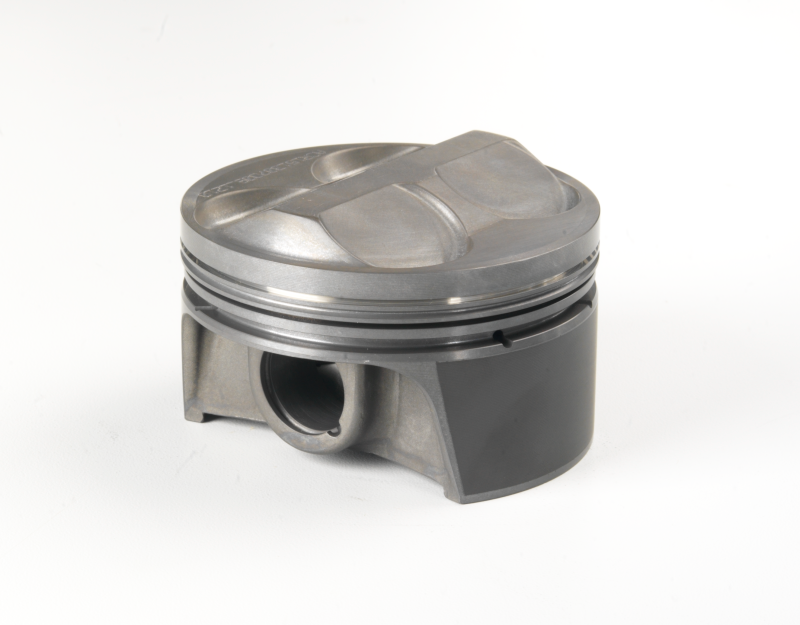

Mahle Motorsport 930024125 - Mahle MS Piston Set K24 87.00mm Bore 99mm Stroke 139mm Rod 22mm Pin 4cc 12.3 CR Set of 4
Mahle Motorsport | SKU:
DGJH-930024125
Sale price
$58199
Regular price
$63110
Unit price
/
Unavailable
$49.11 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930024125 - Mahle MS Piston Set K24 87.00mm Bore 99mm Stroke 139mm Rod 22mm Pin 4cc 12.3 CR Set of 4
Piston (set) - HONDA / ACURA K24 2.4L
87.00mm x 30mm CH, 99.0mm stroke,152.0mm rod,22mm pin,4.3cc,320g,12.4CR, 4032
OCR Tension: Standard
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: 4.3cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.2mm
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
OCR Thickness: 2.8mm
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 4032
Piston Mass: 320g
Pins Included: Y
Pin Wall Thickness: 0.197
Pin Style: Floating
Pin Material: Steel
Pin Mass: 101g
Pin Length: 52.0mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 4
OCR Material: Chrome plated stainless steel
