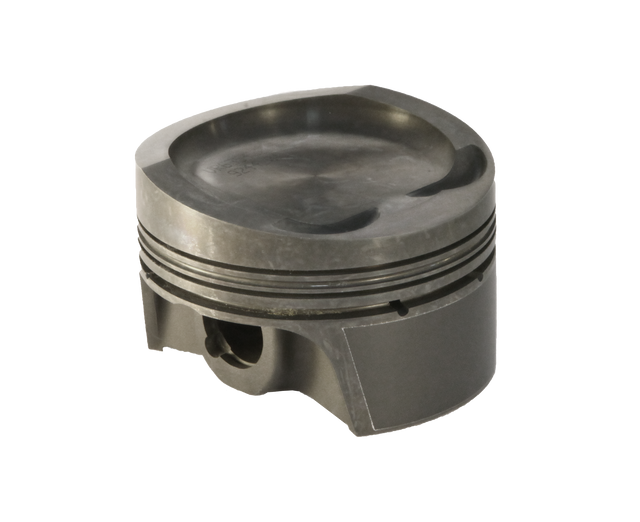

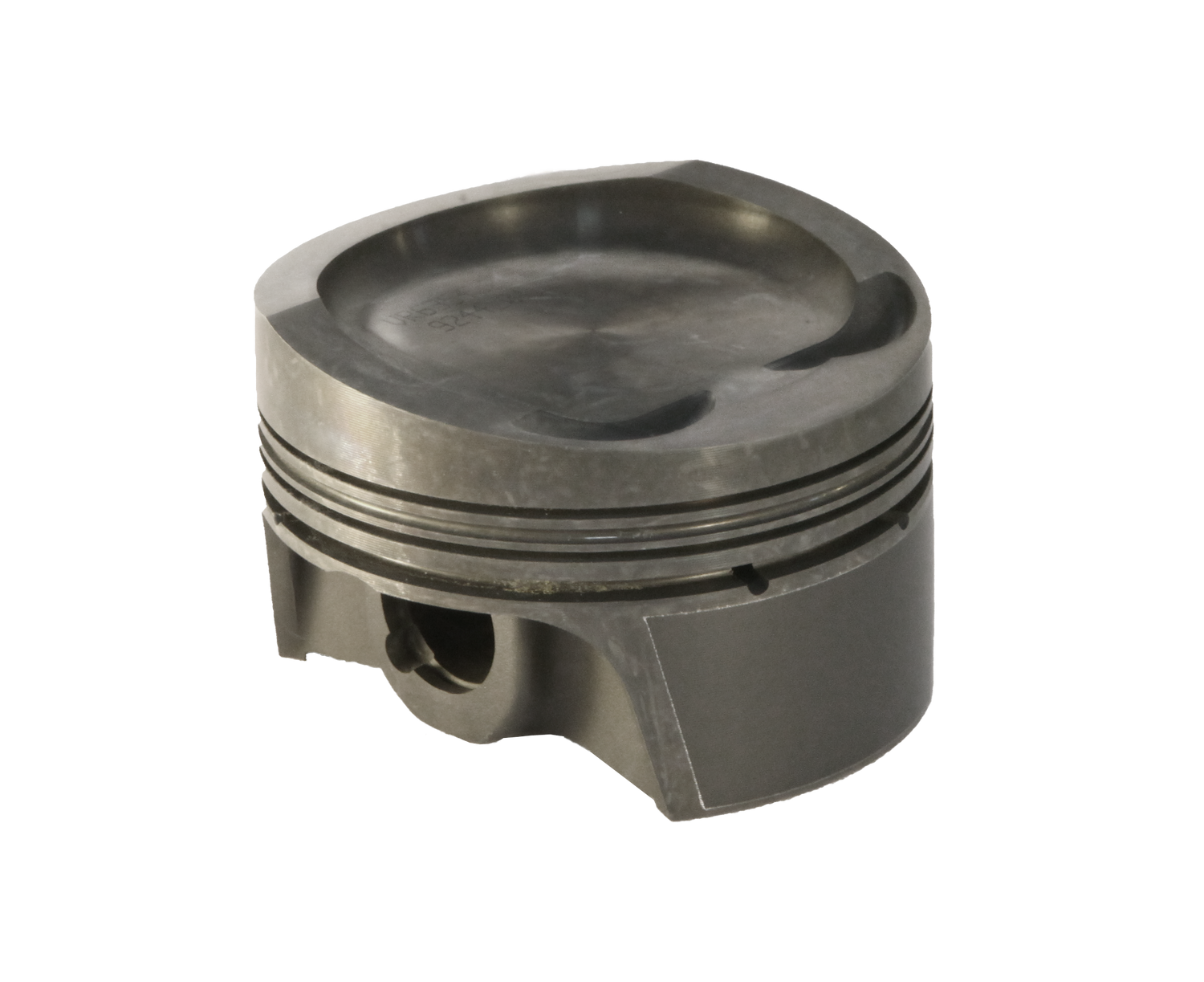

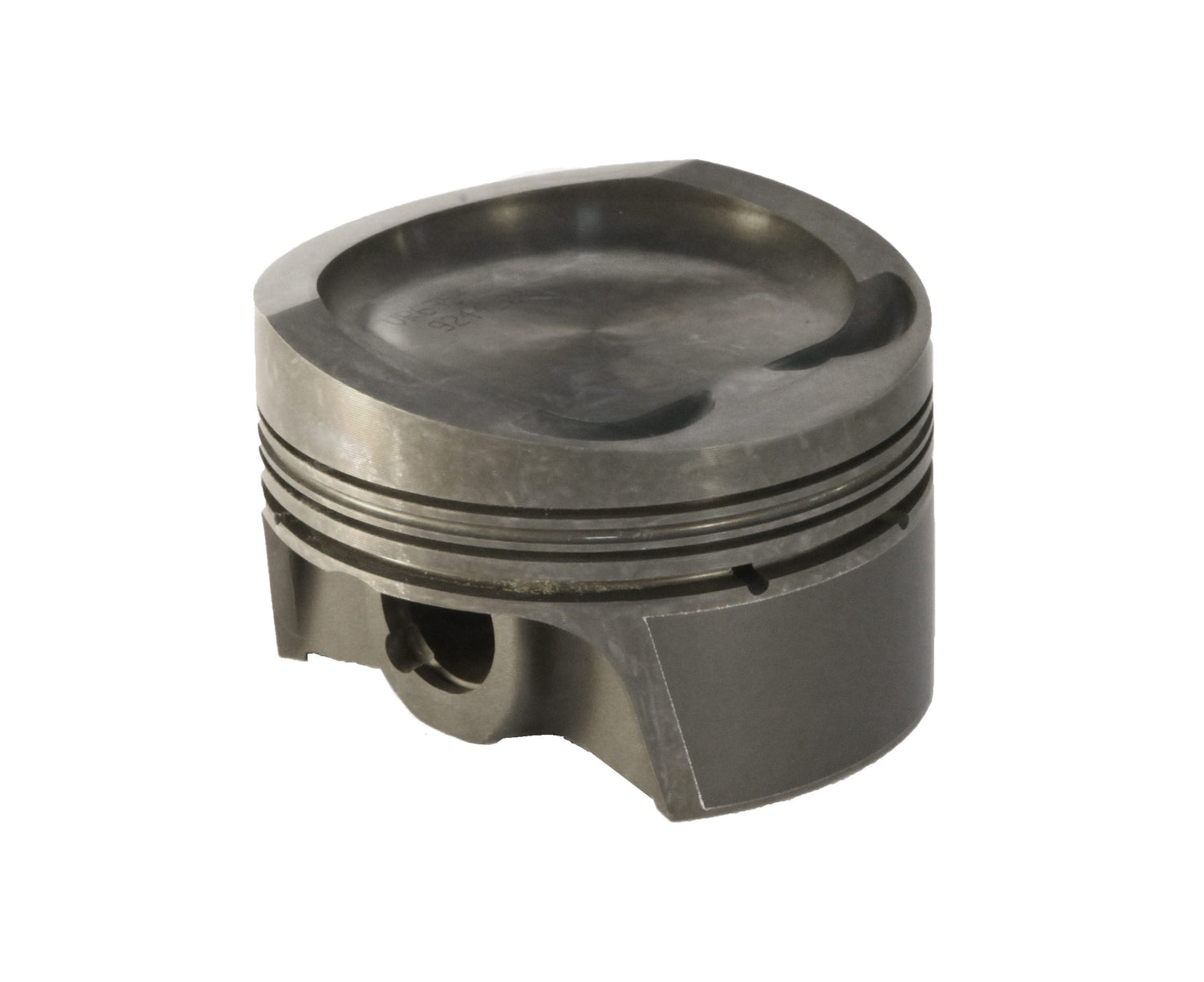

Mahle Motorsport 930016626-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-930016626-1
Sale price
$13099
Regular price
$15895
Unit price
/
Unavailable
$27.96 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930016626-1 - Piston (each)
Piston (ea) - VOLKSWAGEN VR6 3.2L 4V
84.50mm x 34.7mm CH, 95.9mm stroke,164mm rod,20mm pin,-22.5cc,353g,9.0CR, 2618, SINGLE PISTON
Pins Included: N
File Fit: N
Pin Style: Floating
Pin Material: Steel
Pin Mass: 84g
Pin Length: 50.8mm
Pin Diameter: 20.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
Crown Volume: -22.5cc
Piston Mass: 353g
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 1.2mm
UCR Material: Steel
UCR Coating: CrN PVD
Rings Included: N
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 2618
Pin Wall Thickness: 0.17
