Mahle Motorsport 929986135 - Mahle MS Piston Set Hon F20C 87.25mm Bore 84mm Stroke 153mm Rod 23mm Pin 9cc 12.5 CR Set of 4
Mahle Motorsport | SKU:
DGJH-929986135
Sale price
$71799
Regular price
$80541
Unit price
/
Unavailable
$87.42 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

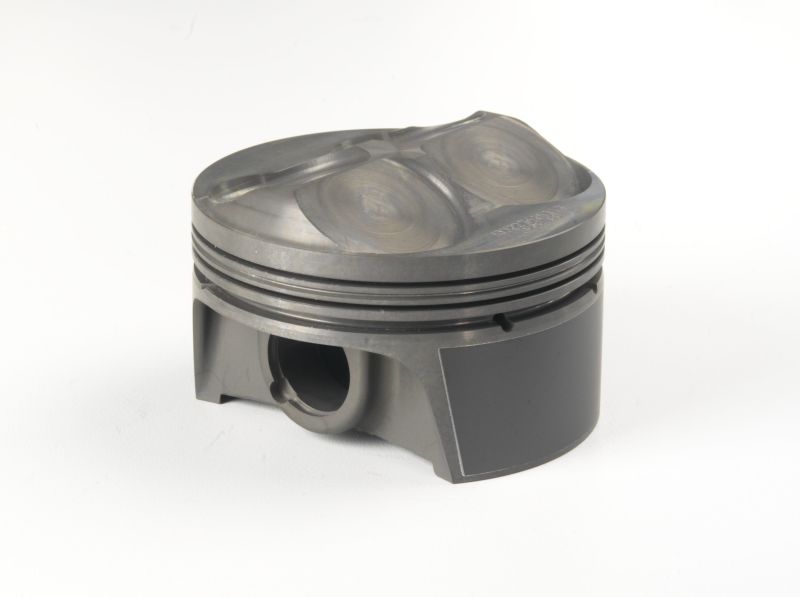

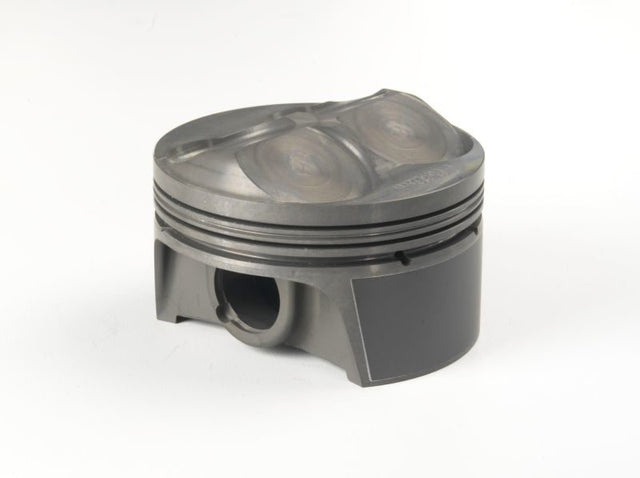

Mahle Motorsport 929986135 - Mahle MS Piston Set Hon F20C 87.25mm Bore 84mm Stroke 153mm Rod 23mm Pin 9cc 12.5 CR Set of 4
Piston (set) - HONDA S2000 F20C 2.0L GOLD SERIES
87.25mm x 30mm CH, 84.0mm stroke,153mm rod,23mm pin,9.0cc,334g,12.5CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 4032
Piston Mass: 334g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 109g
Pin Length: 50.0mm
Pin Diameter: 23.0mm
Package Quantity: Sold as a set of 4
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: 9.0cc
UCR Thickness: 1.2mm
