Mahle Motorsport 929962550 - Mahle MS Piston Set BBM 505ci 4.350in Bore 4.25in Stroke 7.1in Rod 0.990 Pin -8cc 11.5 CR Set of 8
Mahle Motorsport | SKU:
DGJH-929962550
Sale price
$77899
Regular price
$87797
Unit price
/
Unavailable
$98.98 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

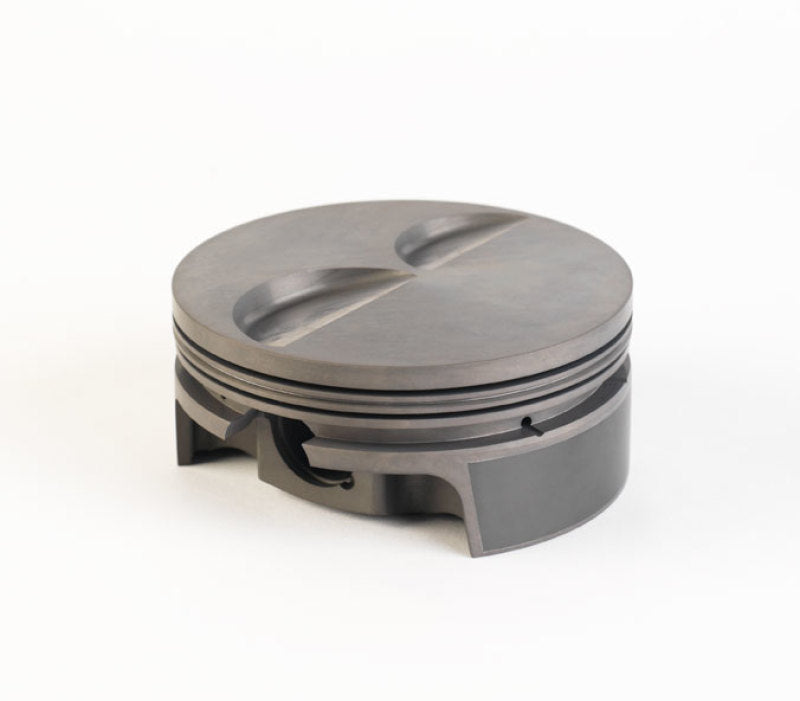

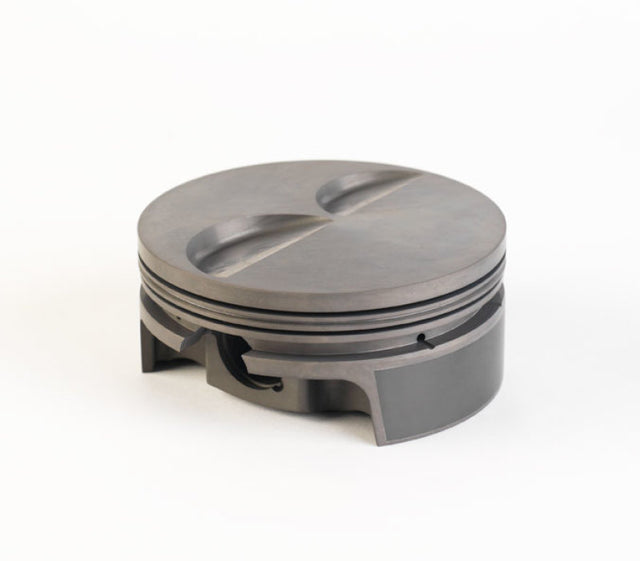

Mahle Motorsport 929962550 - Mahle MS Piston Set BBM 505ci 4.350in Bore 4.25in Stroke 7.1in Rod 0.990 Pin -8cc 11.5 CR Set of 8
Piston and Ring - PowerPak - Forged - Flat Top - 4.350 in Bore - 1.475 in Compression Height - 1.5 x 1.5 x 3.0 mm Ring Groove - Minus 8.1 cc - Big Block Chevy - Kit
505cid 4.350 x 1.475CH, 4.250stroke,7.100rod,0.990pin,-8.1cc,519g,11.6CR, 4032
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -8.1cc
UCR Thickness: 1.5mm
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 4032
Piston Mass: 519g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
