Mahle Motorsport 929908801 - Mahle MS Piston Set BBC 632ci 4.600in Bore 4.75in Stroke 6.66in Rod 0.990 Pin -3cc 10.8 CR Set of 8
Mahle Motorsport | SKU:
DGJH-929908801
Sale price
$81199
Regular price
$89250
Unit price
/
Unavailable
$80.51 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

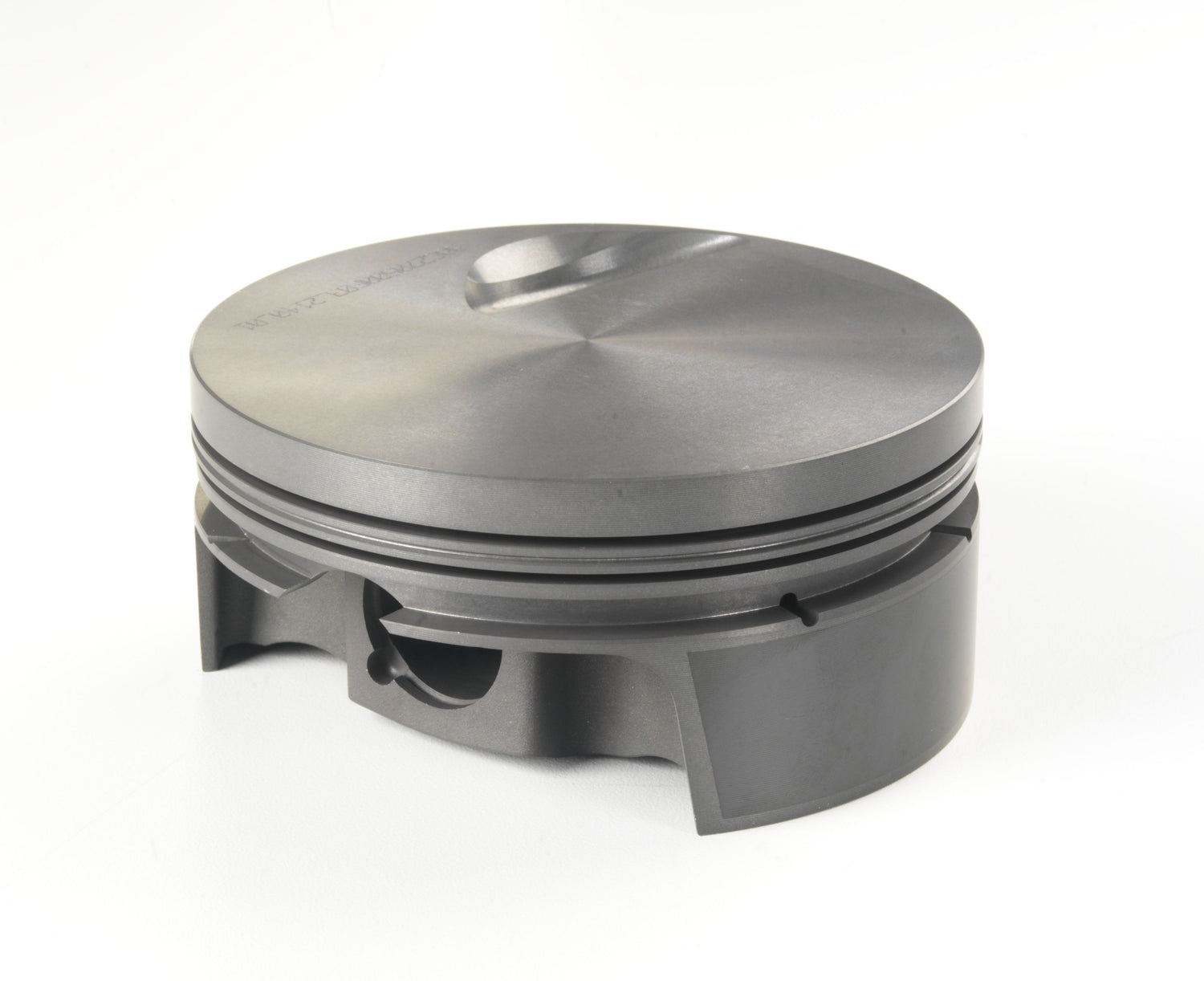

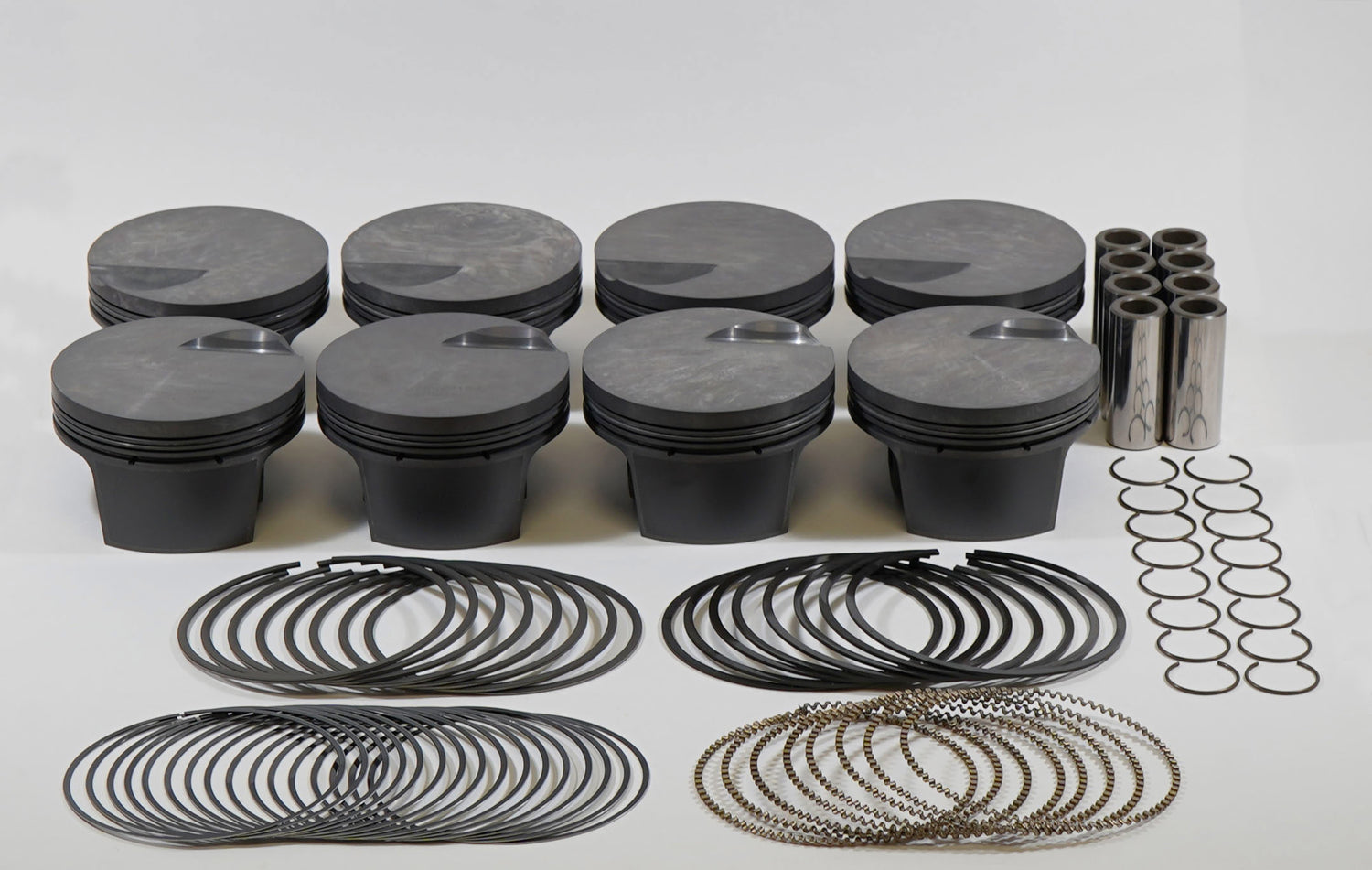

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 929908801 - Mahle MS Piston Set BBC 632ci 4.600in Bore 4.75in Stroke 6.66in Rod 0.990 Pin -3cc 10.8 CR Set of 8
Piston (set) - BIG BLOCK CHEVY FLAT TOP (STD DECK 9.800)
598cid 4.600 x 1.160RCH, 4.500stroke,6.385rod,0.990pin,-3.4cc,519g,10.3CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
Piston Style: Flattop, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 4032
Piston Mass: 519g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -3.4cc
UCR Thickness: 1.5mm
