Mahle Motorsport 929907280 - Mahle MS Piston Set BBC 503ci 4.28in Bore 4.375in Stroke 6.385in Rod .990 Pin 18cc 10.4 CR Set of 8
Mahle Motorsport | SKU:
DGJH-929907280
Sale price
$85799
Regular price
$96250
Unit price
/
Unavailable
$104.51 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

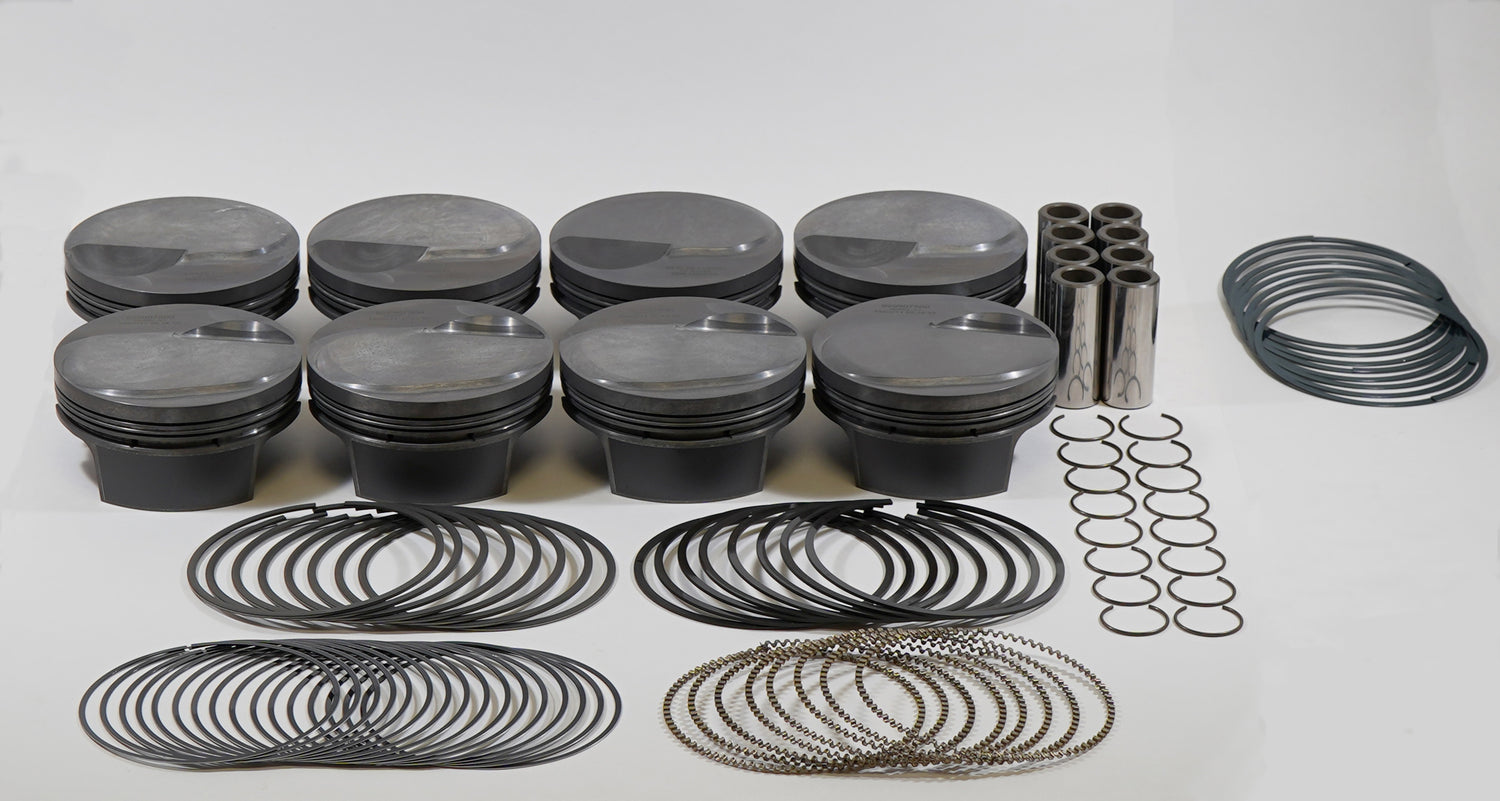

Mahle Motorsport 929907280 - Mahle MS Piston Set BBC 503ci 4.28in Bore 4.375in Stroke 6.385in Rod .990 Pin 18cc 10.4 CR Set of 8

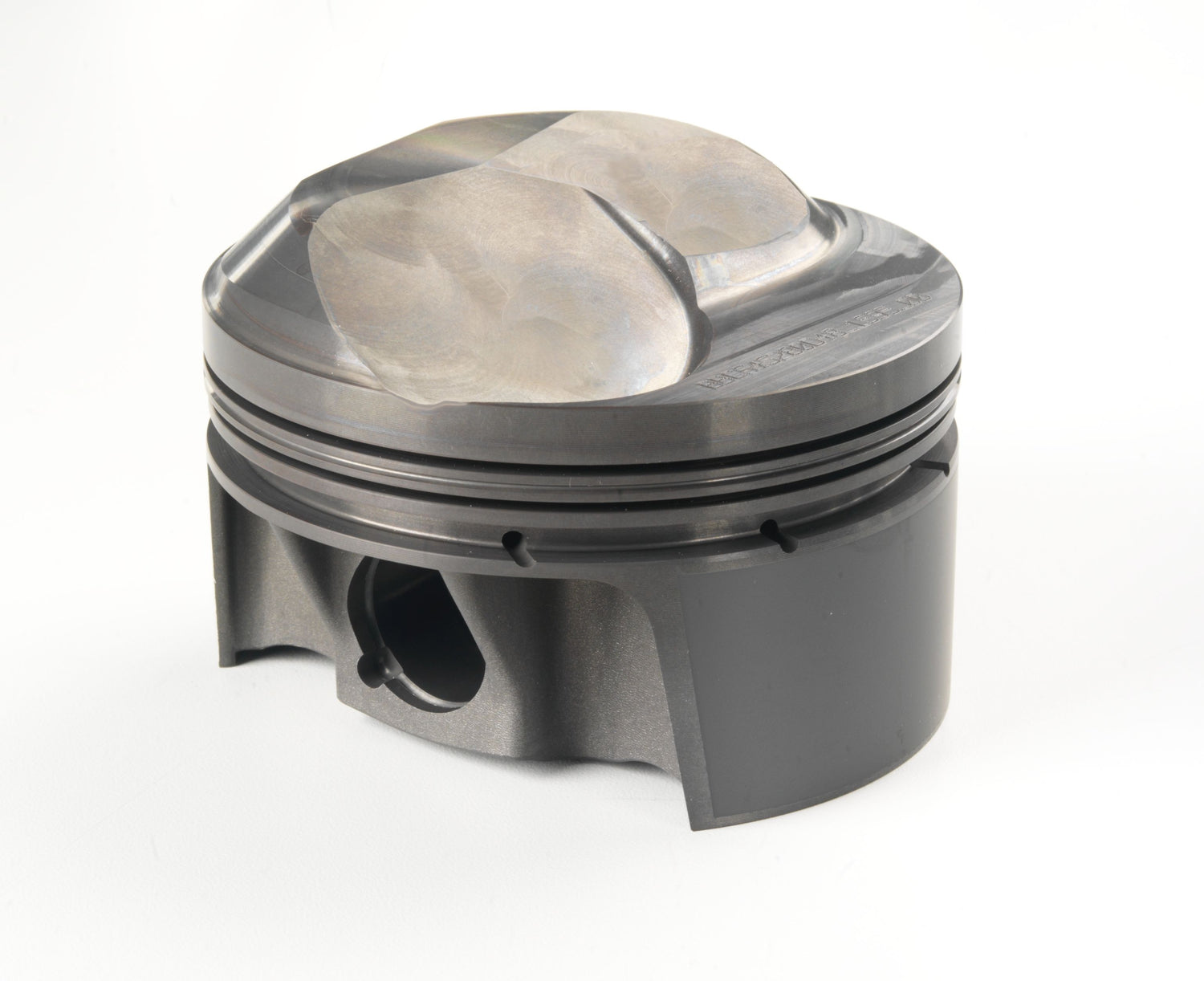

Piston (set) - BIG BLOCK CHEVY DOME (STD DECK 9.800)
504cid 4.280 x 1.215RCH, 4.375stroke,6.385rod,0.990pin,18.0cc,518g,10.4CR, 4032
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 4032
Piston Mass: 518g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 18.0cc
UCR Thickness: 1.5mm
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
