Mahle Motorsport 929907180 - Mahle MS Piston Set BBC 489ci 4.280in Bore 4.25in Stroke 6.385in Rod .990 Pin 18cc 10.1 CR Set of 8
Mahle Motorsport | SKU:
DGJH-929907180
Sale price
$85799
Regular price
$96250
Unit price
/
Unavailable
$104.51 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

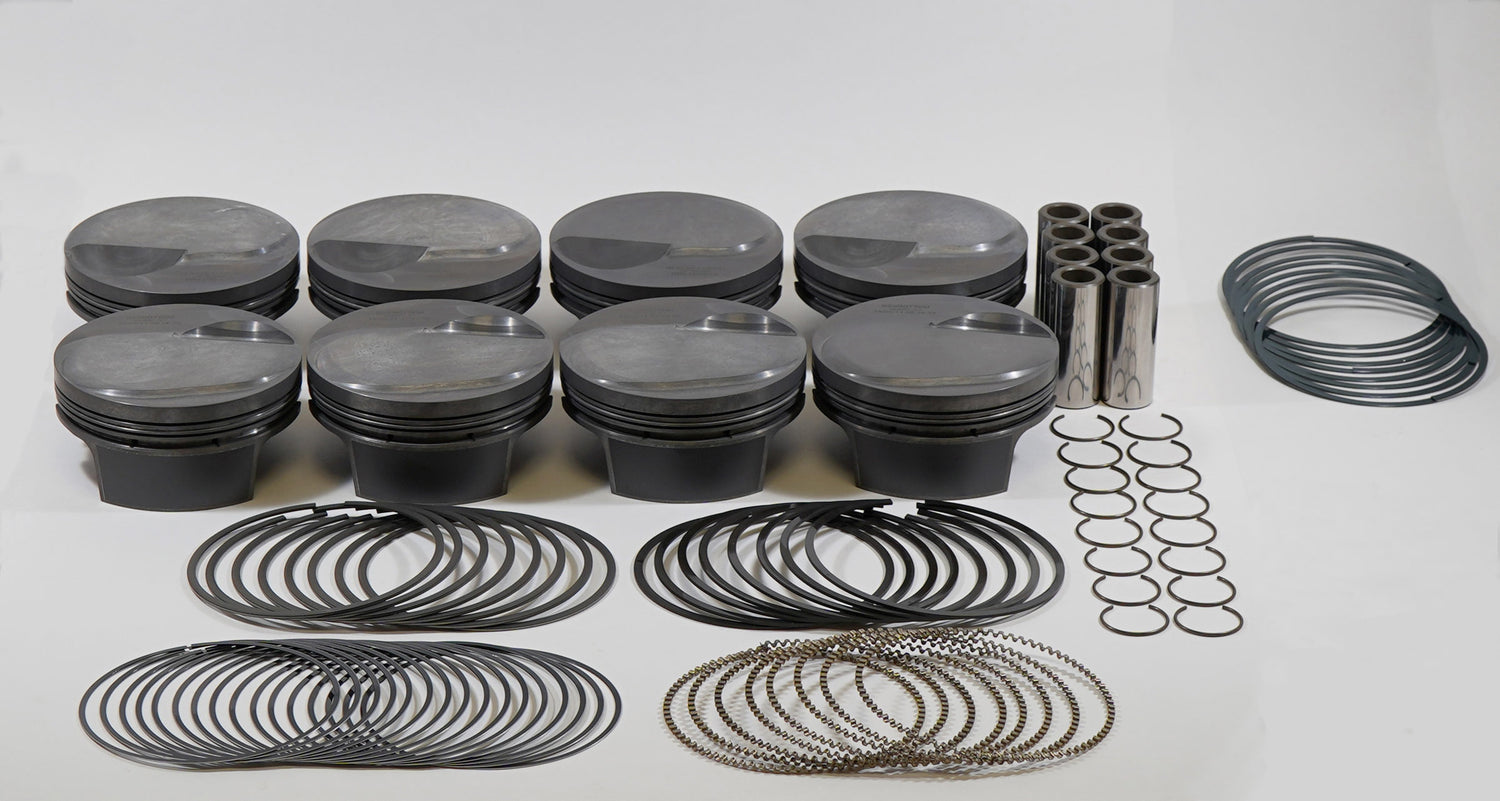

Mahle Motorsport 929907180 - Mahle MS Piston Set BBC 489ci 4.280in Bore 4.25in Stroke 6.385in Rod .990 Pin 18cc 10.1 CR Set of 8

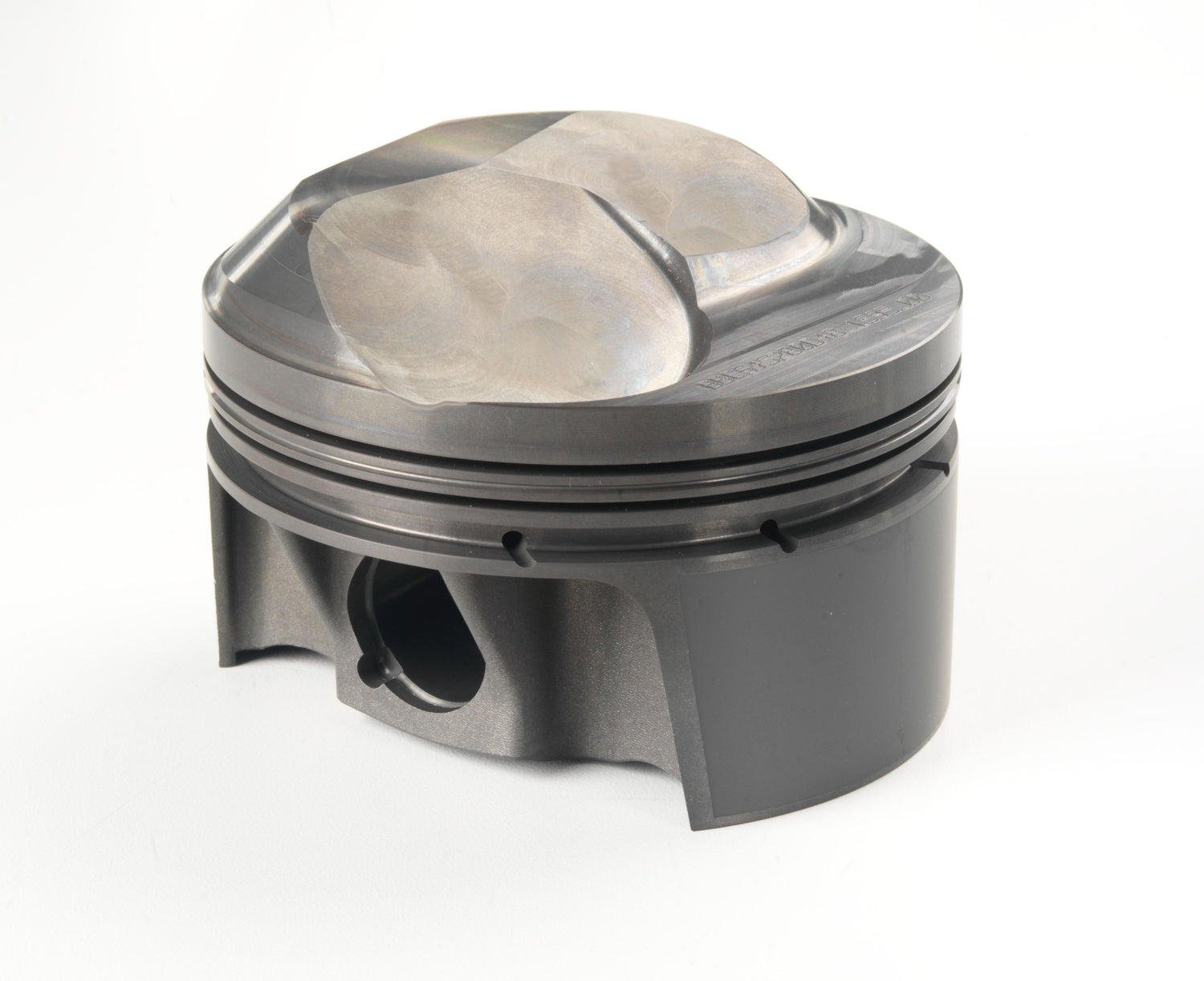

Piston and Ring - PowerPak - Forged - Dome - 4.280 in Bore - 1.270 in Compression Height - 1.5 x 1.5 x 3.0 mm Ring Grooves - Minus 18.00 cc - Big Block Chevy - Kit
489cid 4.280 x 1.270RCH, 4.250stroke,6.385rod,0.990pin,18.0cc,527g,10.2CR, 4032
OCR Material: Chrome plated stainless steel
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 18.0cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.5mm
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
OCR Tension: Standard
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 4032
Piston Mass: 527g
Pins Included: Y
Pin Wall Thickness: 0.18
Pin Style: Floating
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
LCR Thickness: 1.5mm
