Mahle Motorsport 929906750 - Mahle MS Piston Set BBC 505ci 4.350in Bore 4.25in Stroke 6.385in Rod .990 Pin 43cc 13.2 CR Set of 8
Mahle Motorsport | SKU:
DGJH-929906750
Sale price
$88199
Regular price
$98916
Unit price
/
Unavailable
$107.17 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

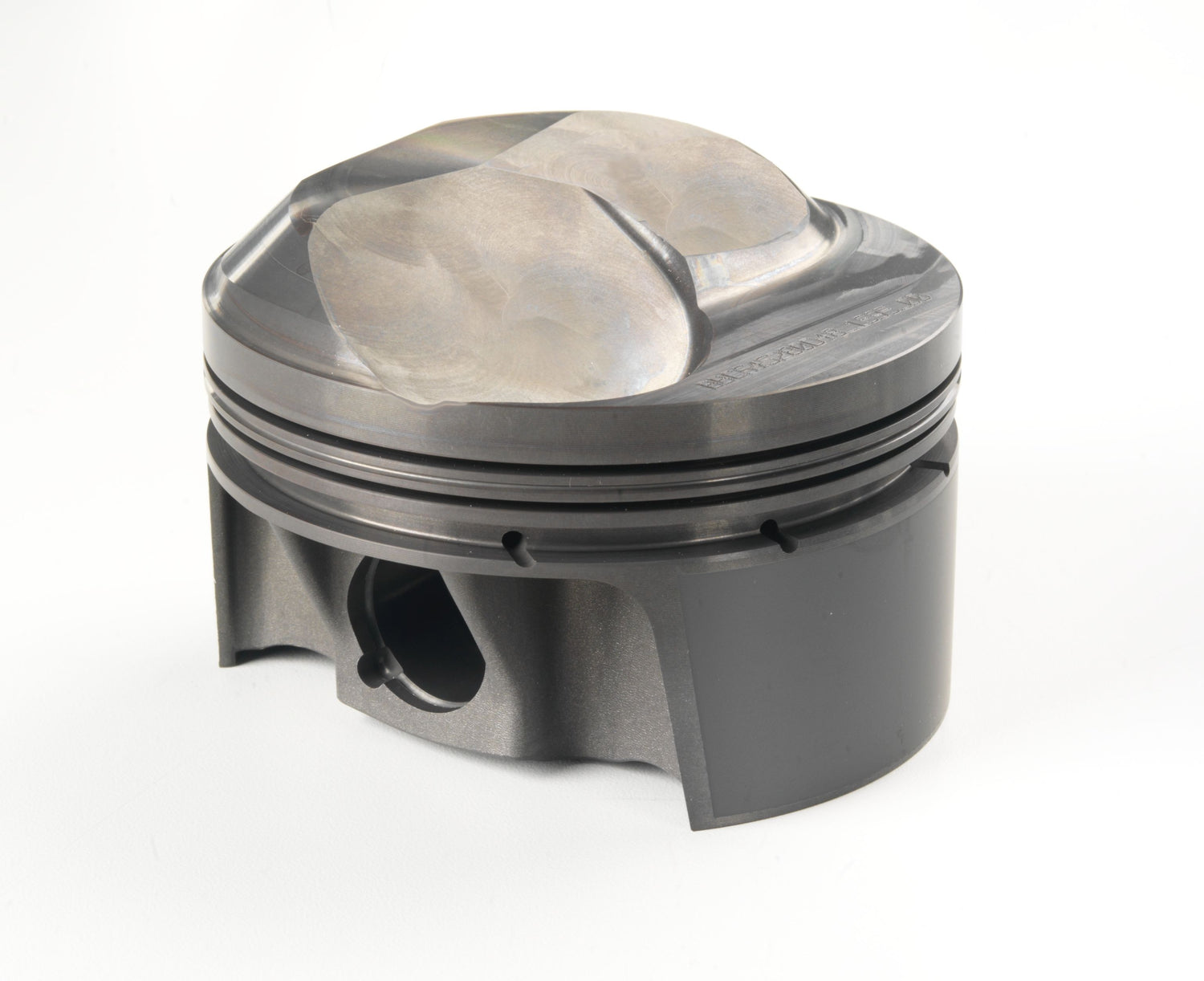

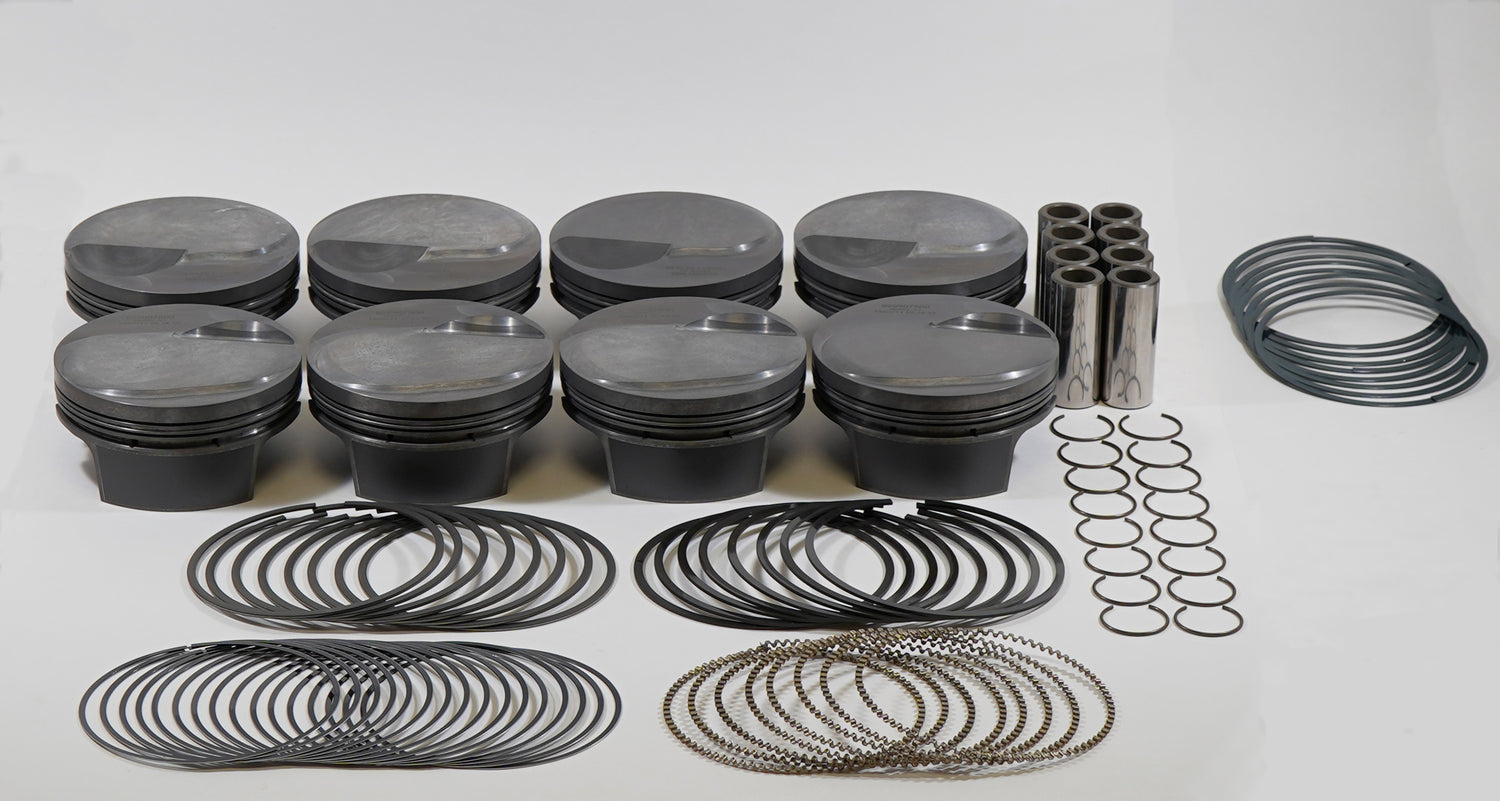

Mahle Motorsport 929906750 - Mahle MS Piston Set BBC 505ci 4.350in Bore 4.25in Stroke 6.385in Rod .990 Pin 43cc 13.2 CR Set of 8
Piston (set) - BIG BLOCK CHEVY DOME (STD DECK 9.800)
505cid 4.350 x 1.270RCH, 4.250stroke,6.385rod,0.990pin,43.0cc,613g,13.2CR, 2618
File Fit: Y
Piston Material: Forged, 2618
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.5mm
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Mass: 613g
LCR Coating: Phosphate
Pins Included: Y
Pin Wall Thickness: 0.18
Pin Style: Floating
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast iron
Crown Volume: 43.0cc
