Mahle Motorsport 929870180-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-929870180-1
Sale price
$7699
Regular price
$9358
Unit price
/
Unavailable
$16.59 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

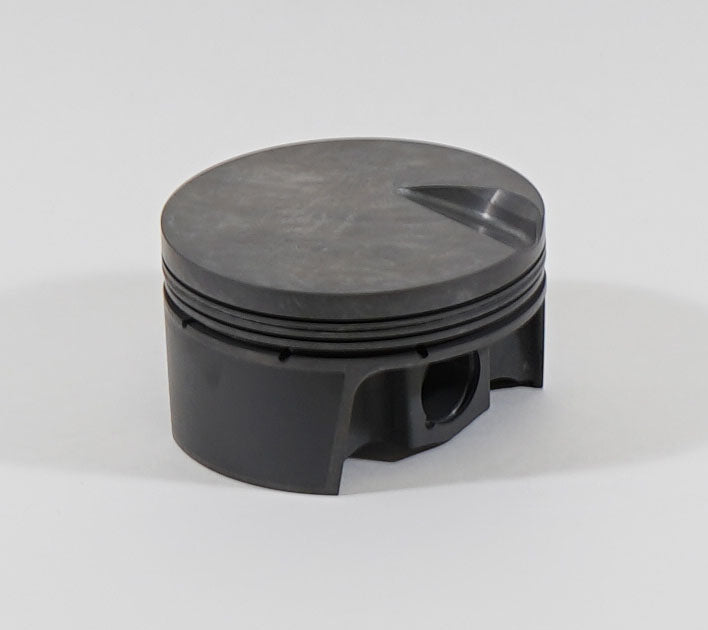

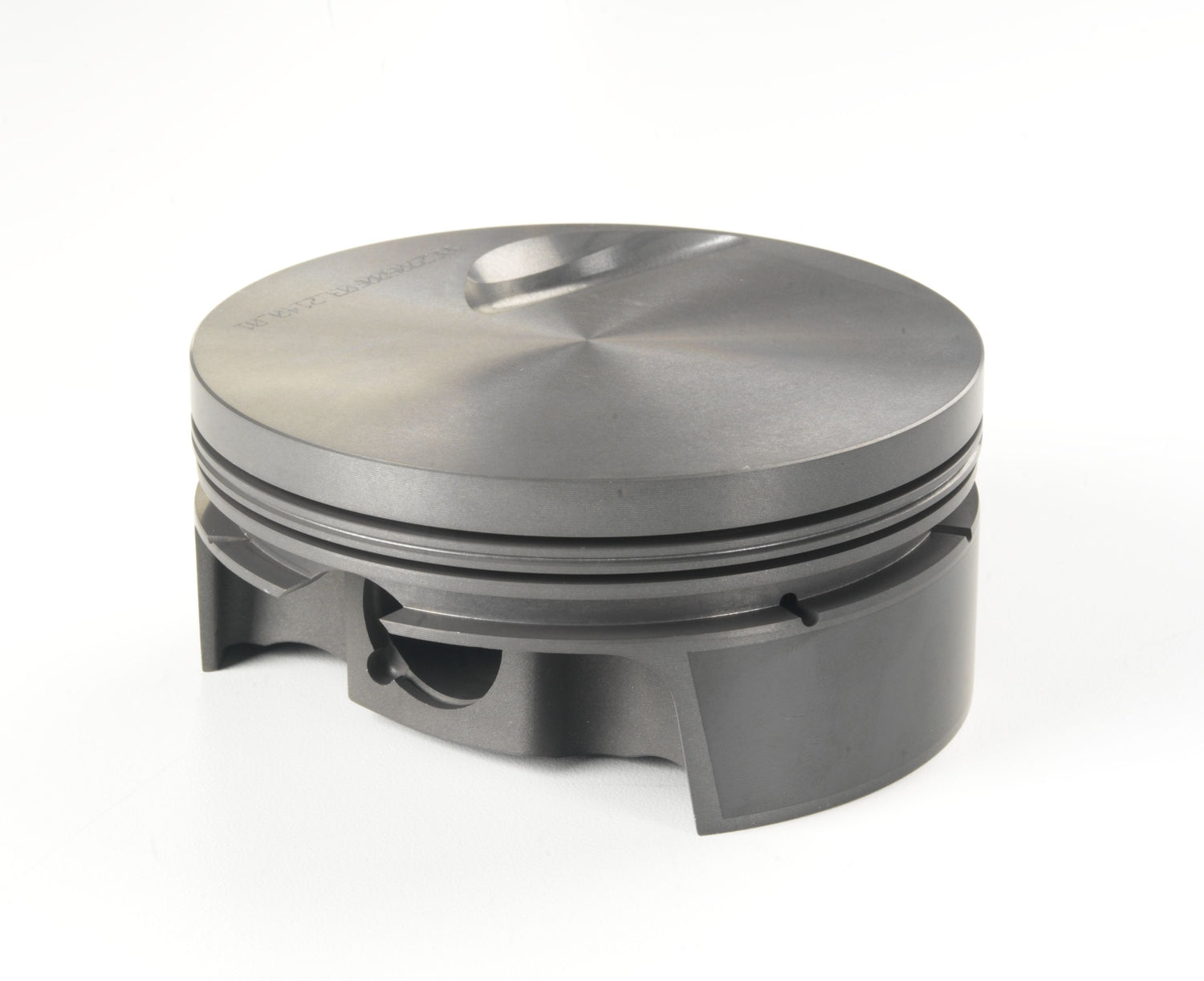

Mahle Motorsport 929870180-1 - Piston (each)
Piston (ea) - BIG BLOCK CHEVY FLAT TOP (STD DECK 9.800)
460cid 4.280 x 1.645CH, 4.000stroke,6.135rod,0.990pin,-3.4cc,528g,8.2CR, 4032, SINGLE PISTON
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 1
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -3.4cc
UCR Thickness: 1.5mm
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: N
Piston Style: Flattop, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 4032
Piston Mass: 528g
Pins Included: N
