Mahle Motorsport 929170986-1 - Mahle MS Honda/Acura K20 86mm Bore 86mm Stroke 139mm Rod 22mm Pin 12cc 12.7 CR - Single Piston
Mahle Motorsport | SKU:
DGJH-929170986-1
Sale price
$12999
Regular price
$14653
Unit price
/
Unavailable
$16.54 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

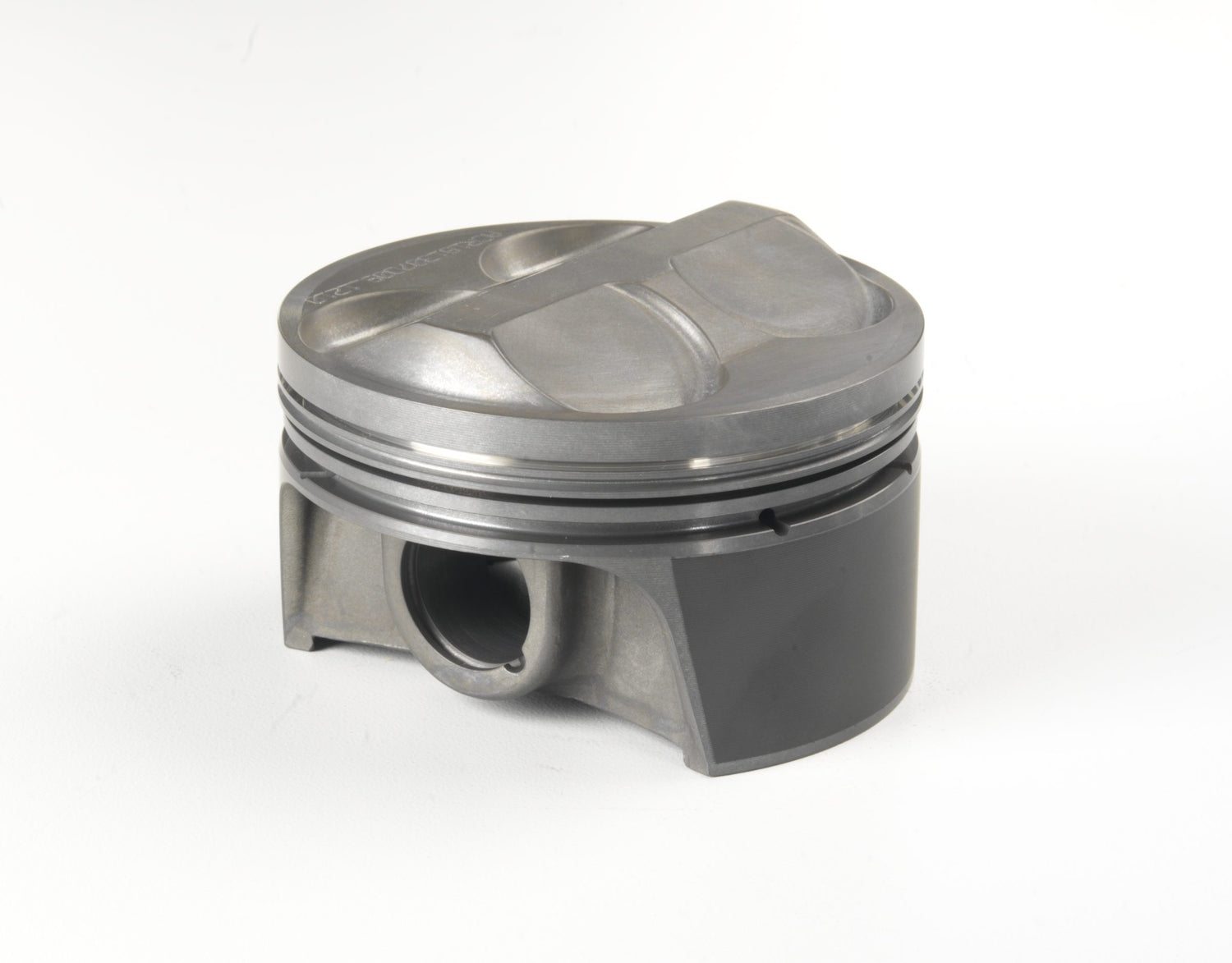

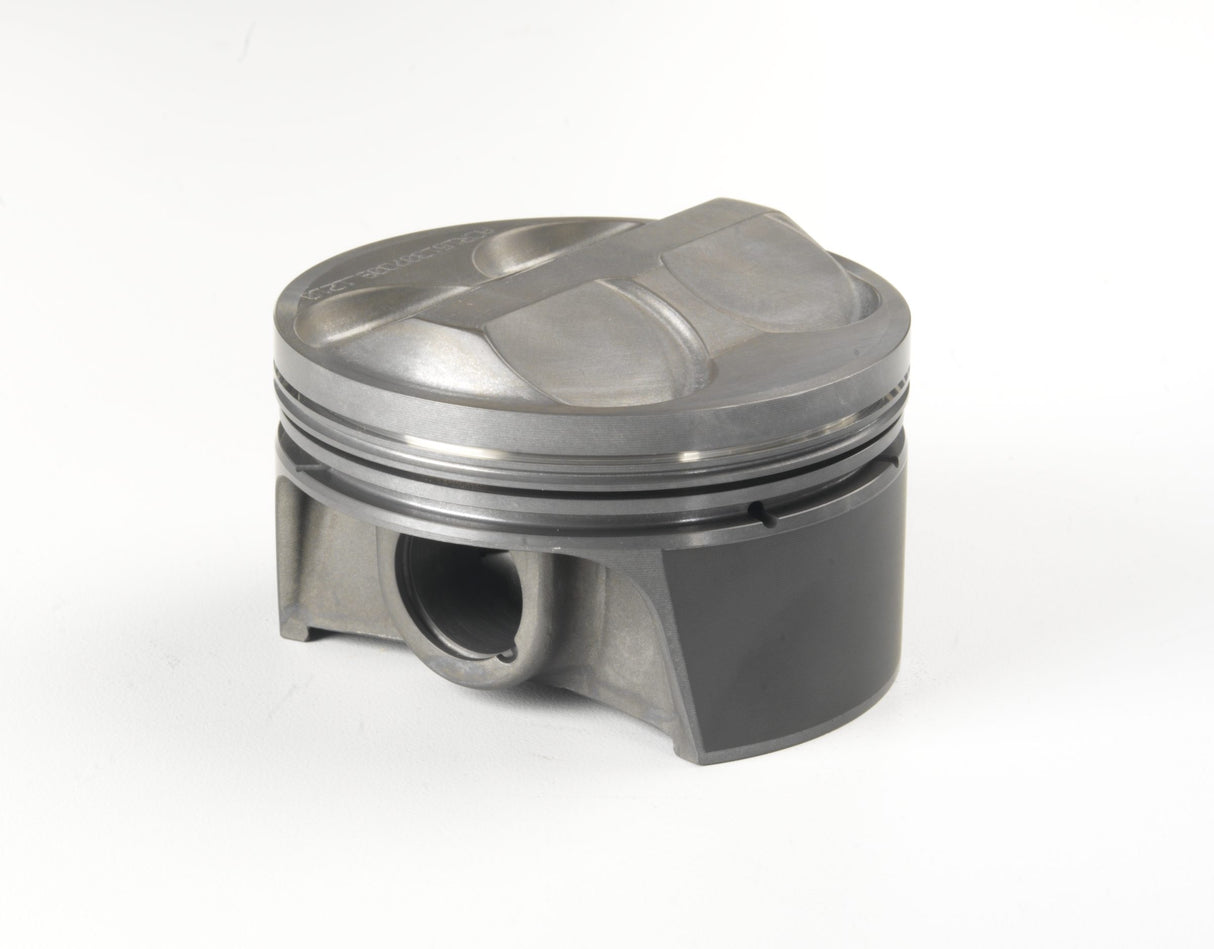

Mahle Motorsport 929170986-1 - Mahle MS Honda/Acura K20 86mm Bore 86mm Stroke 139mm Rod 22mm Pin 12cc 12.7 CR - Single Piston
Piston (ea) - HONDA / ACURA RSX K20 2.0L
86.00mm x 30mm CH, 86mm stroke,139mm rod,22mm pin,11.8cc,329g,12.6CR, 4032, SINGLE PISTON
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: 11.8cc
UCR Thickness: 1.2mm
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: N
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 4032
Piston Mass: 329g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 101g
Pin Length: 52.0mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
