Mahle Motorsport 929114709-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-929114709-1
Sale price
$12999
Regular price
$15738
Unit price
/
Unavailable
$27.39 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

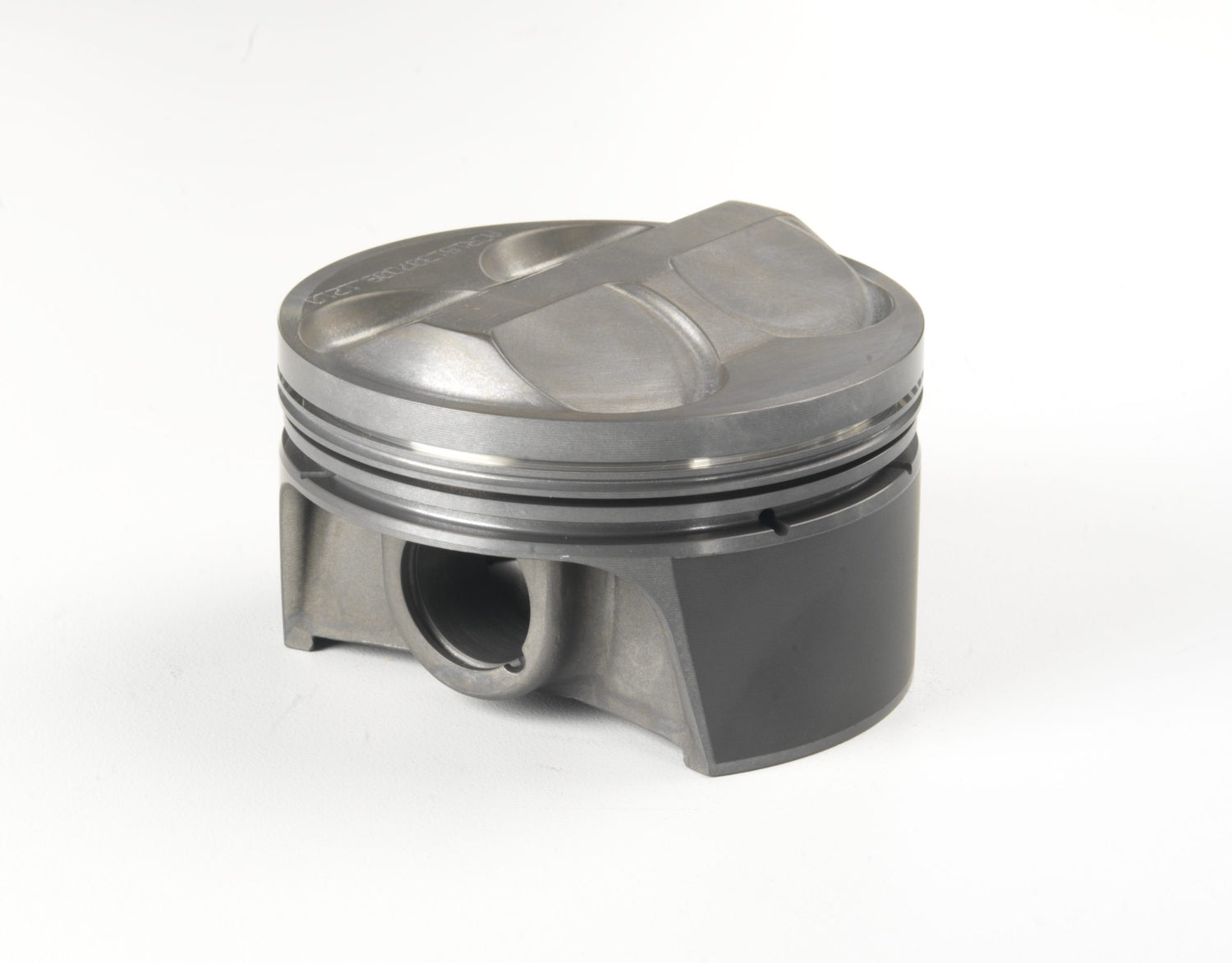

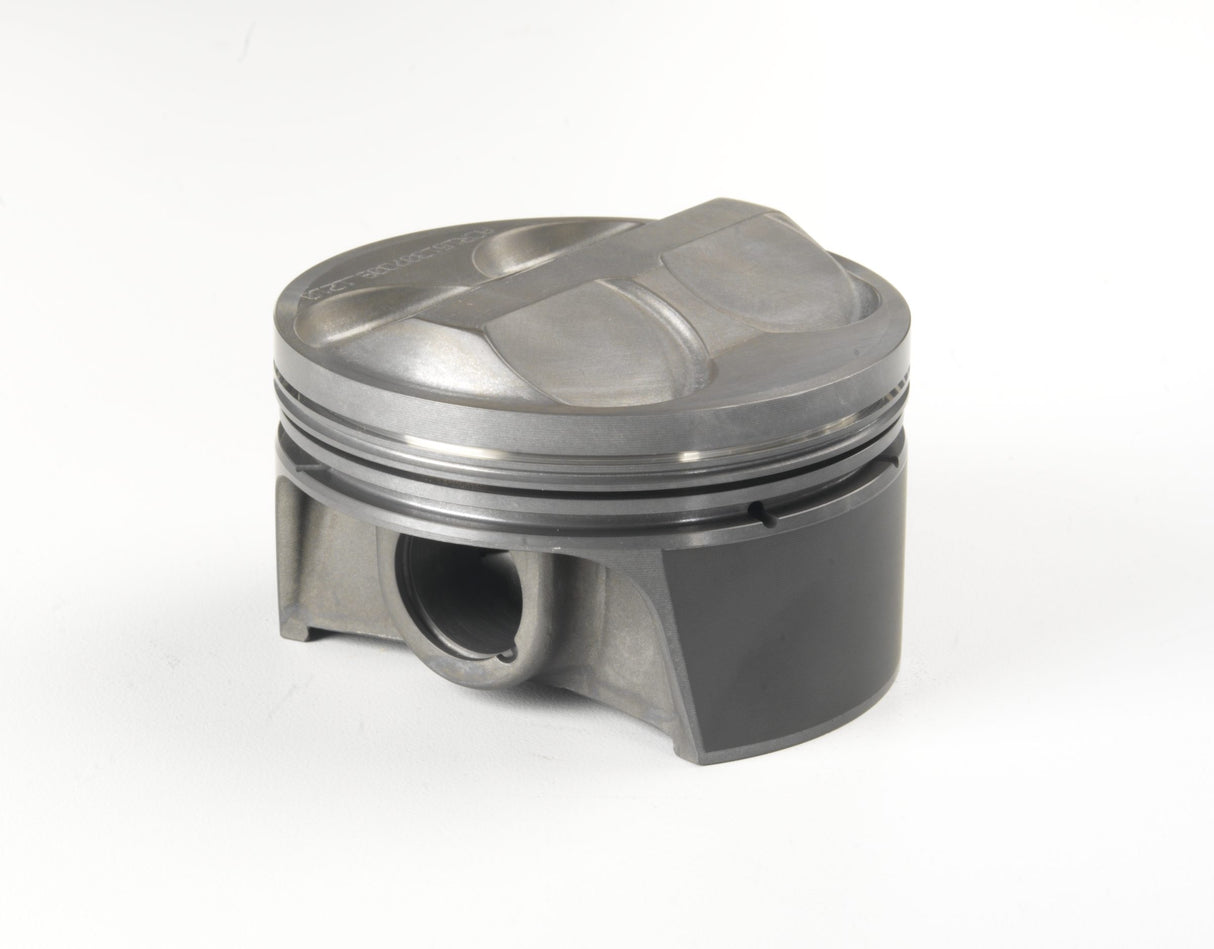

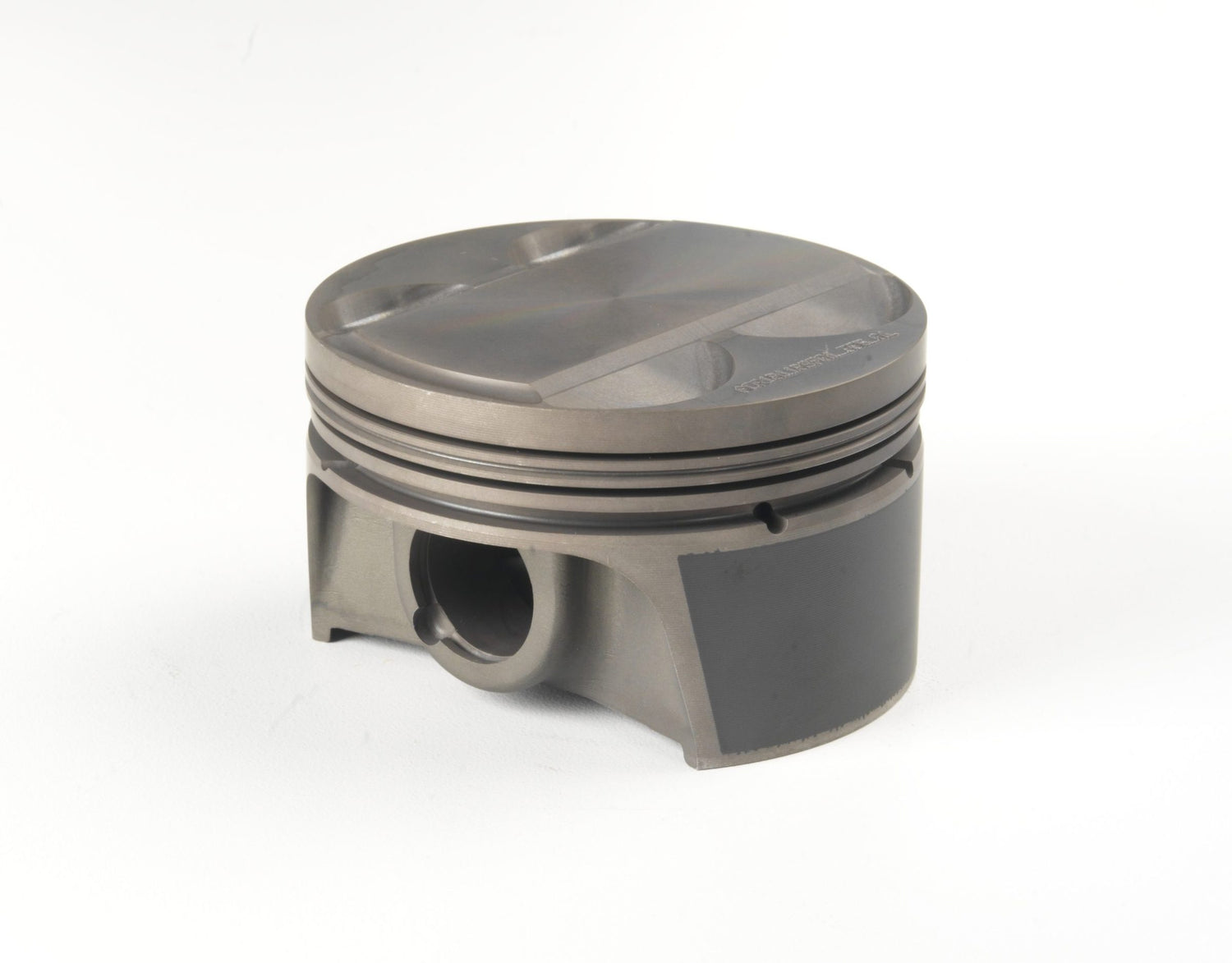

Mahle Motorsport 929114709-1 - Piston (each)
Piston (ea) - HONDA / ACURA B16, A1, A2, A3 DOHC VTEC 1.6L
81.50mm x 30mm CH, 77.4mm stroke,134mm rod,21mm pin,9.1cc,312g,11.3CR, 4032, SINGLE PISTON
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: N
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.0mm, 1.2mm, 2.8mm
Piston Material: Forged, 4032
Piston Mass: 312g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 98g
Pin Length: 50.0mm
Pin Diameter: 21.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: 9.1cc
UCR Thickness: 1.0mm
