Mahle Motorsport 928980200 - Mahle MS Piston Set BBC 540ci 4.500in Bore 4.25in Stroke 6.385in Rod .990 Pin 38cc 13.2 CR Set of 8
Mahle Motorsport | SKU:
DGJH-928980200
Sale price
$91299
Regular price
$98916
Unit price
/
Unavailable
$76.17 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

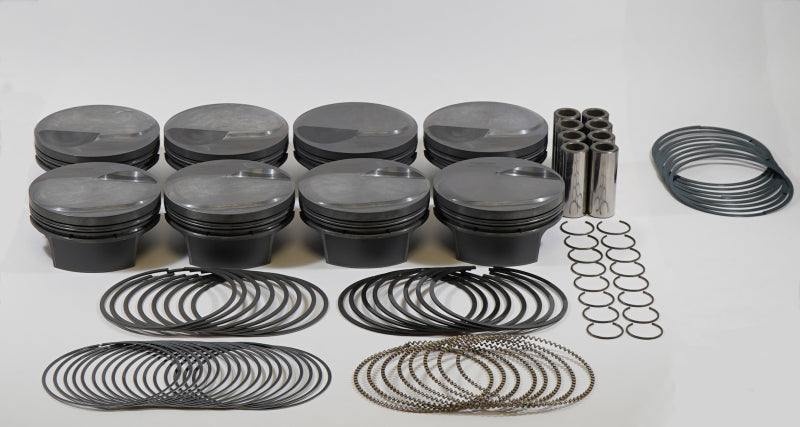

Mahle Motorsport 928980200 - Mahle MS Piston Set BBC 540ci 4.500in Bore 4.25in Stroke 6.385in Rod .990 Pin 38cc 13.2 CR Set of 8
Piston and Ring - PowerPak - Forged - Dome - 4.500 in Bore - 1.270 in Compression Height - 1.5 x 1.5 x 3.0 mm Ring Grooves - Plus 38.00 cc - Big Block Chevy - Kit
541cid 4.500 x 1.270RCH, 4.250stroke,6.385rod,0.990pin,38.0cc,590g,13.2CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y

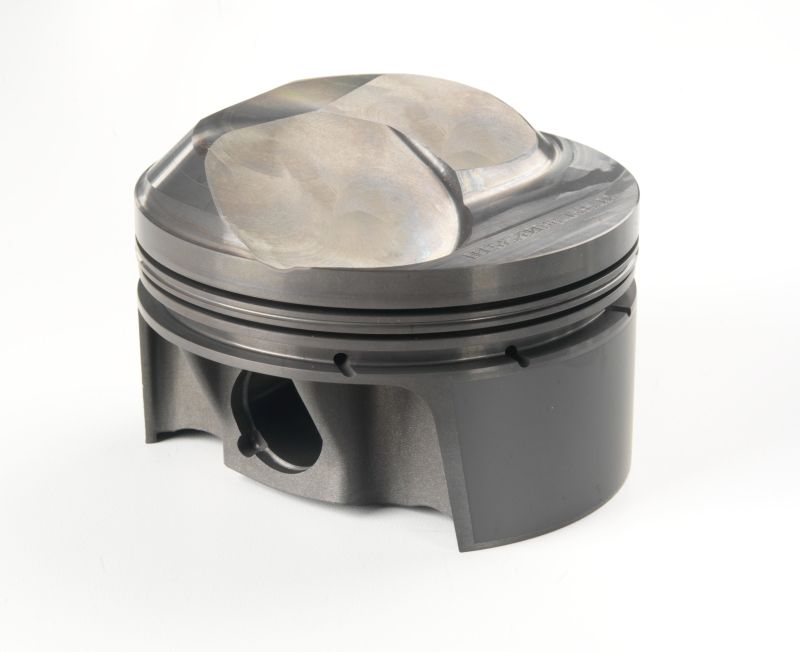

Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 590g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 38.0cc
UCR Thickness: 1.5mm
