Mahle Motorsport 928973710 - Mahle MS Piston Set BBC 468ci 4.310in Bore 4.00in Stroke 6.135in Rod .990 Pin 28cc 10.6 CR Set of 8
Mahle Motorsport | SKU:
DGJH-928973710
Sale price
$83599
Regular price
$92075
Unit price
/
Unavailable
$84.76 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

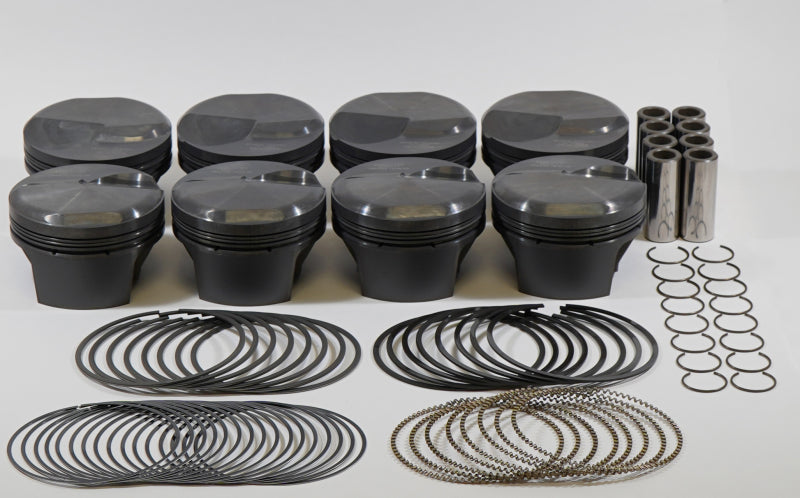

Mahle Motorsport 928973710 - Mahle MS Piston Set BBC 468ci 4.310in Bore 4.00in Stroke 6.135in Rod .990 Pin 28cc 10.6 CR Set of 8

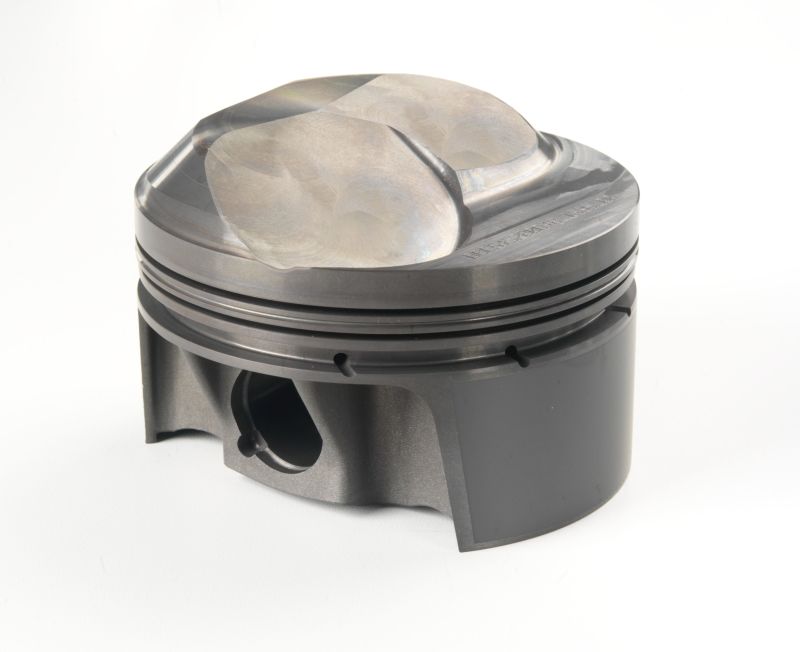

Piston (set) - BIG BLOCK CHEVY DOME (STD DECK 9.800)
467cid 4.310 x 1.645CH, 4.000stroke,6.135rod,0.990pin,28.0cc,638g,10.6CR, 2618
Crown Volume: 28.0cc
UCR Thickness: 1.5mm
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 638g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
