Mahle Motorsport 928956200 - Mahle MS Piston Set BBC 508ci 4.500in Bore 4.00in Stroke 6.135in Rod 0.990 Pin -3cc 8.9 CR Set of 8
Mahle Motorsport | SKU:
DGJH-928956200
Sale price
$75799
Regular price
$85034
Unit price
/
Unavailable
$92.35 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

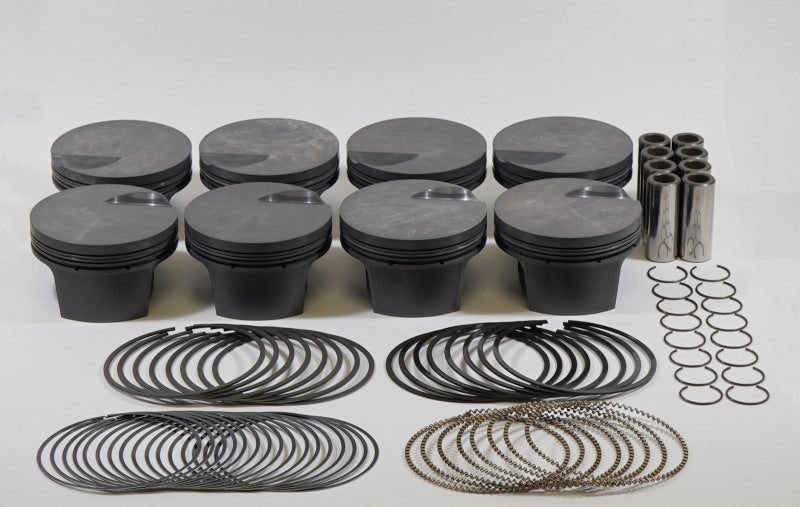

Mahle Motorsport 928956200 - Mahle MS Piston Set BBC 508ci 4.500in Bore 4.00in Stroke 6.135in Rod 0.990 Pin -3cc 8.9 CR Set of 8

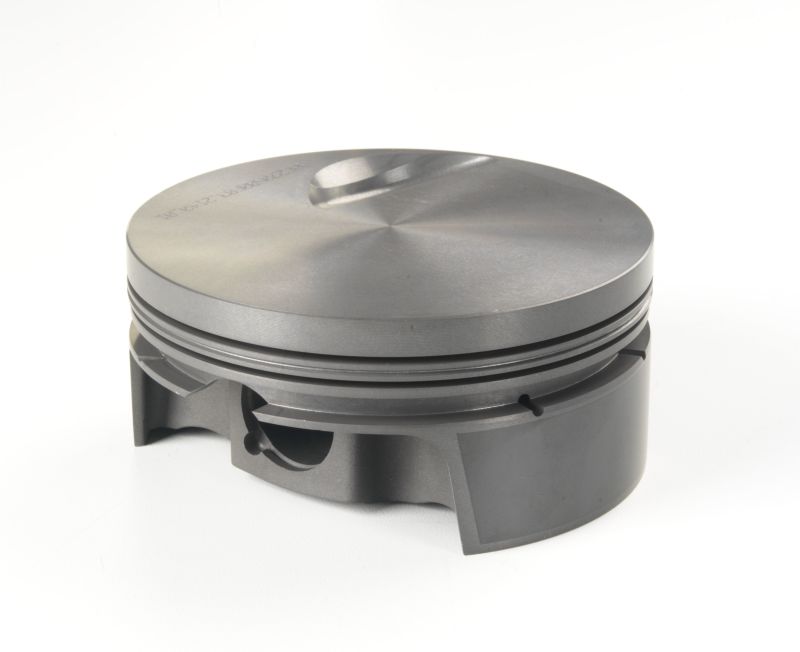

Piston (set) - BIG BLOCK CHEVY FLAT TOP (STD DECK 9.800)
509cid 4.500 x 1.645CH, 4.000stroke,6.135rod,0.990pin,-3.4cc,578g,8.9CR, 4032
Piston Style: Flattop, w/ INT valve relief
OCR Material: Chrome plated stainless steel
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 4032
Piston Mass: 578g
Pins Included: Y
Pin Wall Thickness: 0.18
Pin Style: Floating
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
LCR Material: Cast iron
LCR Thickness: 1.5mm
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -3.4cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.5mm
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
