Mahle Motorsport 197915148-1 - Mahle MS Piston Set Audi RS3 TTRS 2.5L (Single)
Mahle Motorsport | SKU:
DGJH-197915148-1
Sale price
$12999
Regular price
$14551
Unit price
/
Unavailable
$15.52 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

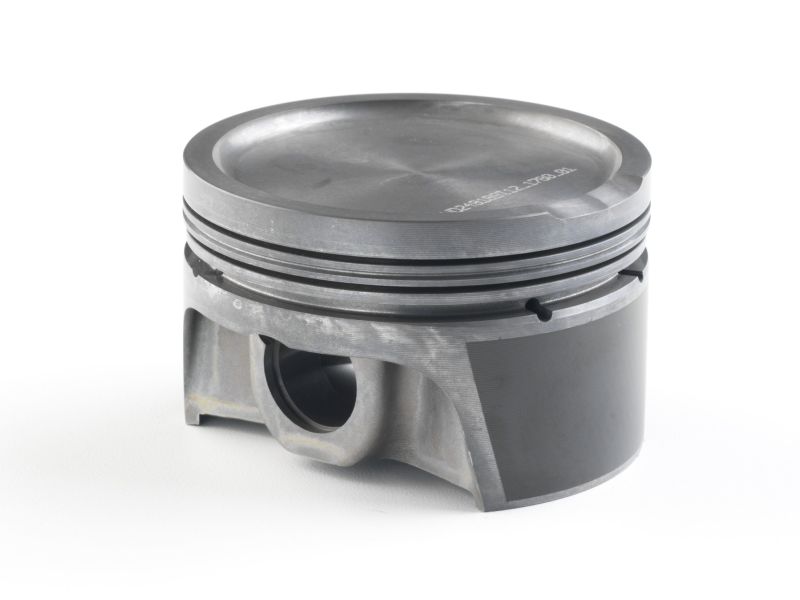

Mahle Motorsport 197915148-1 - Mahle MS Piston Set Audi RS3 TTRS 2.5L (Single)
Piston (ea) - AUDI DAZA / DNWA RS3 TTRS 2.5L TURBO
82.50mm x 29.6mm CH, 92.8mm stroke,144mm rod,22mm pin,-5.0cc,322g,10.0CR, M142P, SINGLE PISTON
Clip Style: Round Wire
Pin Wall Thickness: 0.207
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: N
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.2mm, 2.8mm
Piston Material: Forged, M142P
Piston Mass: 322g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 126g
Pin Length: 58.1mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -5.0cc
UCR Thickness: 1.0mm
