Mahle Motorsport 197836025 - Piston (set)
Mahle Motorsport | SKU:
DGJH-197836025
Sale price
$89099
Regular price
$1,14539
Unit price
/
Unavailable
$254.40 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

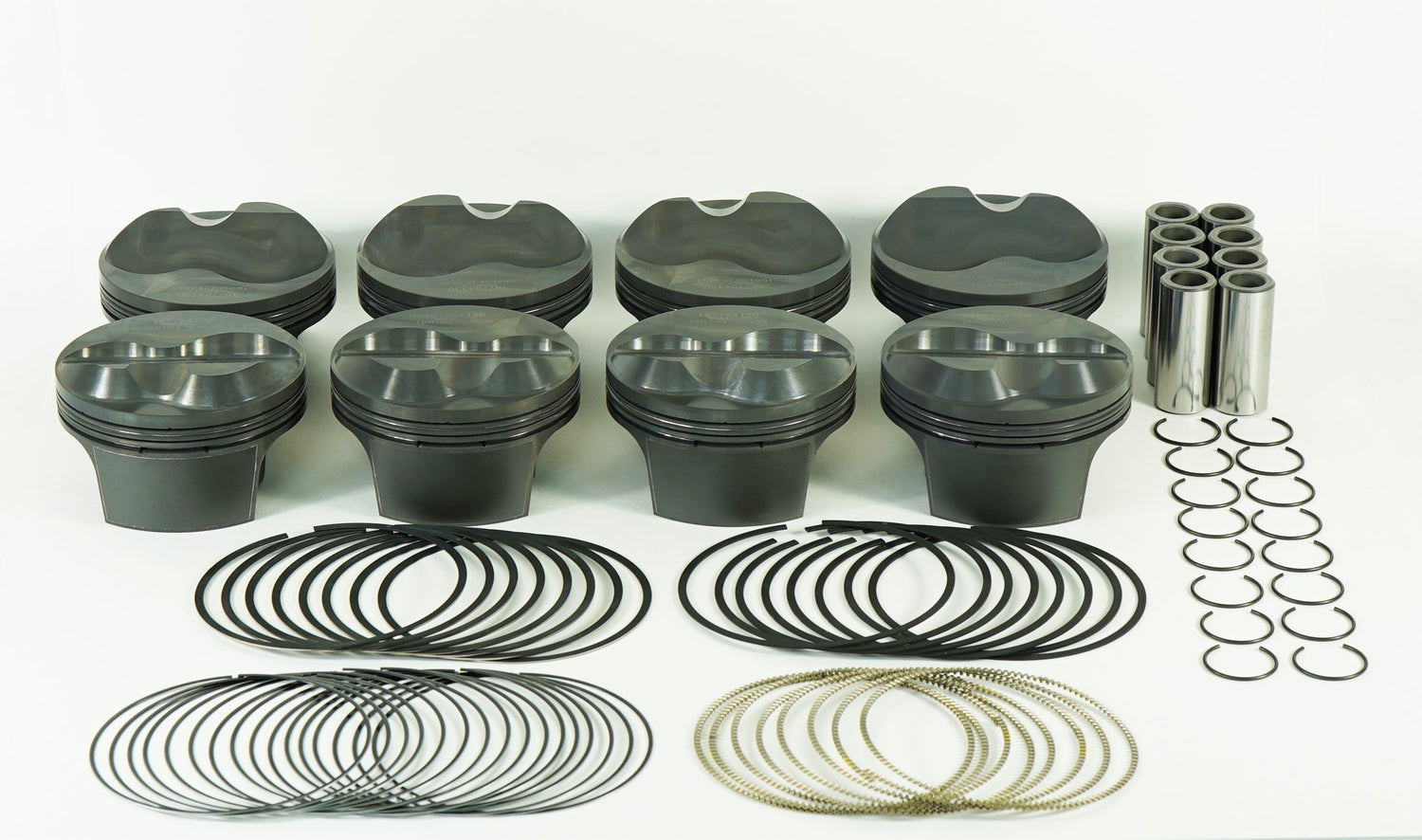

Mahle Motorsport 197836025 - Piston (set)
Piston and Ring - PowerPak - Dome - 4.125 in Bore - 1.250 in Compression Height - 1.0 mm x 1.0 mm x 2.0 mm in Ring Grooves - Small Block Chevy - Kit
374cid 4.125 x 1.250CH, 3.500stroke,6.000rod,0.927pin,12.0cc,482g,13.6CR, 2618
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
Crown Volume: 12.0cc
File Fit: Y
Piston Material: Forged, 2618
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Mass: 482g
LCR Coating: Phosphate
Pins Included: Y
