Mahle Motorsport 197832225 - Mahle MS BMW N54 B30 3.0L 84.50mm x 31.7mm CH 17.2cc 314g 10.3CR Pistons (Set of 6)
Mahle Motorsport | SKU:
DGJH-197832225
Sale price
$91799
Regular price
$1,08084
Unit price
/
Unavailable
$162.85 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 197832225 - Mahle MS BMW N54 B30 3.0L 84.50mm x 31.7mm CH 17.2cc 314g 10.3CR Pistons (Set of 6)

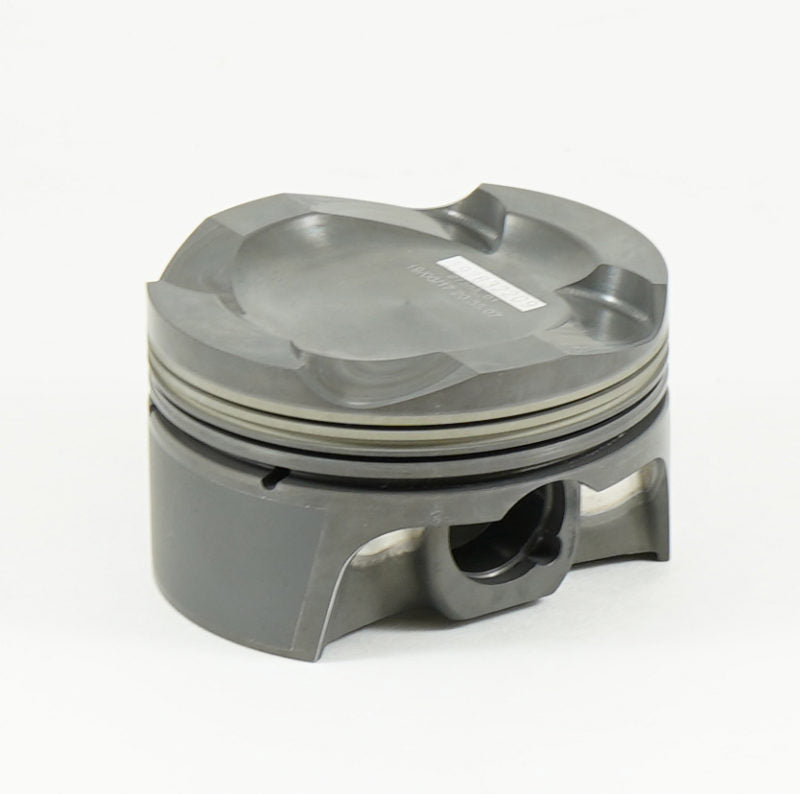

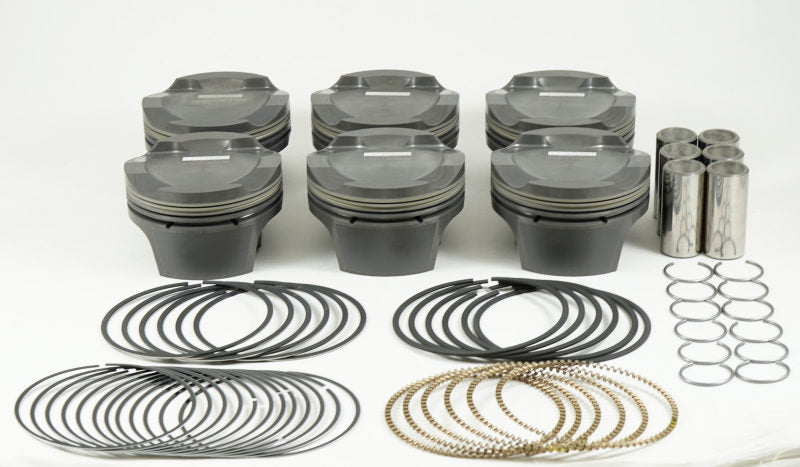

Piston (set) - BMW N54 B30 3.0L
84.50mm x 31.7mm CH, 89.6mm stroke,145.05mm rod,22mm pin,-17.2cc,320g,10.3CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1.0mm, 1.2mm, 2.8mm
Piston Material: Forged, 2618
Piston Mass: 320g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 93g
Pin Length: 48.0mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 6
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -17.2cc
UCR Thickness: 1.0mm
