Mahle Motorsport 197830035 - Mahle MS Piston Set Chevy 430ci 4.135in Bore 4.000in Stk 6.000in Rod .927 Pin 6.0cc 14.2 CR Set of 8
Mahle Motorsport | SKU:
DGJH-197830035
Sale price
$1,00899
Regular price
$1,09485
Unit price
/
Unavailable
$85.86 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

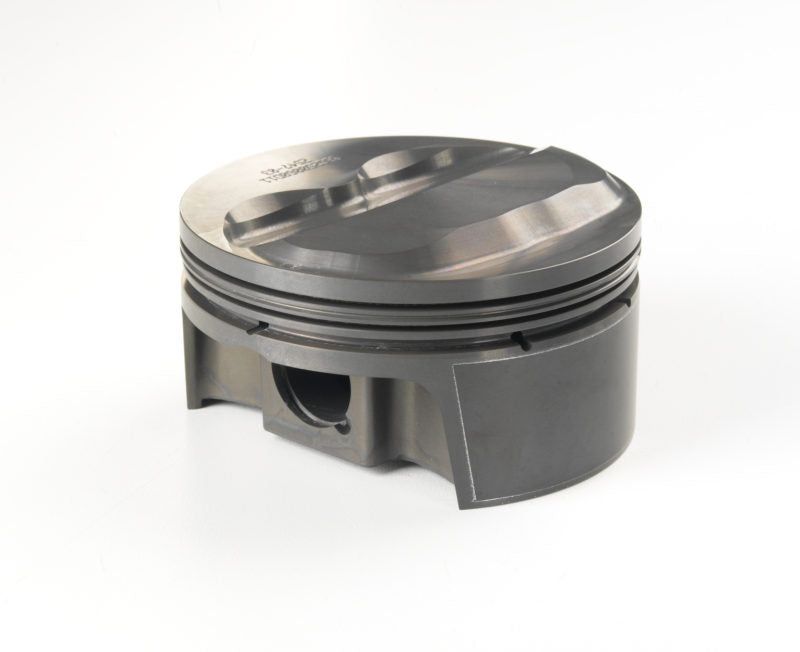

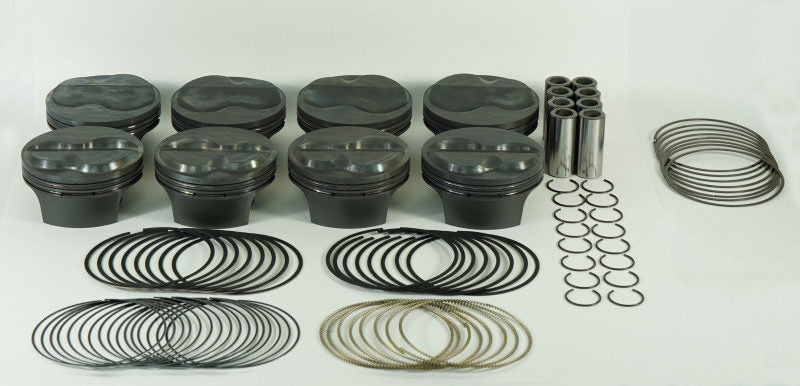

Mahle Motorsport 197830035 - Mahle MS Piston Set Chevy 430ci 4.135in Bore 4.000in Stk 6.000in Rod .927 Pin 6.0cc 14.2 CR Set of 8
Piston and Ring - PowerPak - Forged - Dome - 4.135 in Bore - 1.000 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Plus 6.00 cc - Small Block Chevy - Kit
430cid 4.135 x 1.000RCH, 4.000stroke,6.000rod,0.927pin,6.0cc,426g,14.2CR, 2618
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 6.0cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dome, w/ 2 valve reliefs
OCR Tension: Standard
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 426g
Pins Included: Y
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
