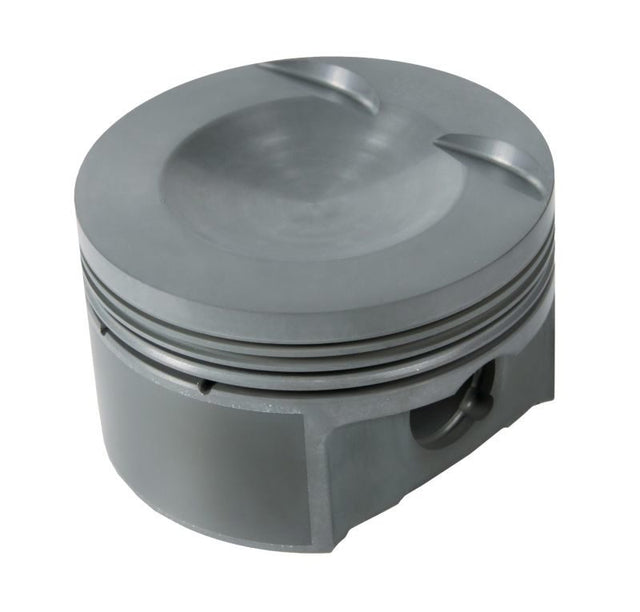

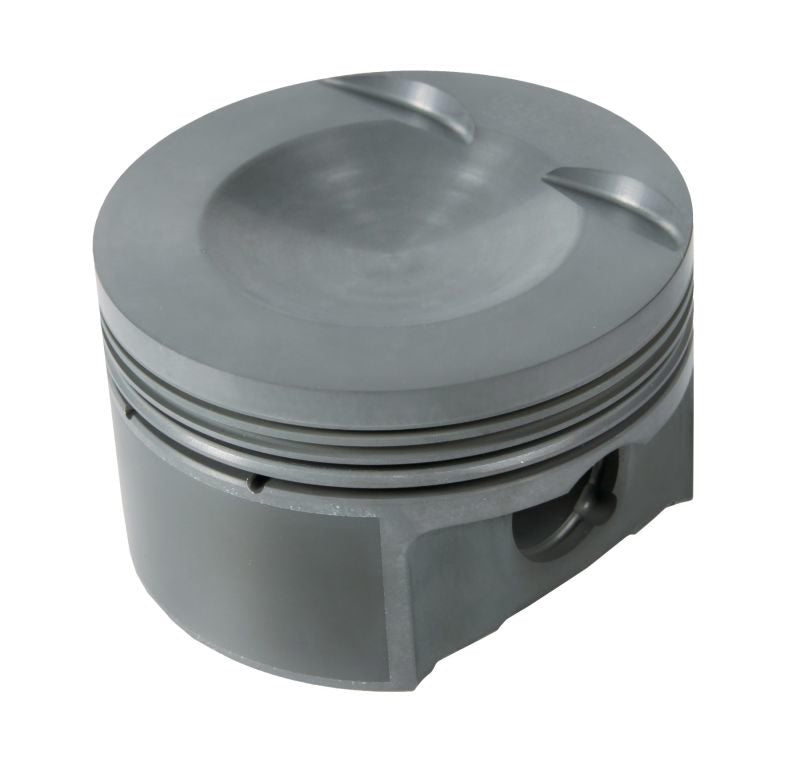

Mahle Motorsport 197800168-1 - Mahle MS Piston Set VW TFSi 2.0L 83mm Bore 92.8mm Stroke 144mm Rod 20mm Pin -11cc 9.3 CR - Single
Mahle Motorsport | SKU:
DGJH-197800168-1
Sale price
$15699
Regular price
$17550
Unit price
/
Unavailable
$18.51 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 197800168-1 - Mahle MS Piston Set VW TFSi 2.0L 83mm Bore 92.8mm Stroke 144mm Rod 20mm Pin -11cc 9.3 CR - Single
Piston (ea) - VOLKSWAGEN TFSi EA113 (2006-2009) 2.0L TURBO
83.00mm x 29.6mm CH, 92.8mm stroke,144mm rod,20mm pin,-11.1cc,318g,9.3CR, M142P, SINGLE PISTON
Pin Style: Floating
Clips Included: N
Pin Mass: 106g
Pin Length: 59.0mm
Pin Diameter: 20.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -11.1cc
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Thickness: 1.2mm
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, M142P
Piston Mass: 318g
Pins Included: N
Pin Material: Steel
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: N
