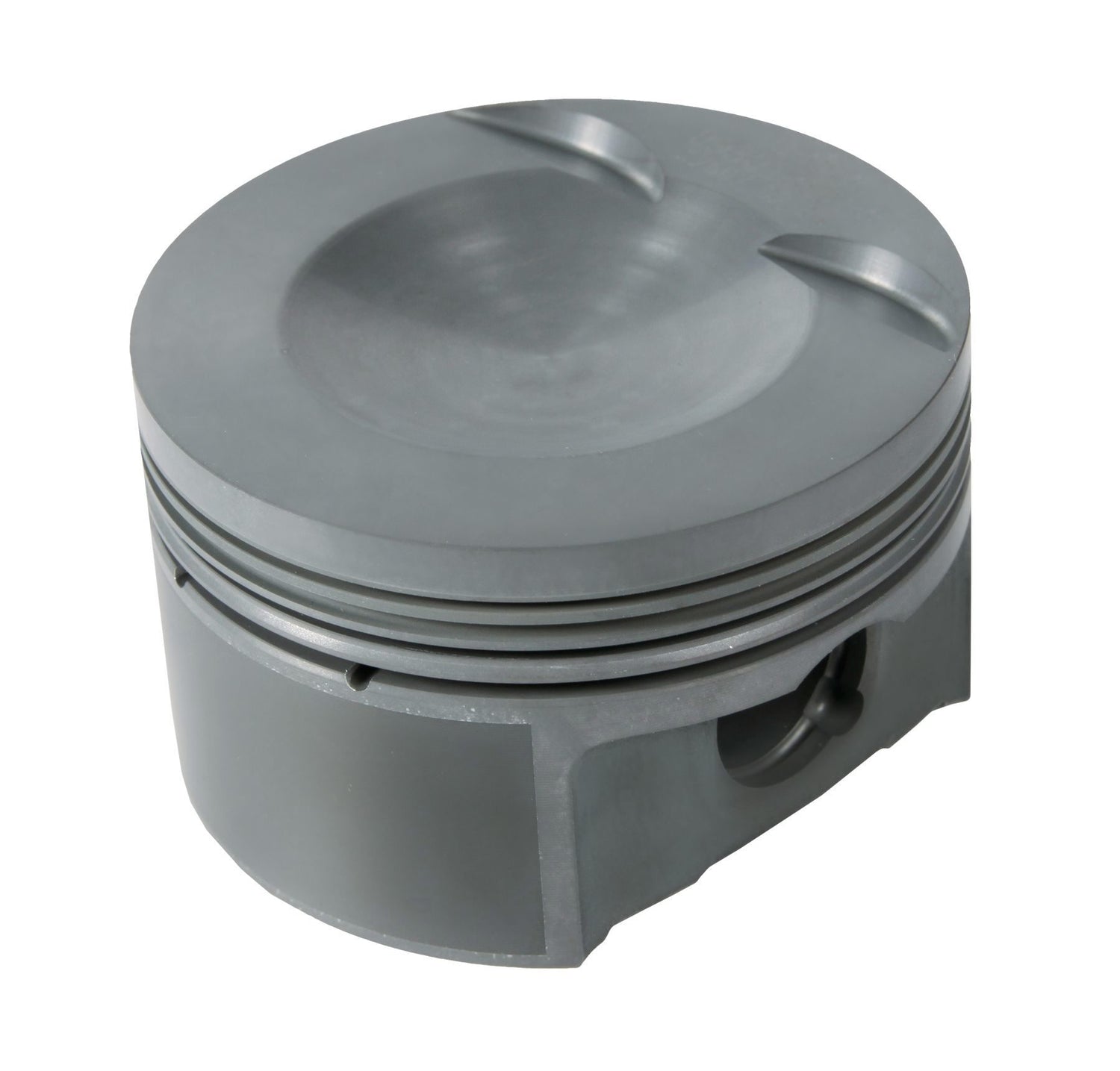

Mahle Motorsport 197799948-1 - Piston (each)
Piston (ea) - VOLKSWAGEN TFSi EA113 (2006-2009) 2.0L TURBO
82.50mm x 29.6mm CH, 92.8mm stroke,144mm rod,20mm pin,-10.4cc,312g,9.3CR, M142P, SINGLE PISTON
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: N
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.2mm, 2.8mm
Piston Material: Forged, M142P
Piston Mass: 312g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 106g
Pin Length: 59.0mm
Pin Diameter: 20.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -10.4cc
UCR Thickness: 1.0mm
