Mahle Motorsport 197779155 - Mahle MS Piston Set Chevy SB 407ci 4.155in Bore 3.5/3.75 Stroke 6.125/6 Rod .927Pin -9cc 13.7CR

Mahle Motorsport  |  SKU: DGJH-197779155
$93099 $1,02834

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

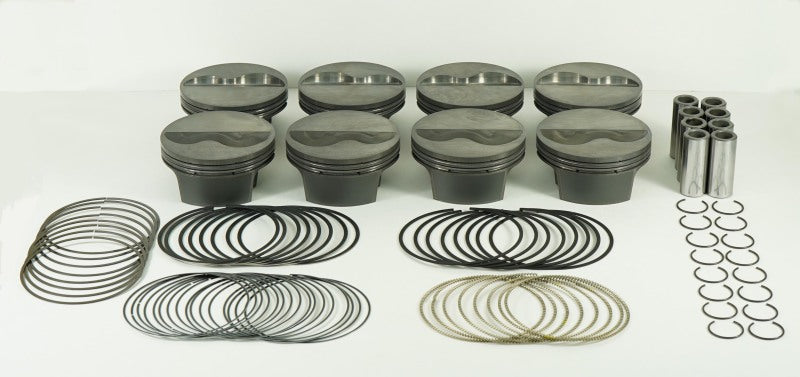

Mahle Motorsport 197779155 - Mahle MS Piston Set Chevy SB 407ci 4.155in Bore 3.5/3.75 Stroke 6.125/6 Rod .927Pin -9cc 13.7CR

Piston and Ring - PowerPak - Flat Top - Forged - 4.155 in Bore - 1.062 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Minus 9.00 cc - Small Block Chevy - Kit

393cid 4.155 x 1.062RCH, 3.625stroke,6.125rod,0.927pin,-8.9cc,414g,13.1CR, 2618

Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 414g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -8.9cc
UCR Thickness: 1.0mm
