Mahle Motorsport 197754955 - Mahle MS Piston Set Chevy SB 393ci 4.155in Bore 3.625 Stroke 6.125 Rod .927 Pin 4cc 12.7CR
Mahle Motorsport | SKU:
DGJH-197754955
Sale price
$98899
Regular price
$1,09485
Unit price
/
Unavailable
$105.86 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

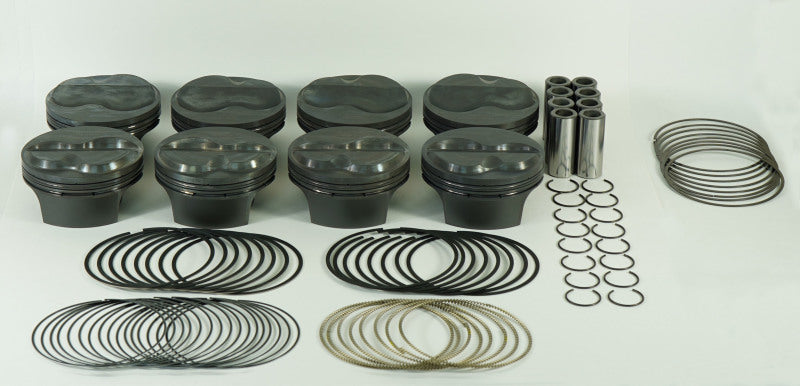

Mahle Motorsport 197754955 - Mahle MS Piston Set Chevy SB 393ci 4.155in Bore 3.625 Stroke 6.125 Rod .927 Pin 4cc 12.7CR

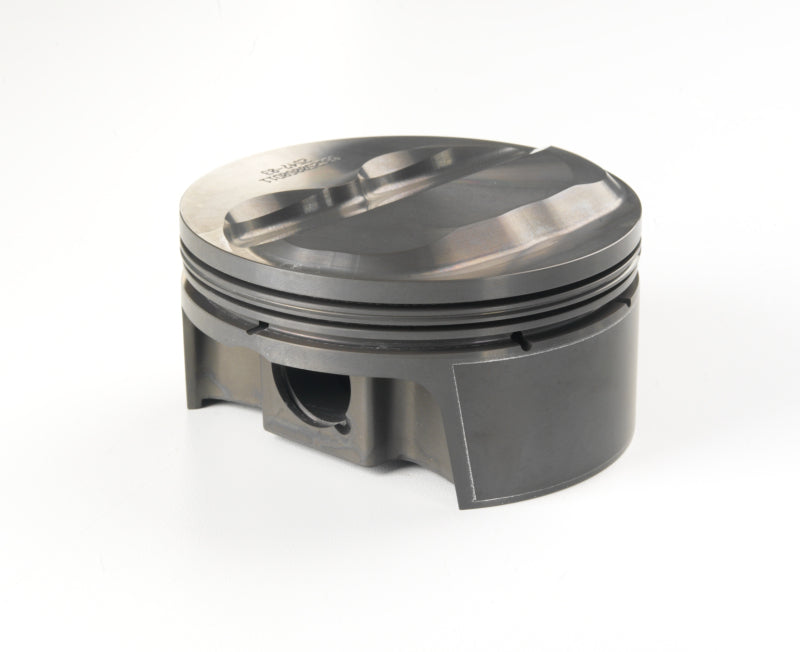

Piston (set) - SMALL BLOCK CHEVY 23 Deg DOME
393cid 4.155 x 1.062RCH, 3.625stroke,6.125rod,0.927pin,4.0cc,439g,12.7CR, 2618
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 4.0cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 439g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
