Mahle Motorsport 197753355-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-197753355-1
Sale price
$9999
Regular price
$12141
Unit price
/
Unavailable
$21.42 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

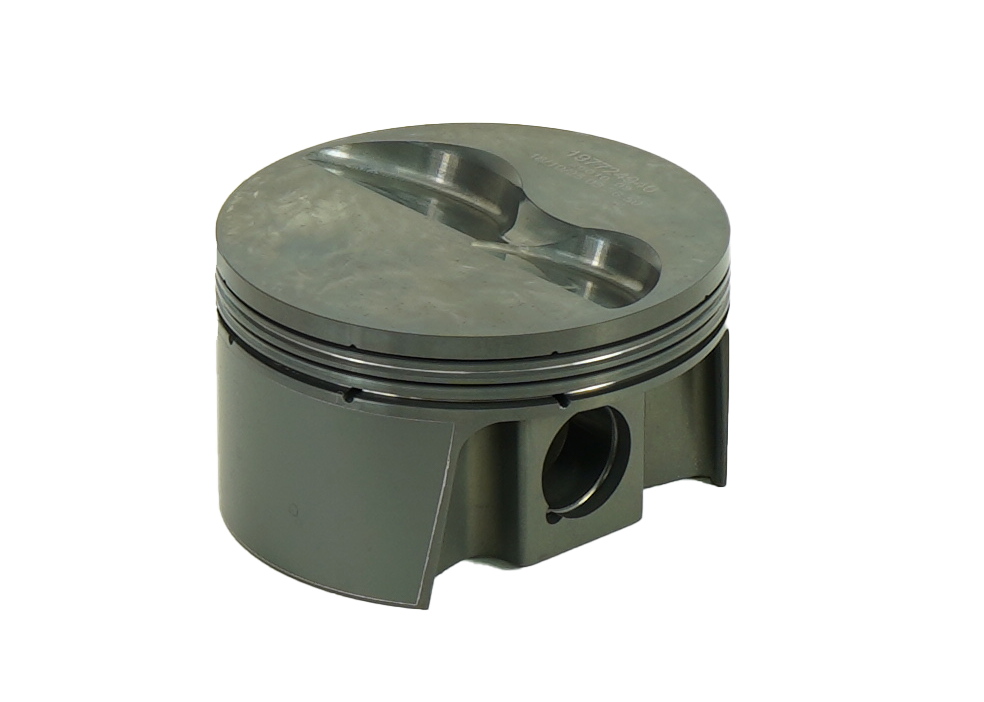

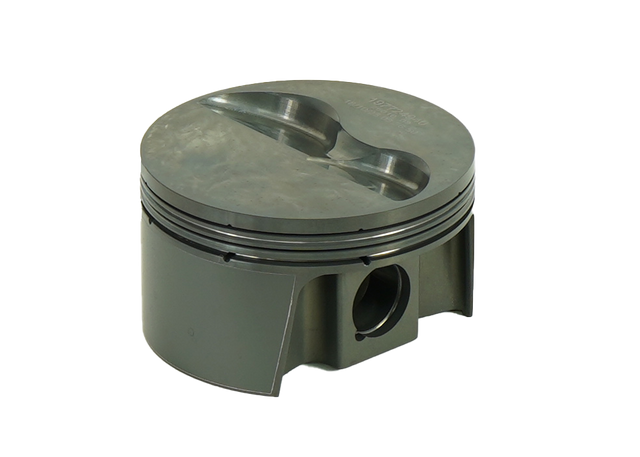

Mahle Motorsport 197753355-1 - Piston (each)
Piston (ea) - SMALL BLOCK CHEVY 21 Deg FLAT TOP
380cid 4.155 x 1.125CH, 3.500stroke,6.125rod,0.927pin,-8.9cc,446g,12.6CR, 2618, SINGLE PISTON
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: N
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 446g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -8.9cc
UCR Thickness: 1.0mm
