Mahle Motorsport 197739275-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-197739275-1
Sale price
$9999
Regular price
$12141
Unit price
/
Unavailable
$21.42 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

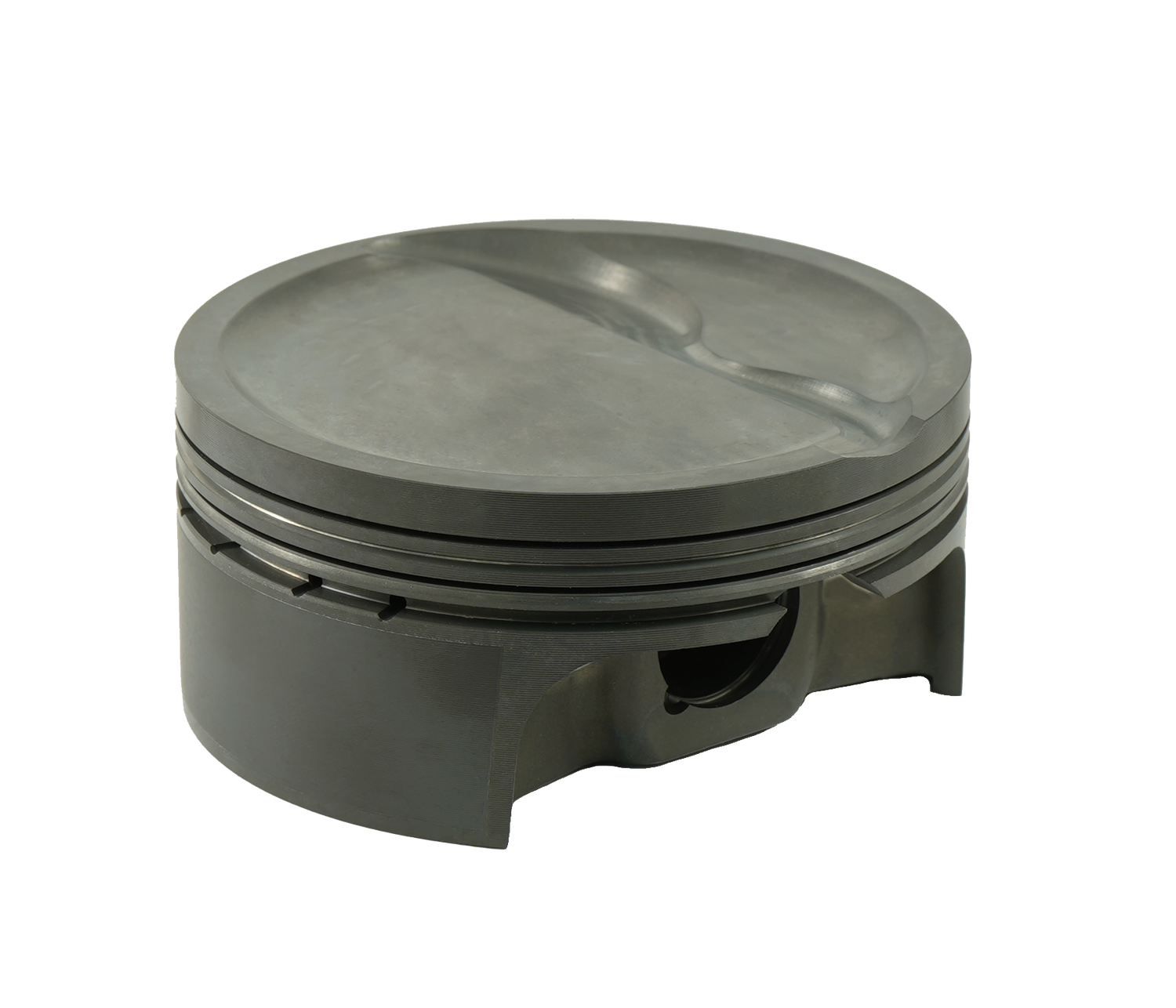

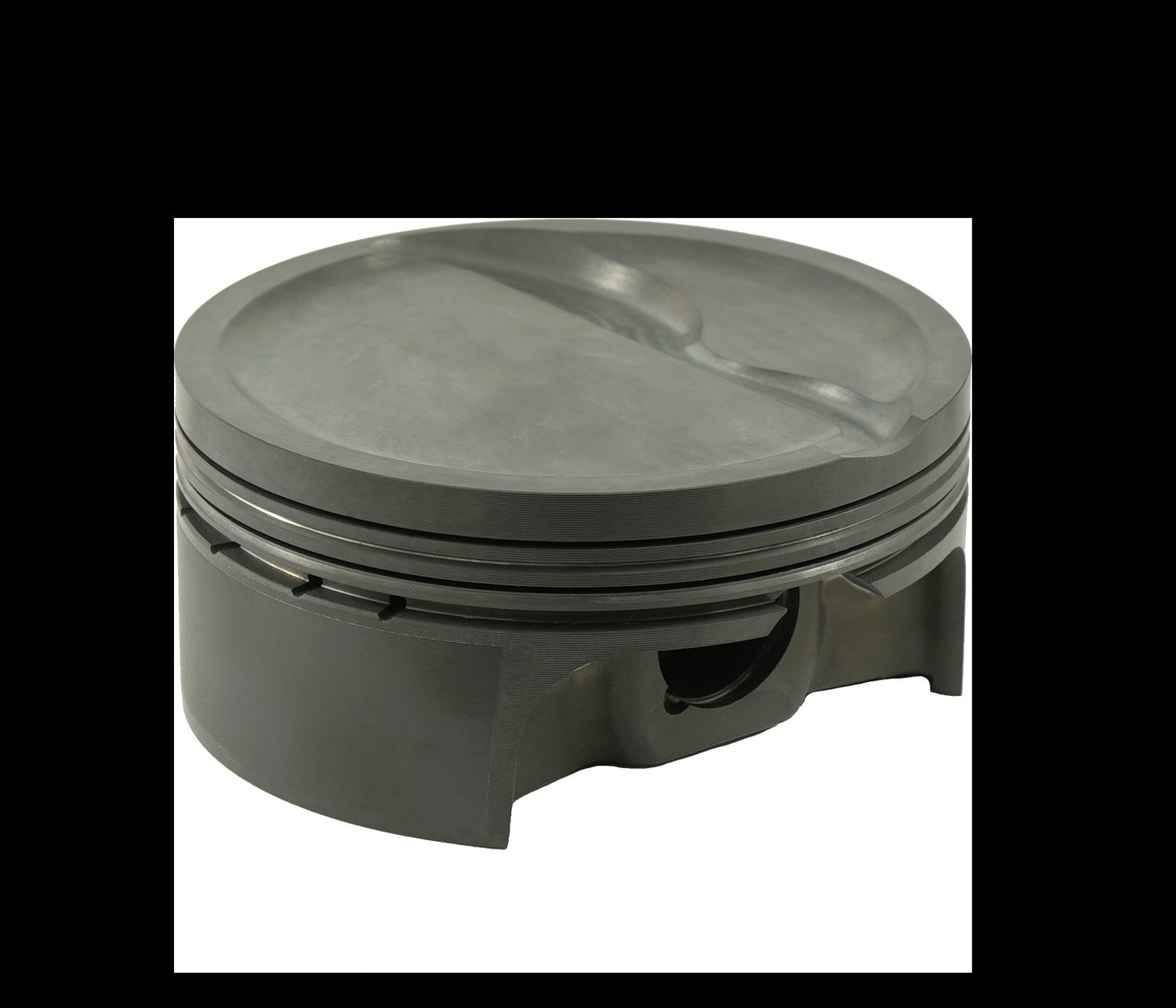

Mahle Motorsport 197739275-1 - Piston (each)
Piston (ea) - LS3 FLAT TOP TransAm TA2 Homologation Gasported
378cid 4.075 x 1.330CH, 3.622stroke,6.098rod,0.945pin,-0.4cc,517g,10.7CR, 2618, SINGLE PISTON
Rings Included: N
Piston Style: Flattop, w/ 2 valve reliefs
OCR Material: Chrome plated stainless steel
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 517g
Pins Included: N
Pin Wall Thickness: 0.217
Pin Style: Floating
Pin Material: Steel
Pin Mass: 144g
Pin Length: 58.1mm
Pin Diameter: 24.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
LCR Material: 9254 Steel
LCR Thickness: 1.0mm
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -0.4cc
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
