Mahle Motorsport 197726850 - Mahle MS Piston Set SBC 361ci 4.050in Bore 3.5in Stroke 6.0in Rod .927 Pin -9cc 12.0 CR Set of 8
Mahle Motorsport | SKU:
DGJH-197726850
Sale price
$87999
Regular price
$97082
Unit price
/
Unavailable
$90.83 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

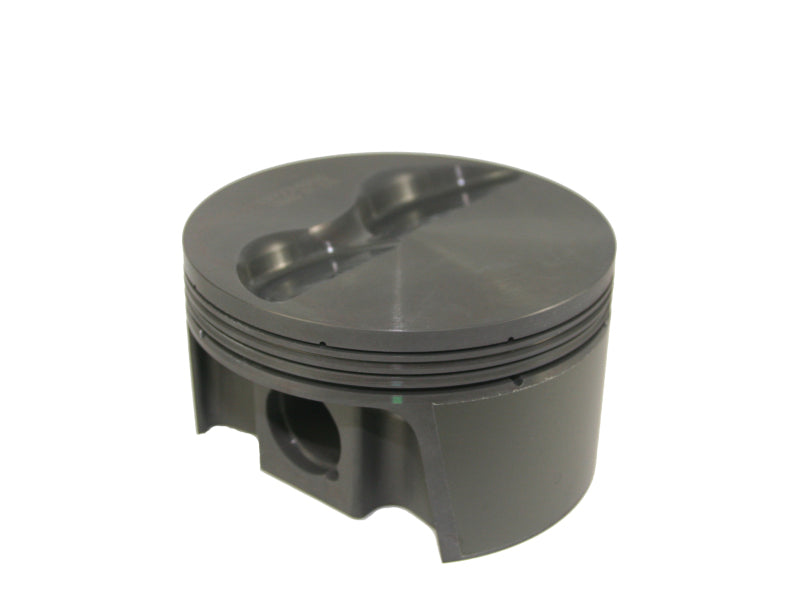

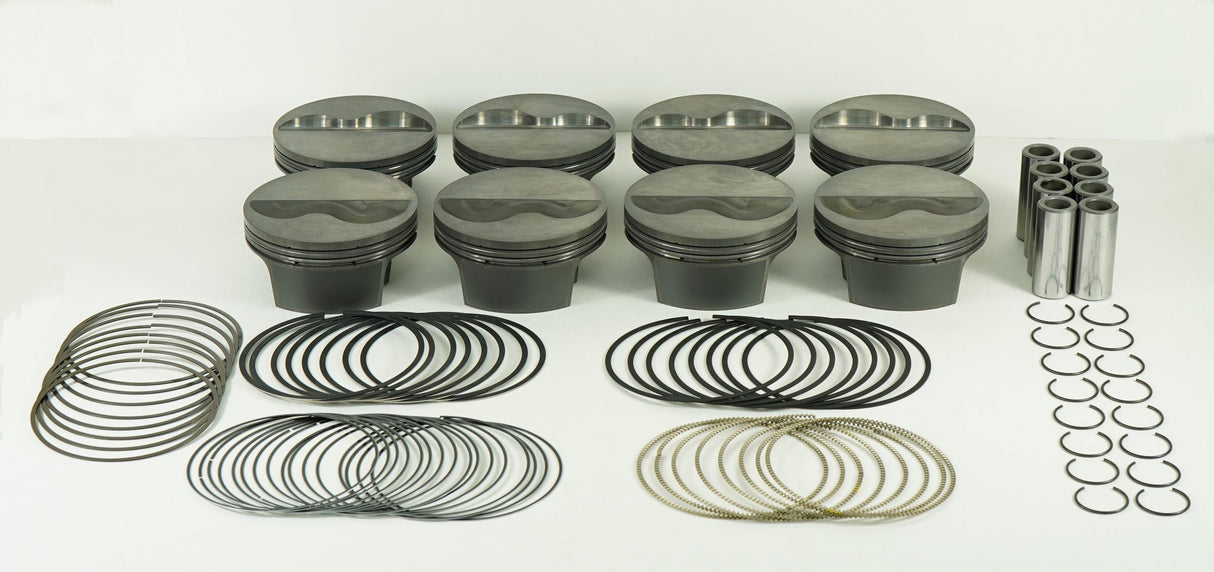

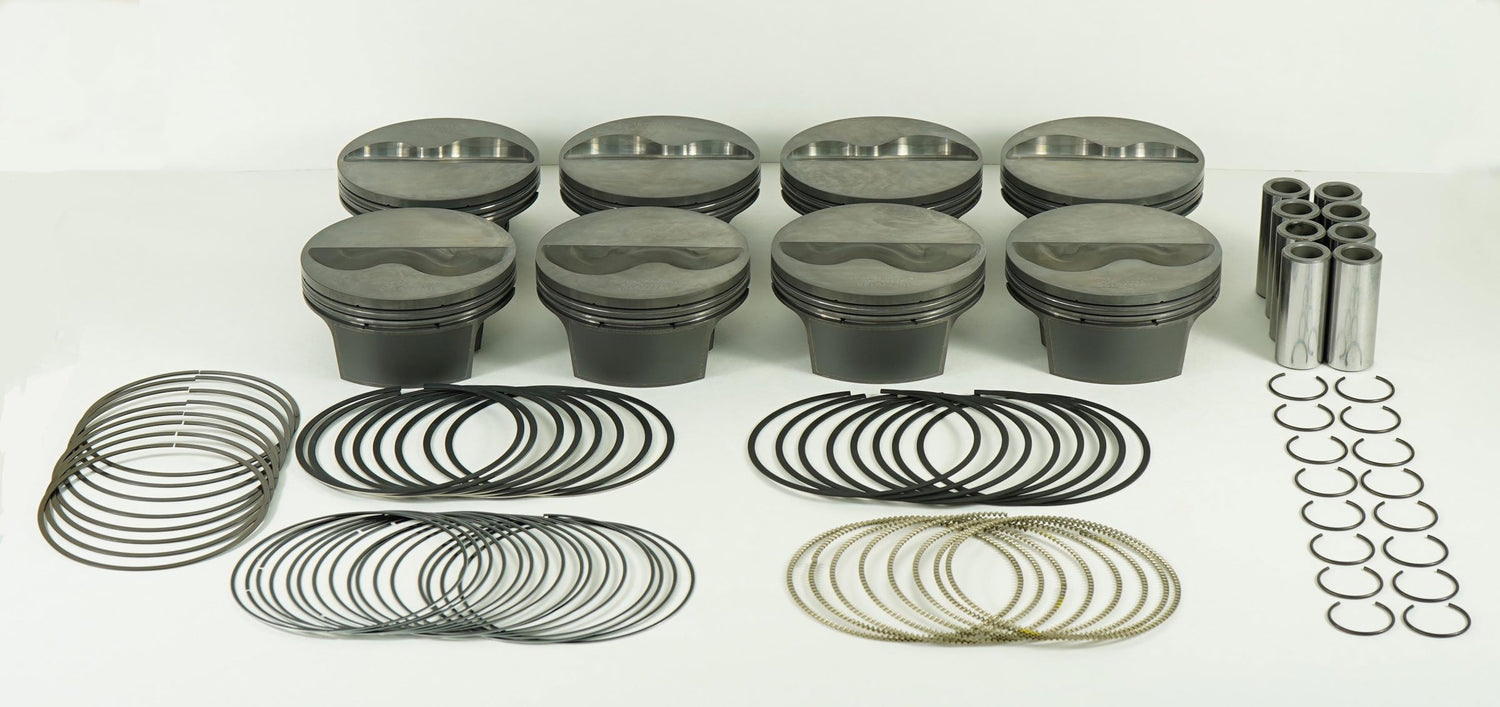

Mahle Motorsport 197726850 - Mahle MS Piston Set SBC 361ci 4.050in Bore 3.5in Stroke 6.0in Rod .927 Pin -9cc 12.0 CR Set of 8
Piston and Ring - 21 Degree Flat Top - Forged - Flat Top - 4.050 in Bore - 1.250 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Minus 8.90 cc - Small Block Chevy - Kit
361cid 4.050 x 1.250CH, 3.500stroke,6.000rod,0.927pin,-8.9cc,427g,12.1CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 427g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -8.9cc
UCR Thickness: 1.0mm
