Mahle Motorsport 197724930 - Mahle MS Piston Set SBC 358ci 4.030in Bore 3.5in Stroke 5.7in Rod .927 Pin -8cc 12.0 CR Set of 8
Mahle Motorsport | SKU:
DGJH-197724930
Sale price
$81899
Regular price
$97082
Unit price
/
Unavailable
$151.83 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

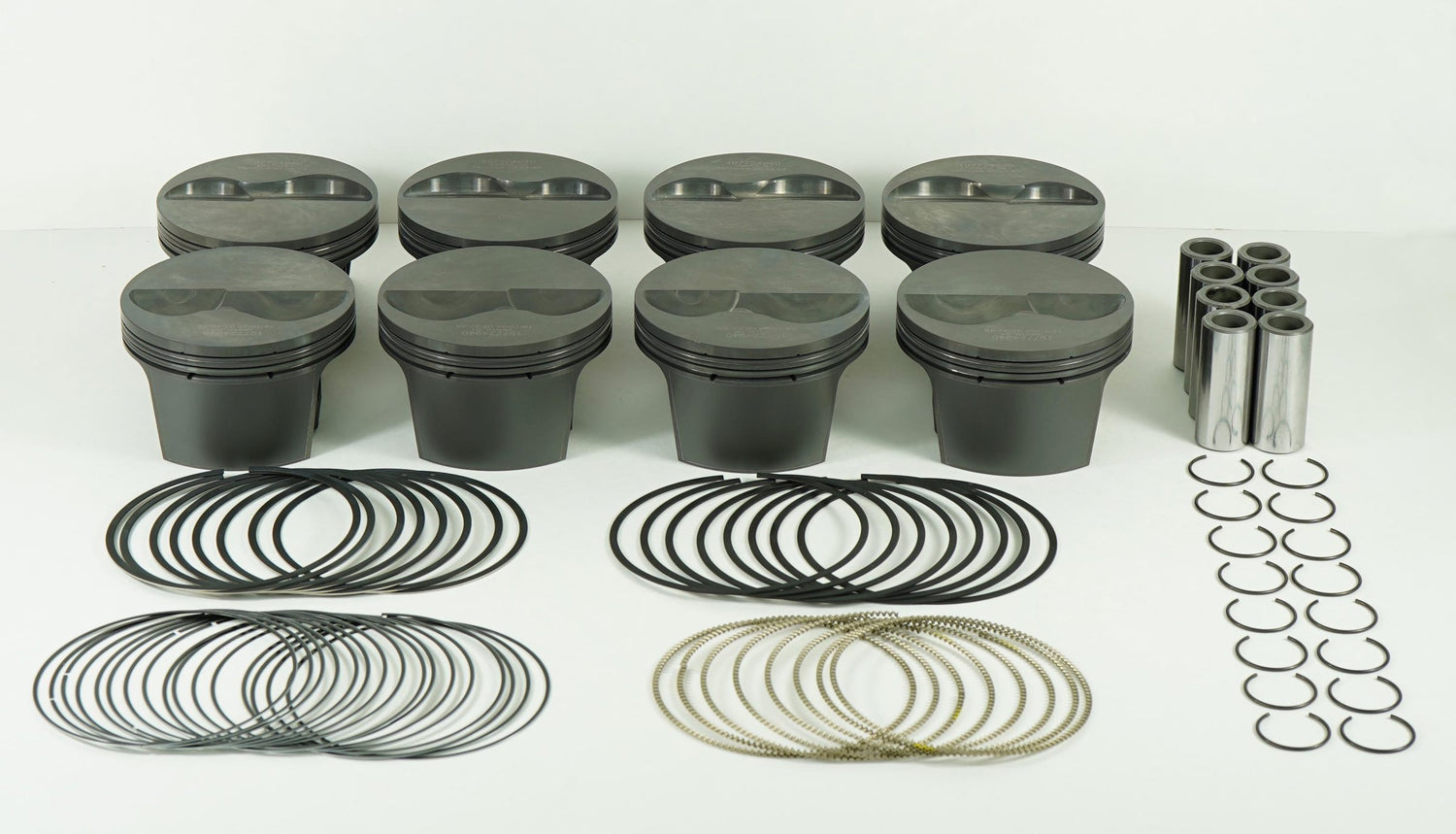

Mahle Motorsport 197724930 - Mahle MS Piston Set SBC 358ci 4.030in Bore 3.5in Stroke 5.7in Rod .927 Pin -8cc 12.0 CR Set of 8
Piston and Ring - PowerPak - Flat Top - 4.030 in Bore - 1.550 in Compression Height - 1 mm / 1mm / 2 mm Ring Grooves - Minus 9.00 cc - Small Block Chevy - Kit
357cid 4.030 x 1.550CH, 3.500stroke,5.700rod,0.927pin,-7.9cc,460g,12.2CR, 2618
Pin Material: Steel
Clip Style: Round Wire
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -7.9cc
Clips Included: Y
UCR Thickness: 1.0mm
Pin Style: Floating
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y

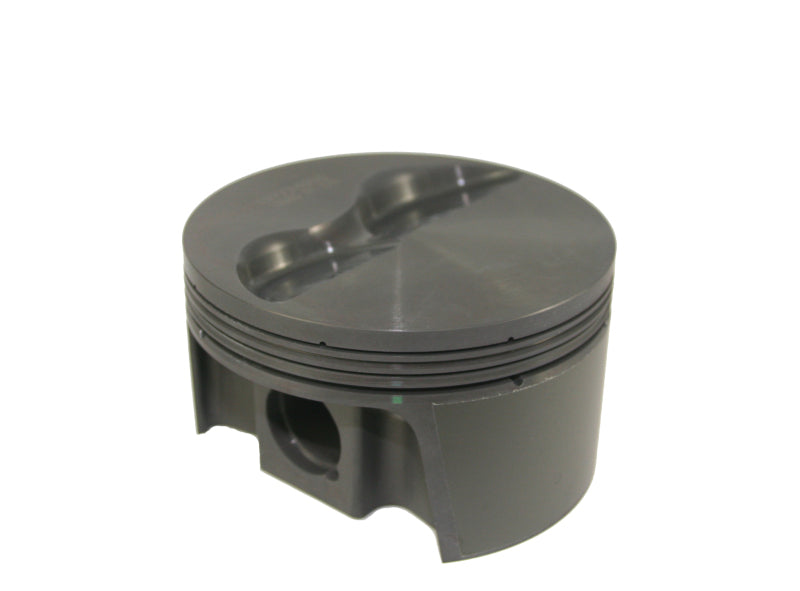

Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 460g
Pins Included: Y
Pin Wall Thickness: 0.168
Pin Mass: 118g
