Mahle Motorsport 197719210 - Mahle MS Piston Set GM LS 366ci 4.010in Bore 3.622stk 6.125in Rod 0.927 Pin 2cc 10.5 CR Set of 8
Mahle Motorsport | SKU:
DGJH-197719210
Sale price
$78299
Regular price
$85972
Unit price
/
Unavailable
$76.73 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

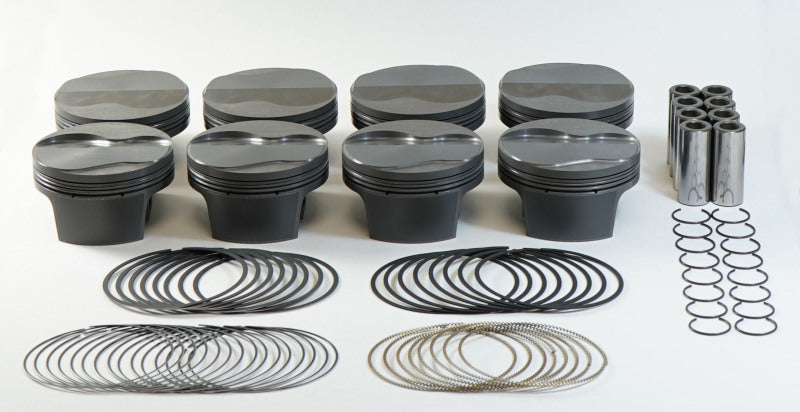

Mahle Motorsport 197719210 - Mahle MS Piston Set GM LS 366ci 4.010in Bore 3.622stk 6.125in Rod 0.927 Pin 2cc 10.5 CR Set of 8

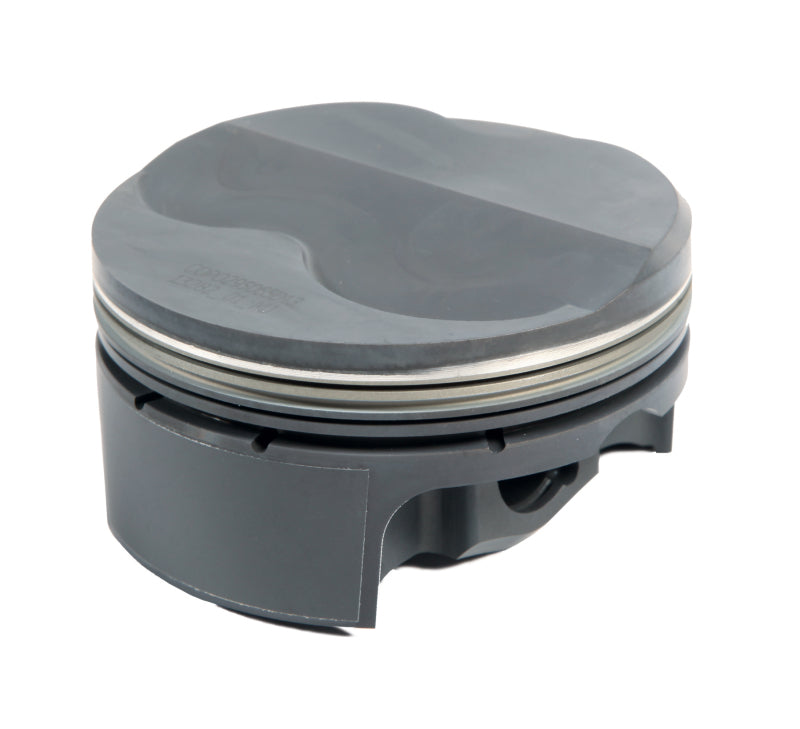

Piston (set) - LS 6.0L & 6.2L DOME
366cid 4.010 x 1.314CH, 3.622stroke,6.125rod,0.927pin,2.0cc,472g,10.8CR, 4032
Piston Material: Forged, 4032
Piston Mass: 472g
Pins Included: Y
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Coating: Phosphate
LCR Material: 9254 Steel
Piston Style: Dome, w/ 2 valve reliefs
File Fit: Y
Crown Volume: 2.0cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
LCR Thickness: 1.0mm
