Magnaflow 5561069 - California Direct Fit Converter 10-12 Jaguar XJ 5.0L

Magnaflow  |  SKU: MAG-5561069
Sale price $1,73300 Regular price $1,90630

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

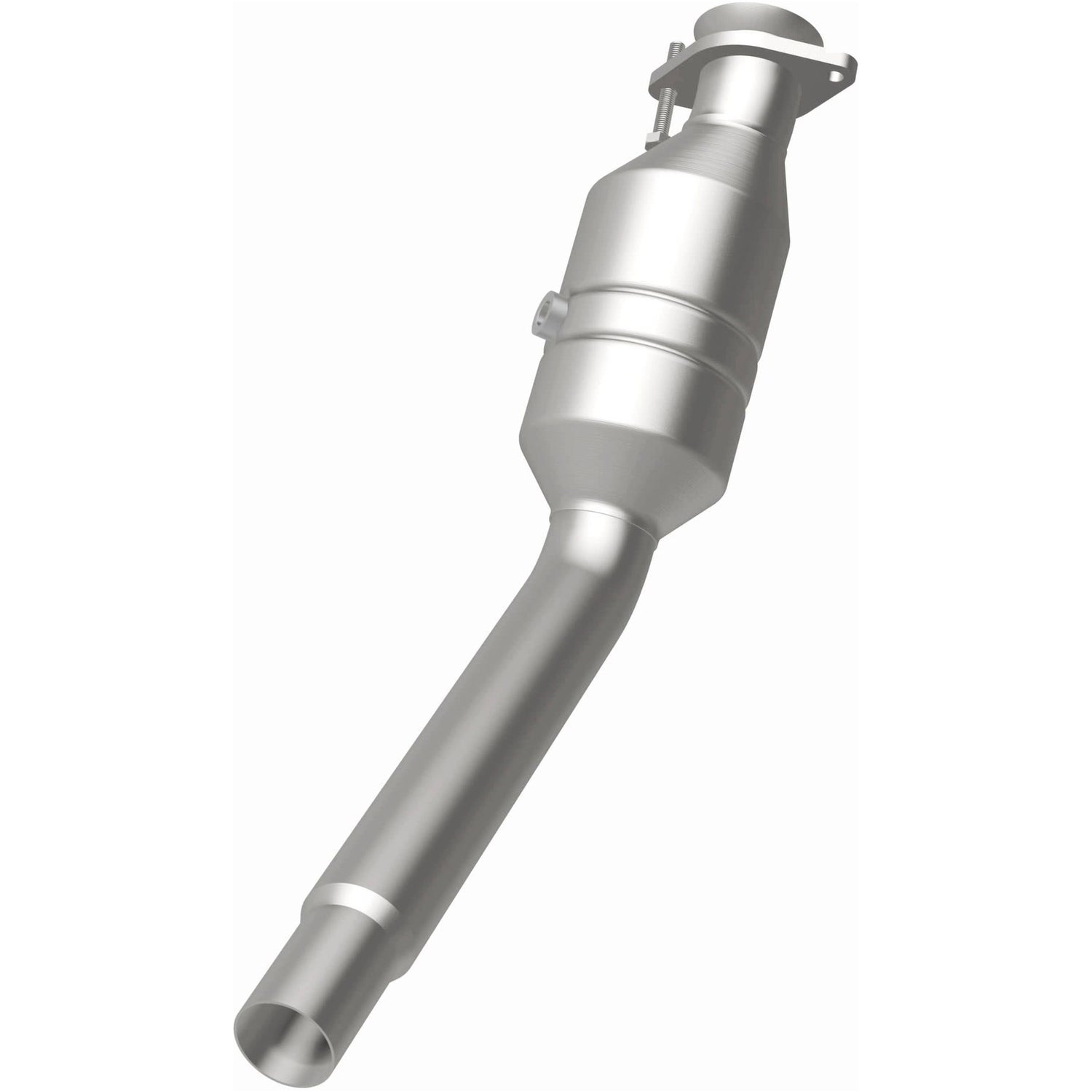

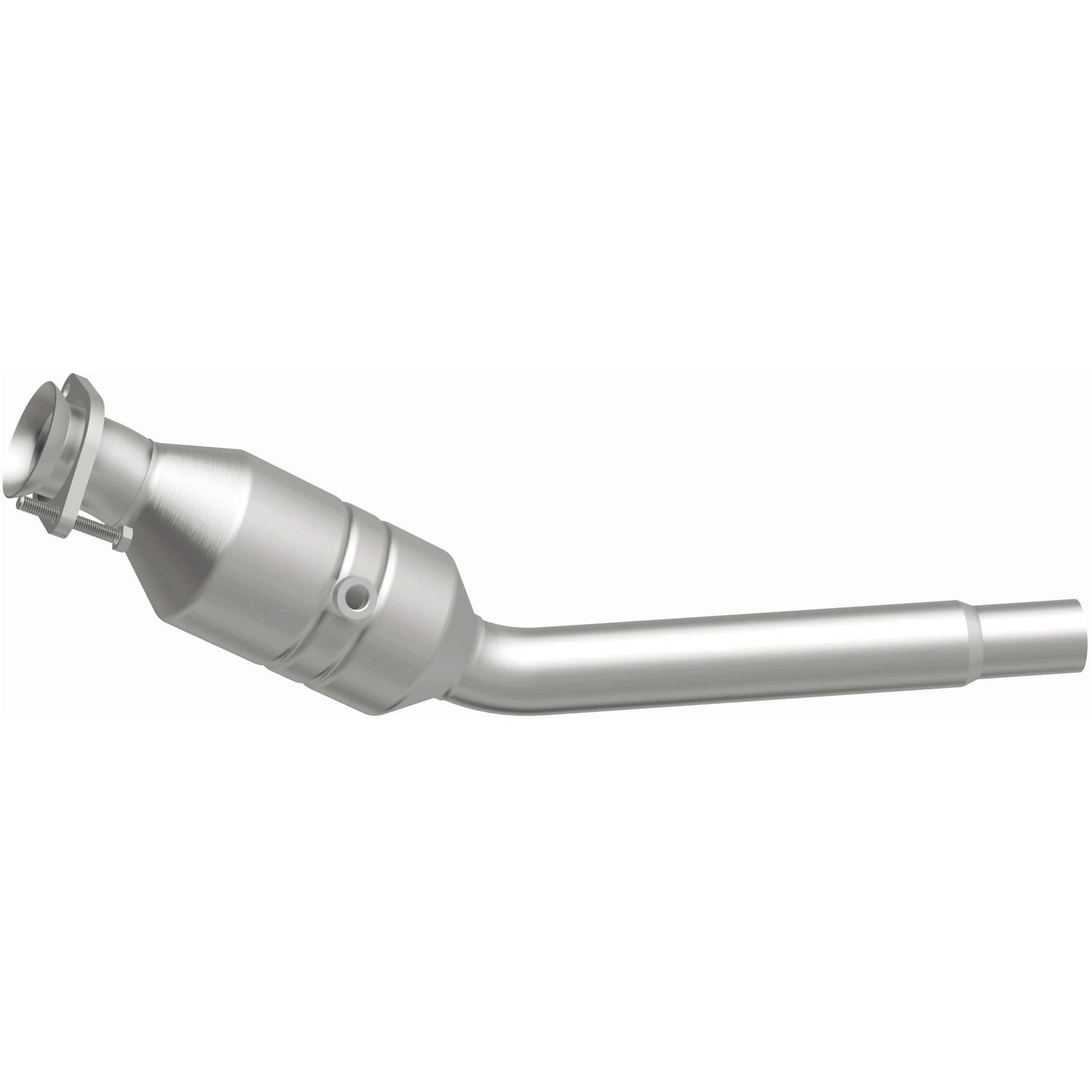

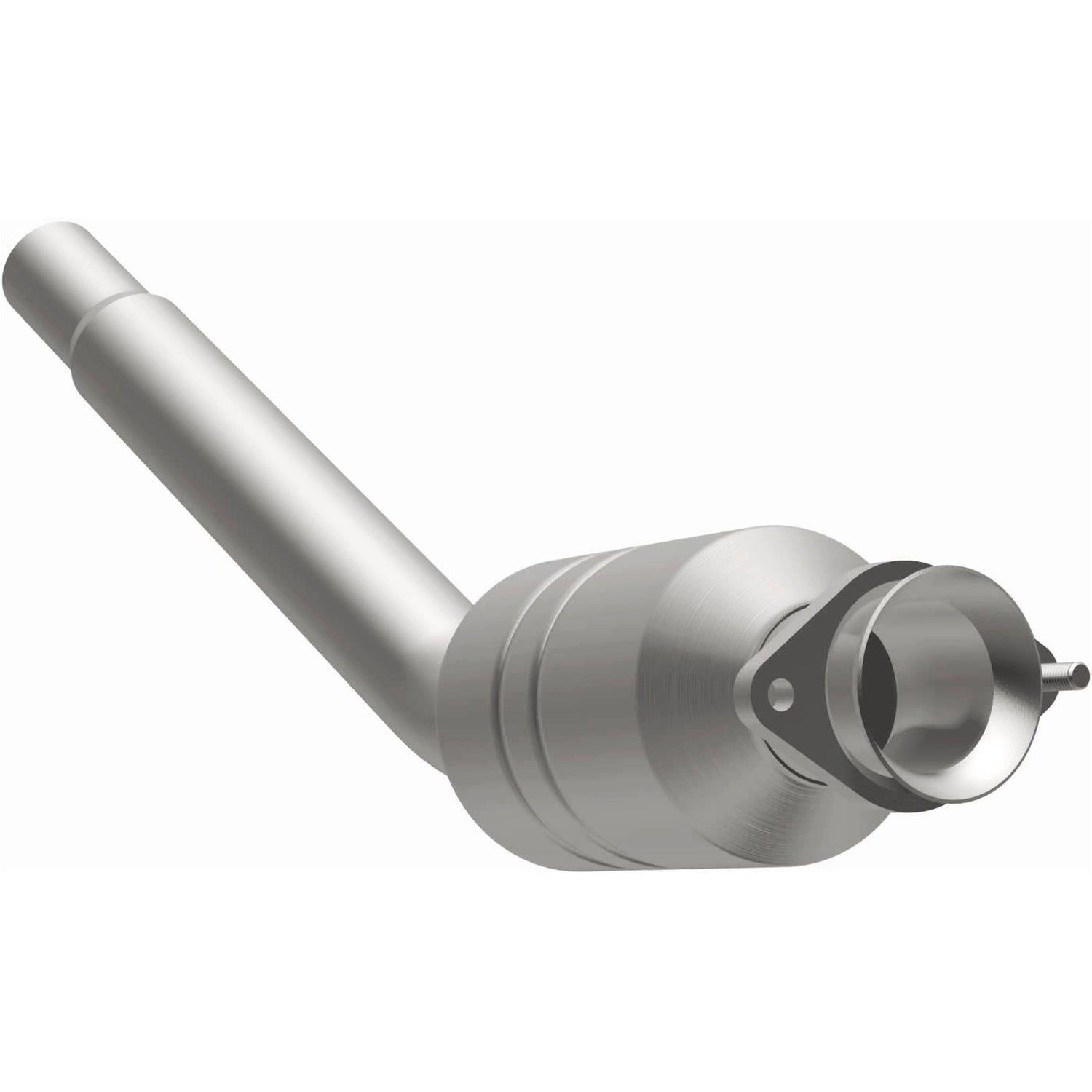

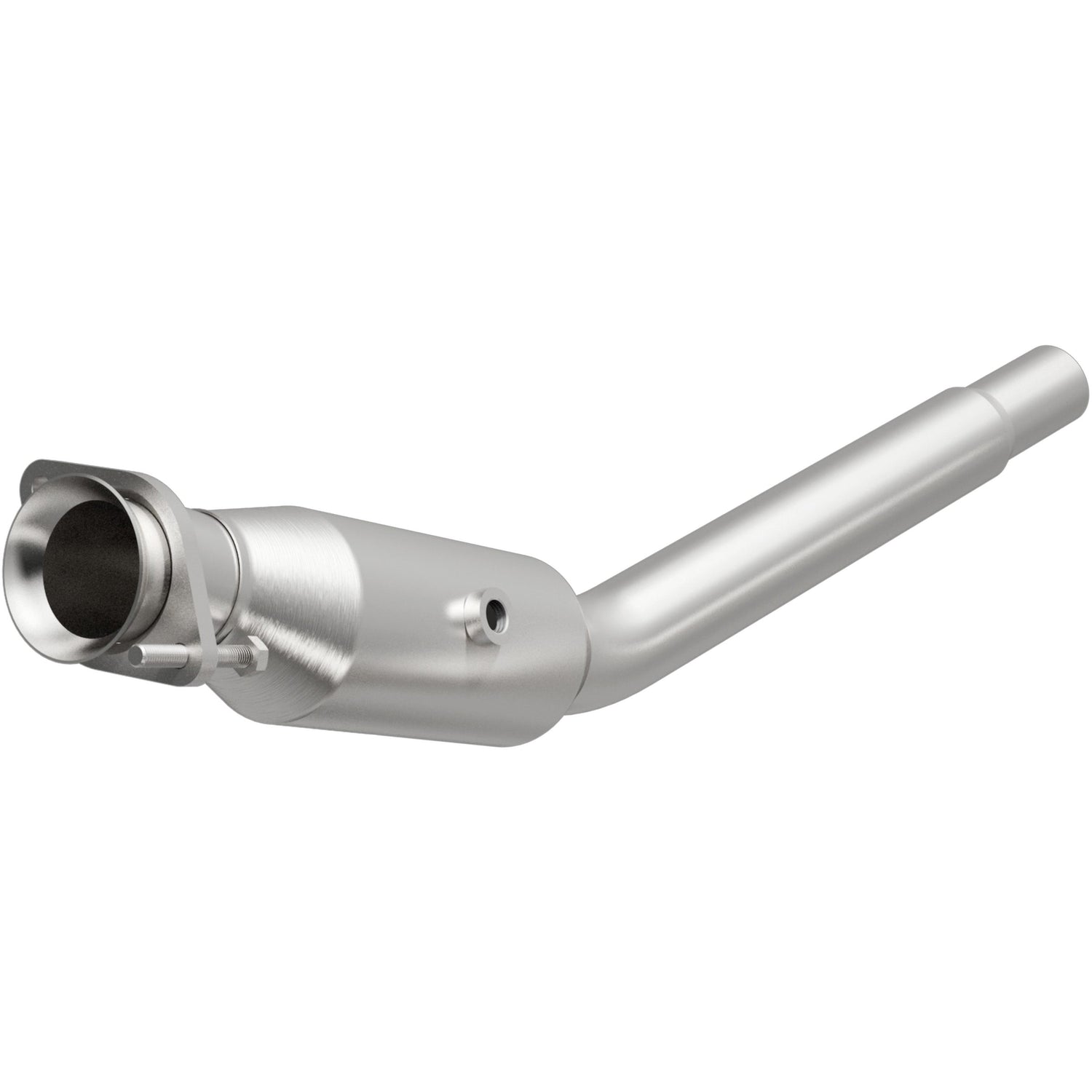

Magnaflow 5561069 - California Direct Fit Converter 10-12 Jaguar XJ 5.0L

California CARB Direct-Fit Catalytic Converter

Magnaflow California Direct-Fit Catalytic Converter

Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5561069. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed specifically for the 2010-2012 Jaguar XJ and interchanges with OE parts C2D27514 and C2D16652, among others. Hardware is included to eliminate the hassle of working with corroded factory parts. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.

  • Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
  • High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
  • Durable 308 stainless steel MIG welds
  • Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
  • Simplifies installation with essential gaskets and hardware being included in the box
  • OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
  • Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
Outlet Mounting Hardware Included: No
Outlet Quantity: 1
Outlet Type: Pipe Connection
Overall Length: 30
Oxygen Sensor Location: Midbed
Outlet Gasket Included: No
New York Certified: Yes
Material: Stainless Steel
Inlet Type: Flange
Inlet Quantity: 1
Sensor Port Count: 1
Series: California
Substrate Material: Ceramic
Tube Material: Stainless Steel
Universal Or Specific Fit: Specific
Air Tube Adaptable: No
Air Tube Count: 0
Body Height: 4
Body Length: 10.375
Body Material: Stainless Steel
Body Shape: Round
Body Type: Spun
Body Width: 4
California Air Resources Board (CARB) Certified: Yes
CARB Executive Order Number: D-193-198
Clamps Included: No
Finish: Stainless
Grade Type: Regular
Hangers Included: No
Heat Shield Attached: No
Inlet Gasket Included: No
Inlet Inside Diameter: 2.5
Inlet Mounting Hardware Included: Yes
Outlet Inside Diameter: 2.5
