Magnaflow 23228 - Direct Fit Catalytic Converter Dodge Dakota 3.9/5.2L 4WD

Magnaflow  |  SKU: MAG-23228
Sale price $41100 Regular price $45210

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

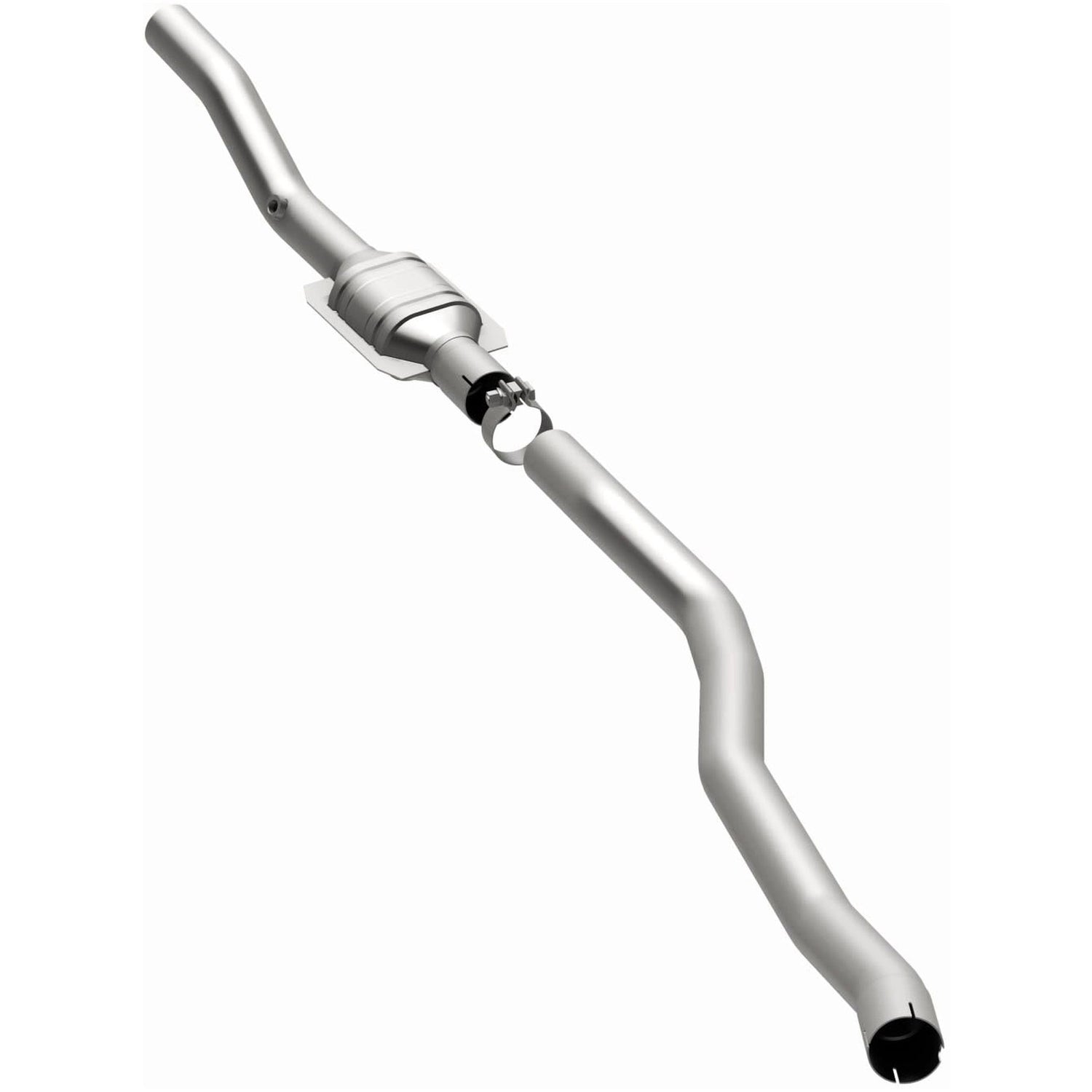

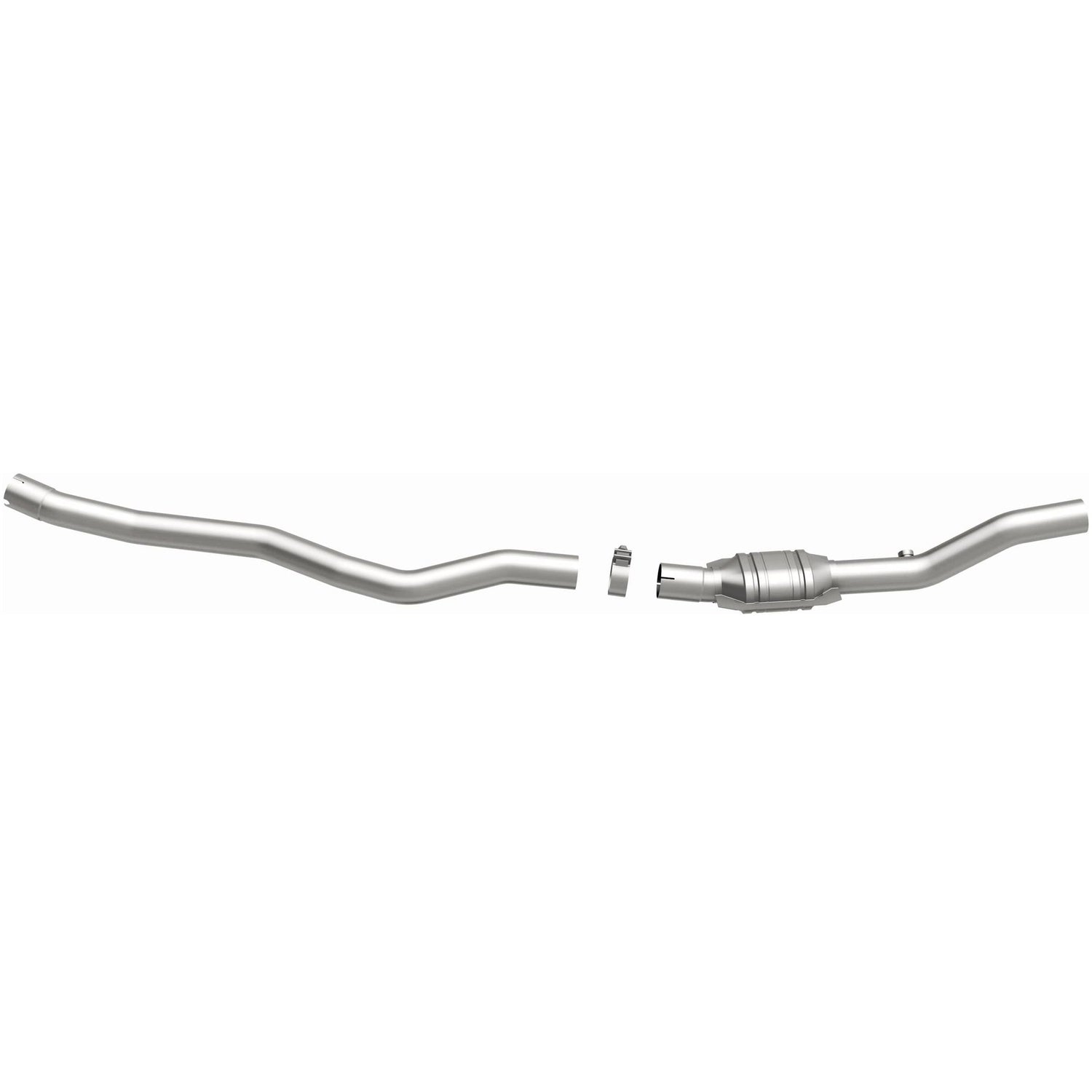

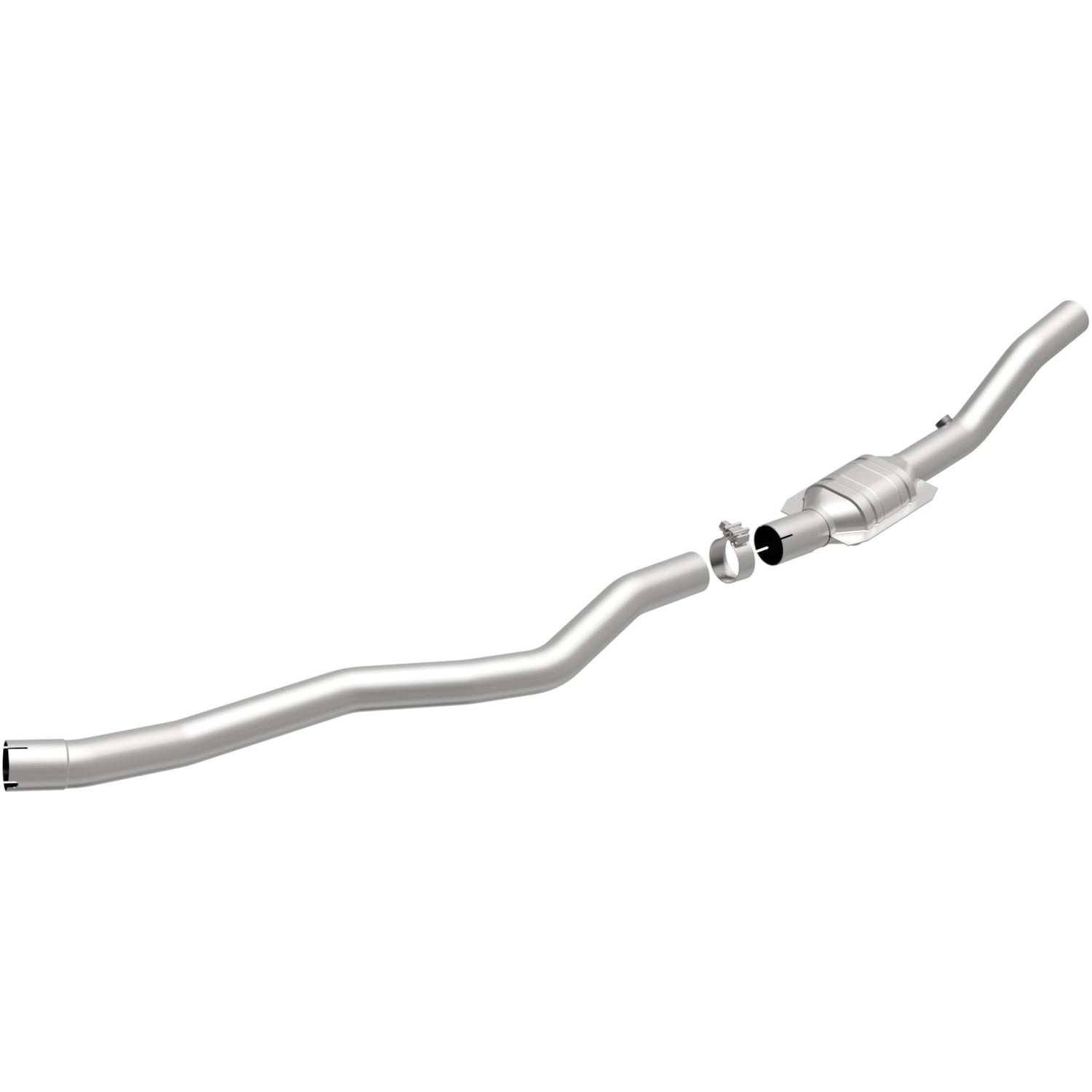

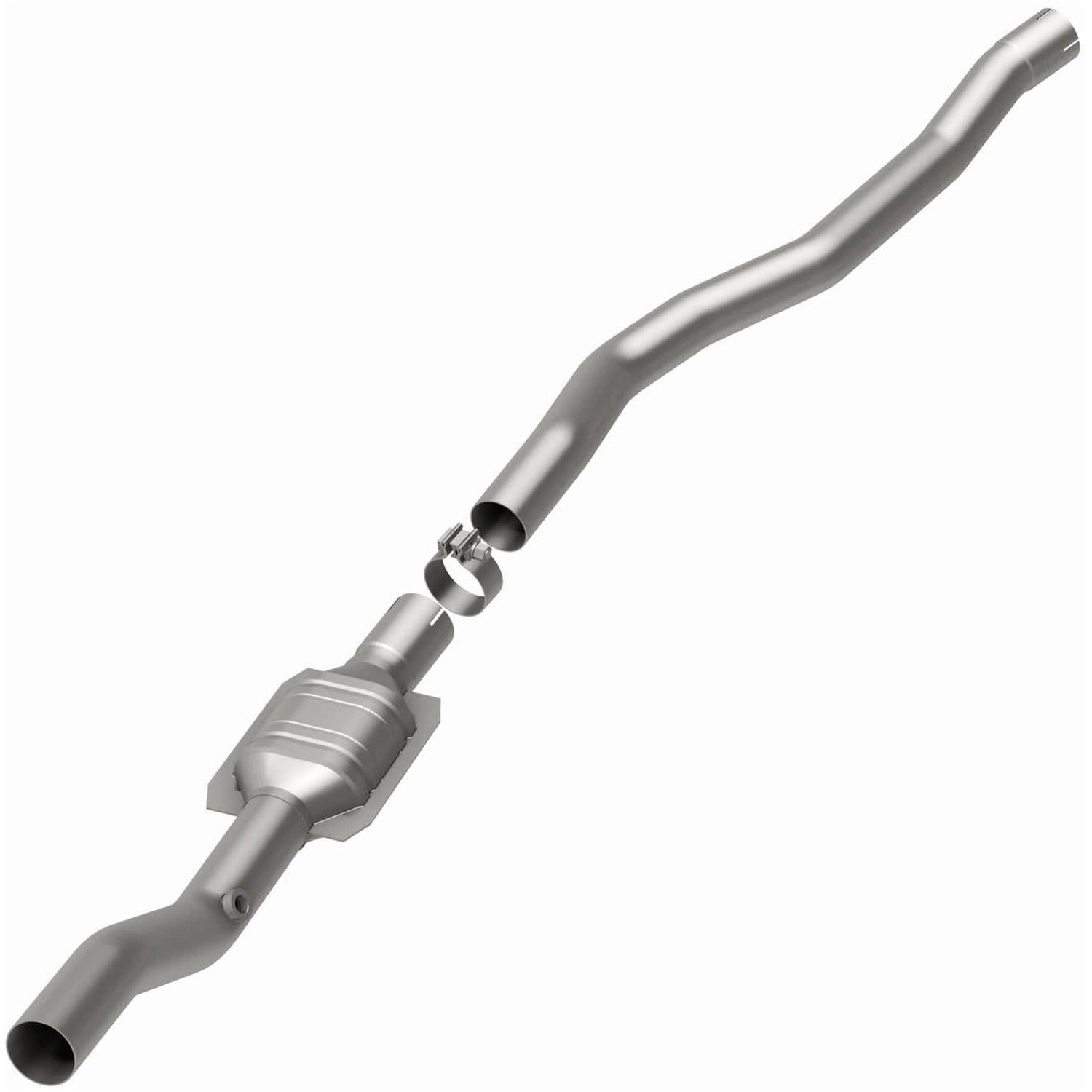

Magnaflow 23228 - Direct Fit Catalytic Converter Dodge Dakota 3.9/5.2L 4WD

Magnaflow HM Grade Direct-Fit Catalytic Converter

Keep the check engine light off with MagnaFlow HM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 23228. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Catalytic Converter is designed to fit the 1994-1996 Dodge Dakota 3.9L & 1995-1996 Dodge Dakota 5.2L. MagnaFlow 23228 includes (1) Torca Clamp and interchanges with OE parts 5019 319AA, 5019 320AA, 5019 320AB, 5019 336AA, 5019 336AB, 5019 436AA, 5019 436AB, 5019 437AA, 5019 437AB, 5019 450AA, 5019 463AA, 5019 463AB, 5019 464AA, 52018861, 52019250, 52019252, 52019258, 52019259, 52019261, 52019262, 52019264, 52019274, 52019518, 52019520, 52019611, 52020272, 52020275, 52021071, 52021270, 52021271, 52021276. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with Federal/EPA Emission systems.

  • Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
  • Simplifies installation with essential gaskets and hardware being included in the box
  • OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
  • Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
  • High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
  • Durable 308 stainless steel MIG welds
  • Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Air Tube Adaptable: No
Air Tube Count: 0
Body Material: Stainless Steel
Body Type: Clam-Shell
California Air Resources Board (CARB) Certified: No
CARB Executive Order Number: Not Applicable
Clamps Included: Yes
Finish: Stainless
Grade Type: Regular
Hangers Included: No
Heat Shield Attached: No
Inlet Gasket Included: No
Inlet Mounting Hardware Included: No
Inlet Type: Flange
Material: Stainless Steel
New York Certified: Yes
Outlet Gasket Included: No
Outlet Mounting Hardware Included: No
Outlet Type: Pipe Connection
Overall Length: 73
Oxygen Sensor Location: Post Converter
Sensor Port Count: 1
Series: HM Grade
Substrate Material: Ceramic
Tube Material: Stainless Steel
Universal Or Specific Fit: Specific
