Magnaflow 19651 - 2021-2026 Ford F-150 Raptor 3.5L | 2023-2026 Ford F-150 5.2L xMOD Series Cat-Back Performance Exhaust System

Magnaflow  |  SKU: MAG-19651
Sale price $4,91699 Regular price $5,40869

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Magnaflow 19651 - 2021-2026 Ford F-150 Raptor 3.5L | 2023-2026 Ford F-150 5.2L xMOD Series Cat-Back Performance Exhaust System

MagnaFlow xMOD Series Black Coated Tips Cat-Back System

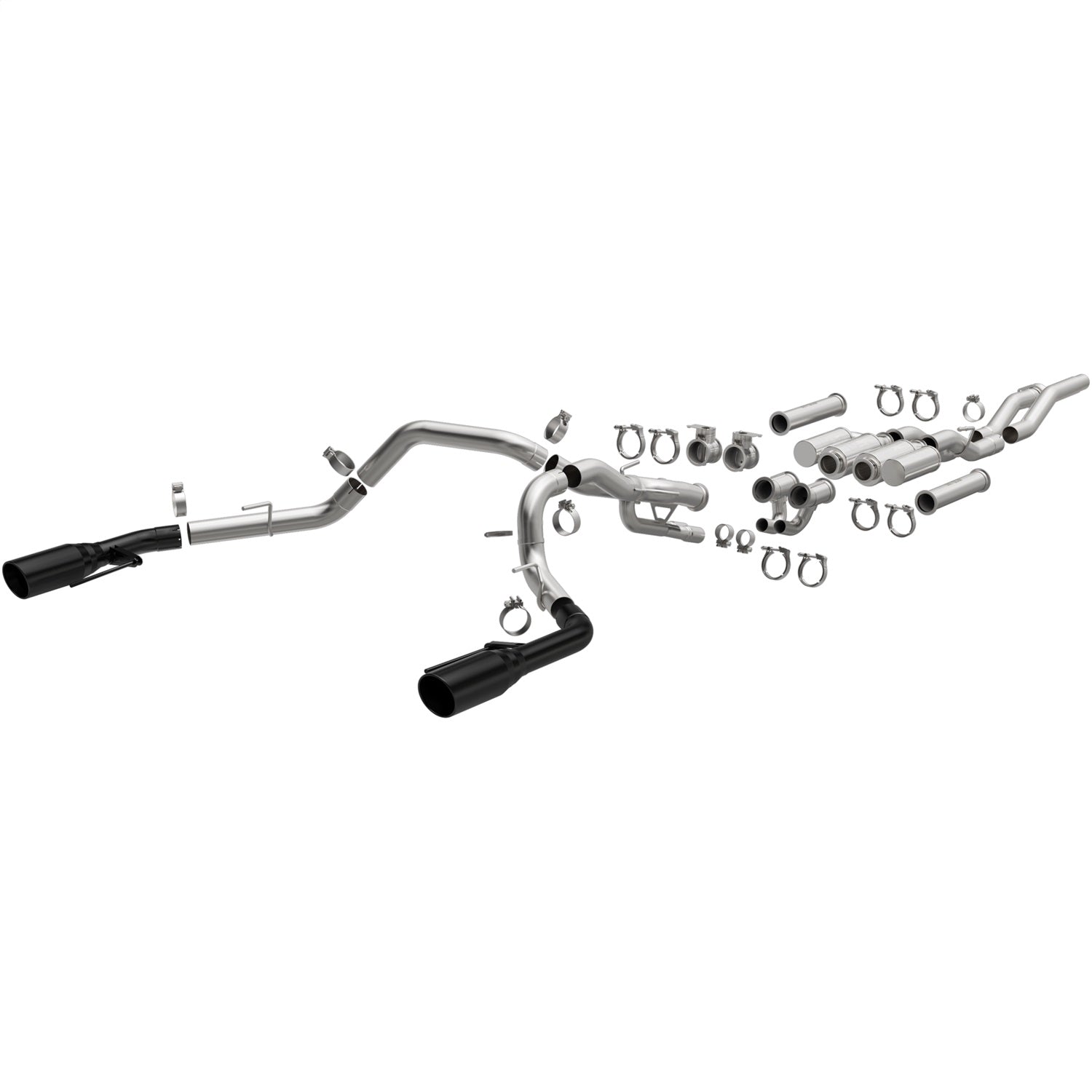

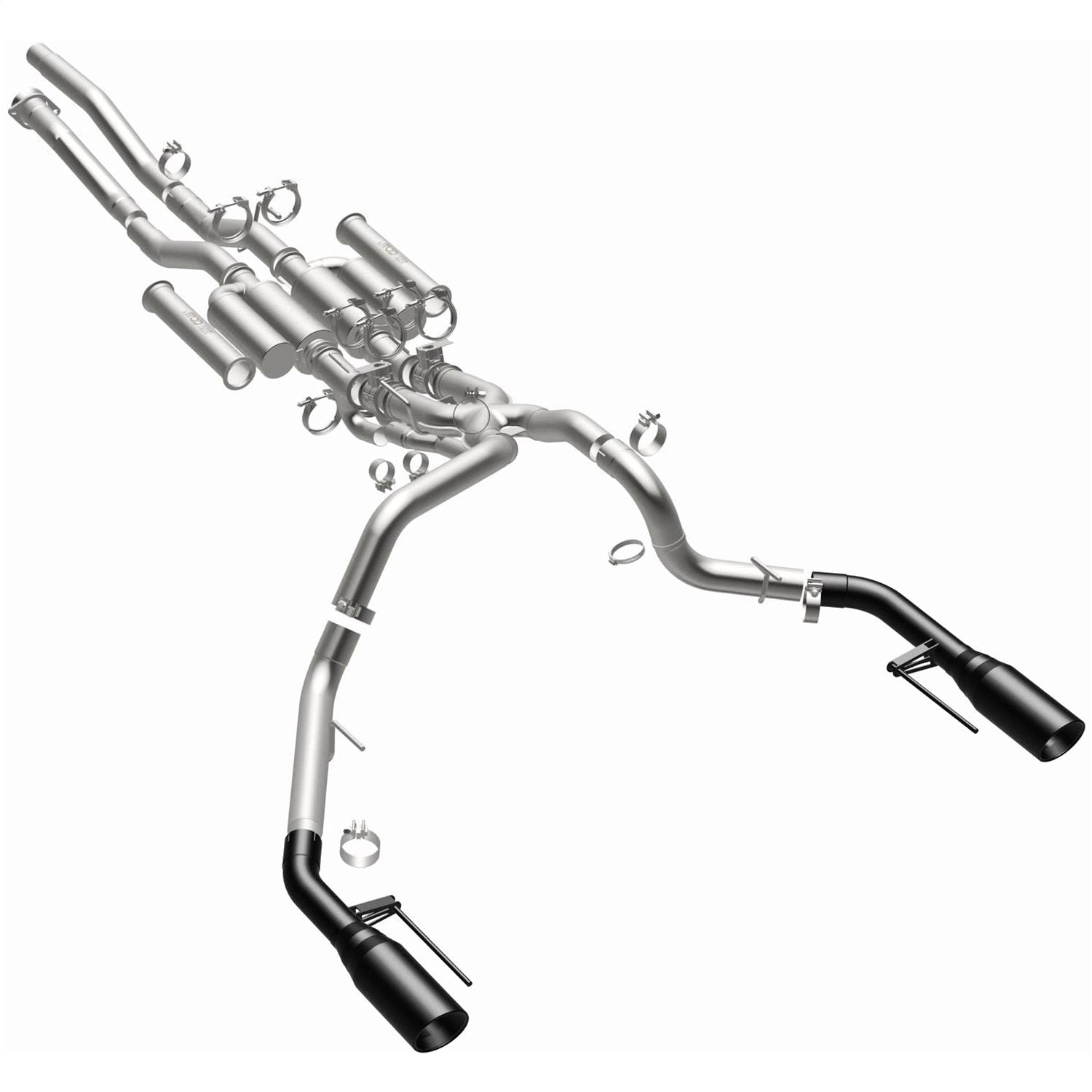

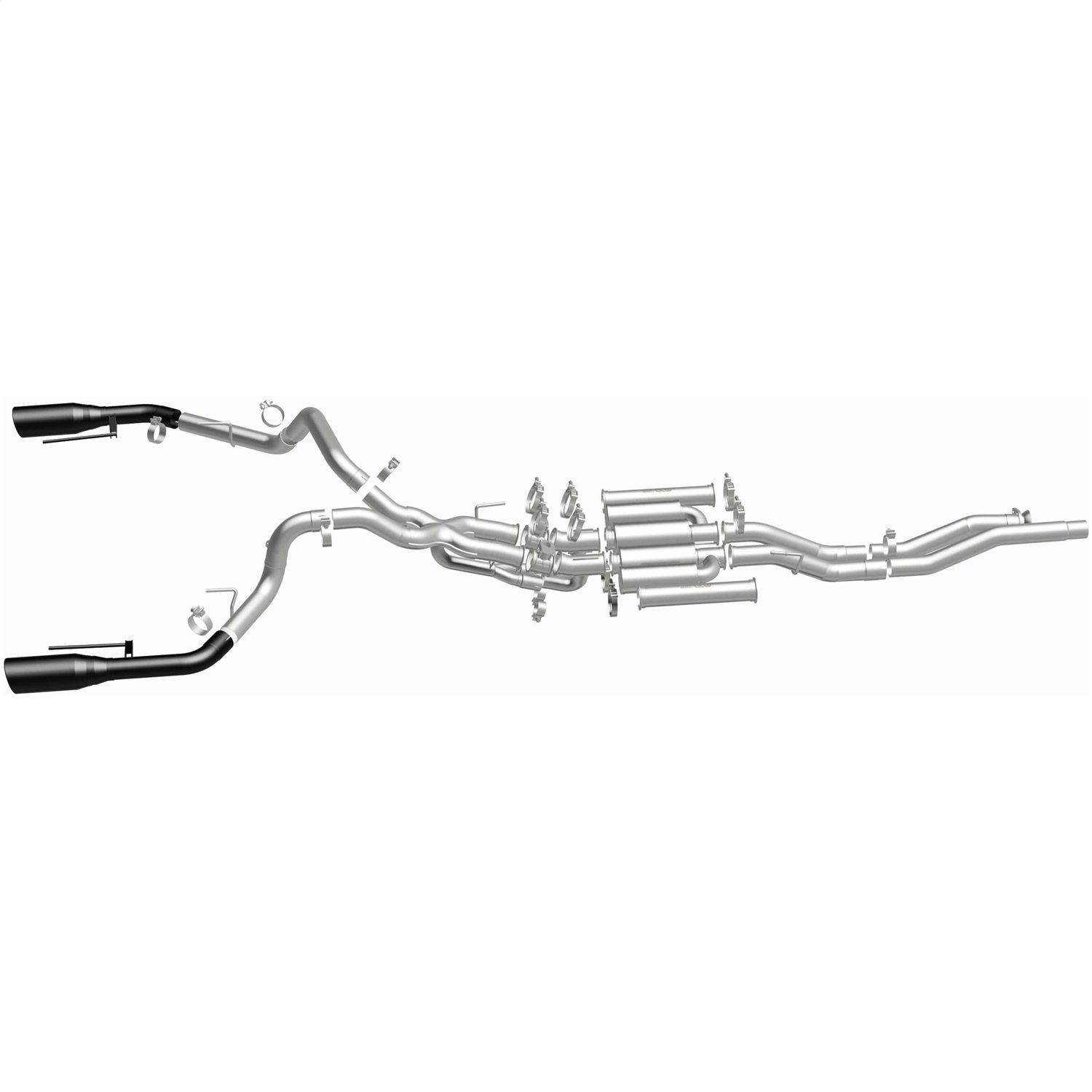

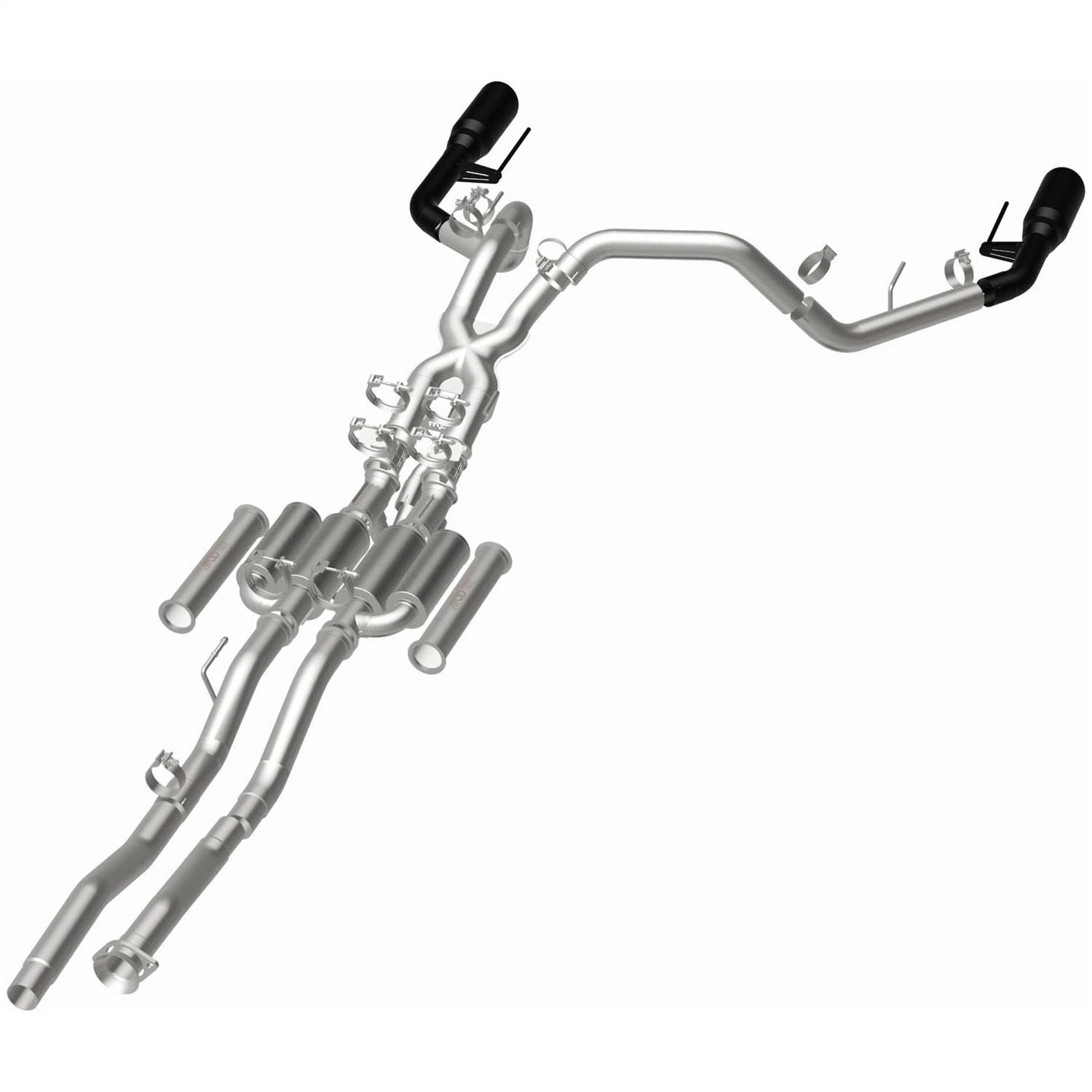

The MagnaFlow Ford F-150 Raptor R xMOD Series Cat-Back Performance Exhaust System is an ultimate exhaust upgrade that can be transformed to your liking to create the exact tone you’re looking for, all while empowering your Ford F-150 Raptor R with dyno-proven performance gains. This feat is accomplished while retaining the full functionality of your truck’s controllable exhaust valves. Exhaust kit #19651 features 3” mandrel bent main piping that replaces your OEM exhaust from near the catalytic converter on back. The piping passes through a set of either 11” NDT (No Drone Technology) muffler modules or 11” xTreme Delete straight pipe modules before passing through the controllable valves and an X-pipe with branch pipe mid-connection and terminating in a dual split rear exit with 5” double-wall angle cut rolled edge black coated tips. #19651 also includes front pipes that can be used to replace the factory front resonated pipes. The NDT muffler modules each include a round straight-through performance muffler connected to an 11” NDT reflection chamber that’s tuned to minimize the droning noises that can otherwise occur at cruising speeds. Meanwhile, the xTreme Delete modules turn your exhaust into a full-throated straight-pipe setup, perfect for track or off-road use. The xTreme Delete modules are the real deal though, so please check to ensure compliance with local noise regulations. This exhaust system is secured with racing-bred quick release V-band clamps, which facilitate easy installation and make swapping modules quick and hassle free. This performance exhaust system is made of durable stainless steel backed by MagnaFlow’s limited lifetime warranty.

  • No-Drone-Technology allows for a quiet cabin
  • xTreme Delete Modules for a straight-pipe setup
  • Configurable sound from mild to wild
Catalytic Converter Included: No
Clamping Type: Round Band
Clamping Type: V Band
Clamps Included: Yes
Exhaust Tip Connection: Welded-On

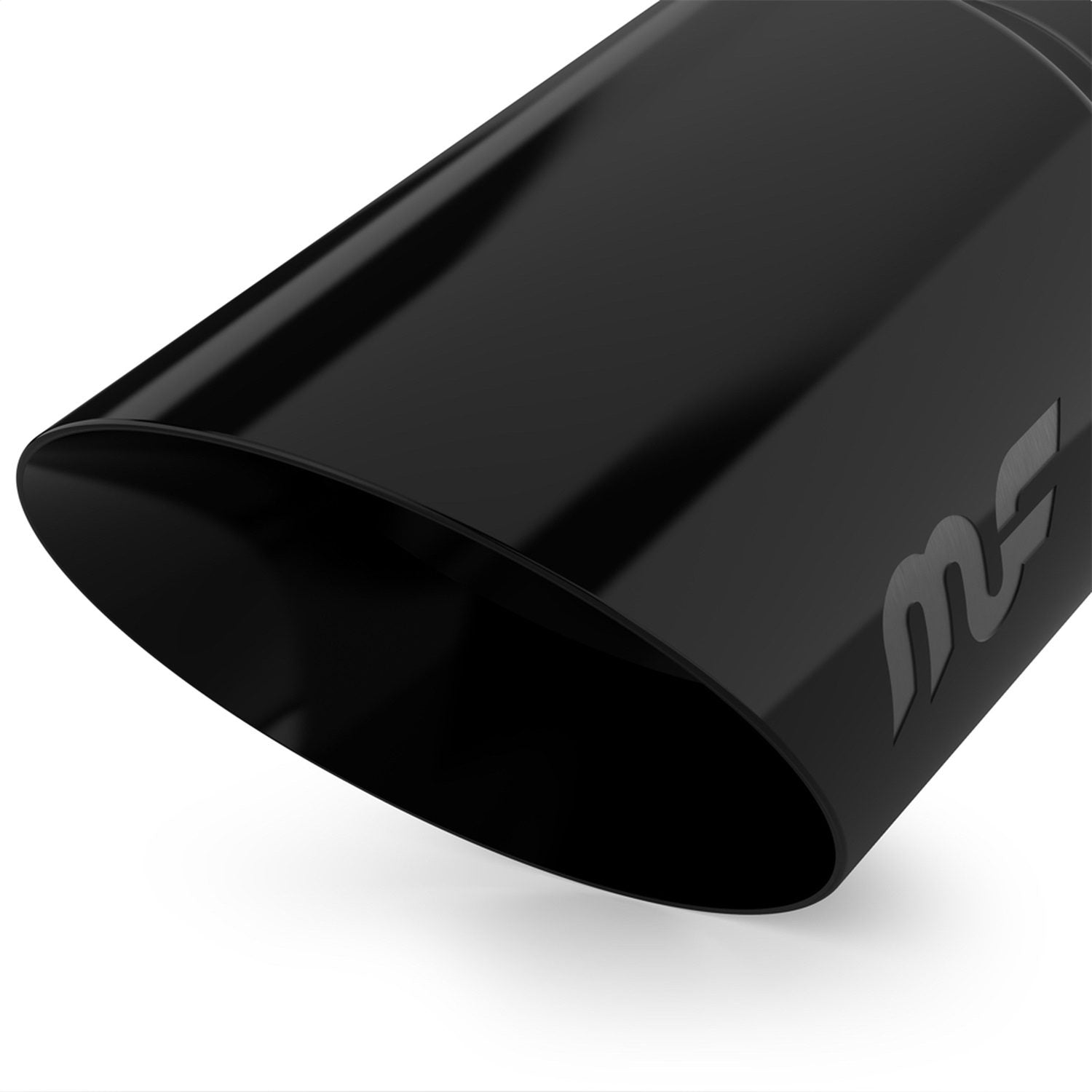

Exhaust Tip Cut: Angle Cut
Exhaust Tip Diameter: 5
Exhaust Tip Edge: Rolled Edge
Main Piping Diameter: 3
Mounting Bracket Included: No
Muffler (Inside) Body Height: 4
Muffler (Inside) Body Length: 11
Muffler (Inside) Body Width: 4

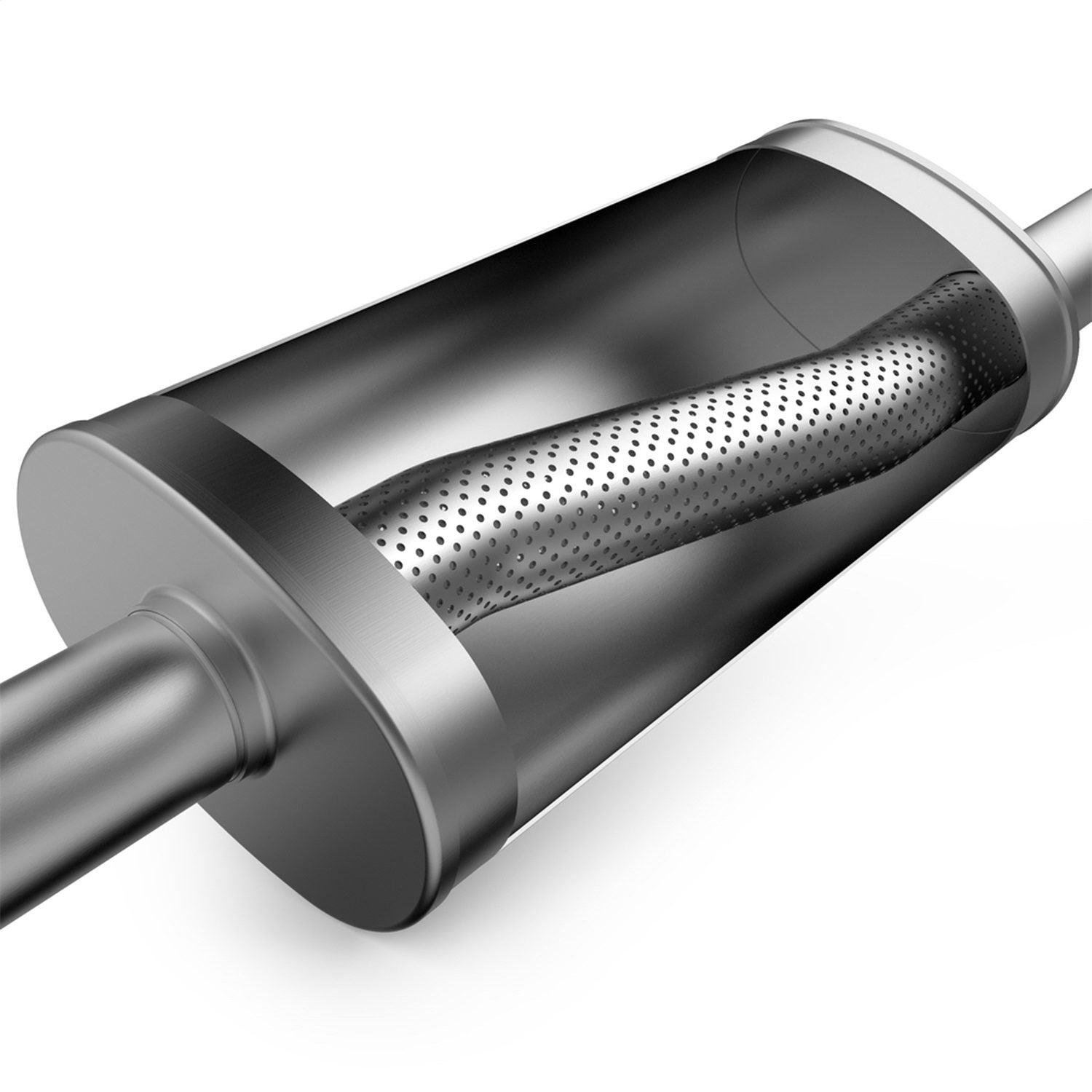

Muffler (Inside) Type: Straight-Through
Muffler (Outside) Body Height: 5
Muffler (Outside) Body Length: 11
Muffler (Outside) Body Width: 5
Muffler (Outside) Type: Tuned Chamber
Muffler Body Material: Stainless Steel
Muffler Finish: Brushed
Muffler Quantity: 4
Muffler Type: Straight-Through;Tuned Chamber
Pipe Material: Stainless Steel
Series: xMod
Type: Cat-Back
Valve Included: Yes
Valve Type: Actuated
Exhaust Tip Finish: Black Coated
Exhaust Tip Intercooled: No
Exhaust Tip Length: 14.25
Exhaust Tip Material: Stainless Steel
Exhaust Tip Quantity: 2
Exhaust Tip Resonated: No
Exhaust Tip Shape: Round
Exhaust Tip Wall: Double Wall
Exit Style: Dual Split Rear
Gasket Or Seal Included: No
Hangers Included: Yes
Inlet Type: Bolt-On;Clamp-On
