Leed Brakes FC0025HK - Manual Hydraulic Kit with pre-bent lines and adjustable combination valve

Leed Brakes  |  SKU: HBCJ-FC0025HK
$20999 $23099
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

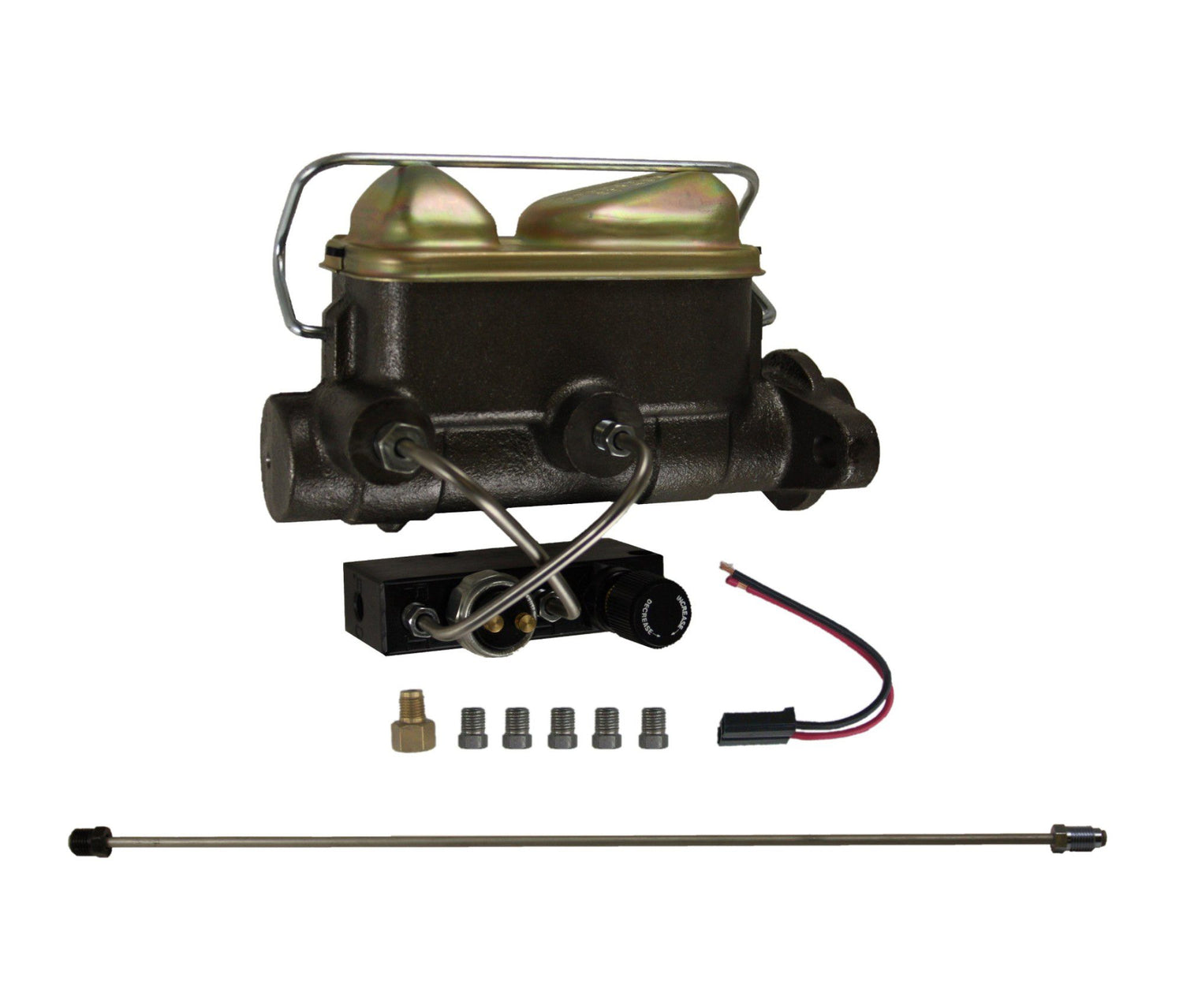

Leed Brakes FC0025HK - Manual Hydraulic Kit with pre-bent lines and adjustable combination valve

Master Cylinder - 1 in Bore - Dual Integral Reservoir - Iron - Natural - Ford Fullsize Car 1957-68 - Kit

Leed Brakes manual hydraulic kits are designed to add dual bowl disc brake master cylinders to specific vehicle applications. They can be used in conjunction with many disc brake kits and include all the parts needed for your vehicle.

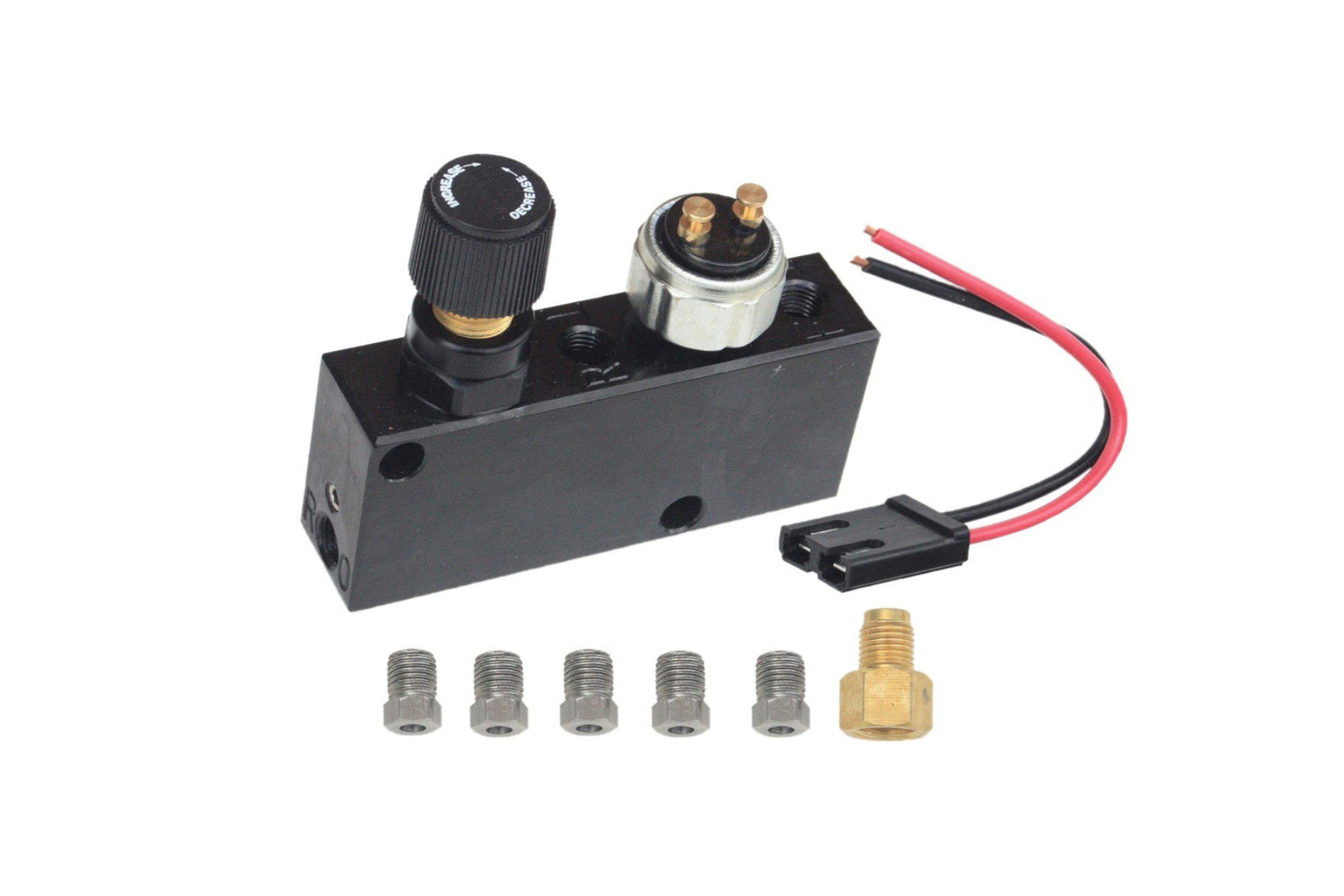

Upgrade your car to a 1 in. dual bore master cylinder with our quick install kit. This kit allows you to upgrade your factory single bowl manual brake car to dual bowl manual brakes in no time. In this kit you receive the brake line necessary to route from the new master cylinder to your factory distribution block. Additionally we include an adjustable combo. This adjustable valve allows you to fine tune the amount of pressure your rear brakes receive in order to prevent rear wheel lockup. For those cars that require a pressure switch to activate your tail lights, this combo block has one built in for an easy connection. A great kit with a factory look and easy installation!

  • All new high quality components
Status: Existing
Secondary Outlet Thread Size: 3/8" - 24
Mounting Bracket Included: No
Secondary Outlet Thread Type Standard: UNF
Piston Quantity: 2
Reservoir Material: Cast Iron
Dust Boot Included: No
Mounting Hardware Included: No
Grade Type: Standard Replacement
Gasket Or Seal Included: Yes
Mounting Hole Quantity: 2
Master Cylinder Bore Diameter: 1.00
Bleeder Screw Included: No
Brake Booster Included: No
Port Quantity: 2
Master Cylinder Cap Included: Yes
Master Cylinder Material: Cast Iron
Push Rod Included: No
Reservoir Included: Yes
Reservoir Type: Dual
Bleeder Hoses Included: Yes
Sensor Included: No
Mounting Hole Diameter: .400
TLE: LEED Brakes Manual Hydraulic Kit with pre-bent lines and adjustable combination valve
Primary Outlet Thread Type Standard: UNF
Brake Lines Included: From Master Cylinder to Valve
Primary Outlet Thread Size: 1/2" - 20
Brake Pressure Switch Required: No
Primary Outlet Flare Type: Inverted
Secondary Outlet Flare Type: Inverted
Primary Bore Diameter: 1.00
Secondary Bore Diameter: 1.00
Reservoir Style: Integral
Brake Booster Included: No
Master Cylinder Bore Size: 1 in
Bore Type: Straight
Master Cylinder Finish: Natural
Master Cylinder Included: Yes
