JE Pistons JXC0F4-3199-0 - Ring Sets 1.0-1.2-2.8-81.25MM

JE Pistons  |  SKU: BHXG-JXC0F4-3199-0
Sale price $18099 Regular price $19909

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

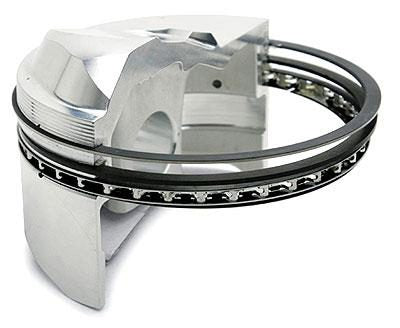

JE Pistons JXC0F4-3199-0 - Ring Sets 1.0-1.2-2.8-81.25MM

Piston Ring Set, 4 Cyl., File Fit, 0.0394 in. Carbon Steel Chrome Top Ring, 0.0472 in. Iron Phosphate Second Ring, 0.1102 in. Carbon Steel Chrome Standard Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Corrosive resistant coating to enhance oil retention and help prevent scuffing during break in
Bore Diameter: 3.199
Ring Type: 3 Ring
File Fit: Yes
Top Ring Axial Height: 0.80
Top Ring Radial Width: 0.127
Top Compression Ring Thickness: 0.0394
Top Ring Facing Material: Chrome
Top Ring Material: Carbon Steel
Top Ring Shape: Barrel Face, Back Cut, Neutral
Second Ring Axial Height: 1.20
Second Ring Radial Width: 0.135
Second Compression Ring Thickness: 0.0472
Second Ring Facing Material: Phosphate
Second Ring Material: Iron
Second Ring Shape: Taper Face, D-wall, Reverse Torsional
Oil Ring Axial Height: 2.80
Oil Ring Radial Width: 0.130
Oil Ring Thickness: 0.110
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Third Ring Shape: Full Seal, Flex Vent
Ring Set Thickness: 0.0394 in. Top x 0.0472 in. 2nd x 0.110 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
Bore Diameter - Web: 3.199 IN / 81.25 MM
Engine Type: ICE
