JE Pistons JG9004-3209 - Ring Sets 1.2-1.5-3.0-81.50

JE Pistons  |  SKU: BHXG-JG9004-3209
Sale price $18399 Regular price $20239

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

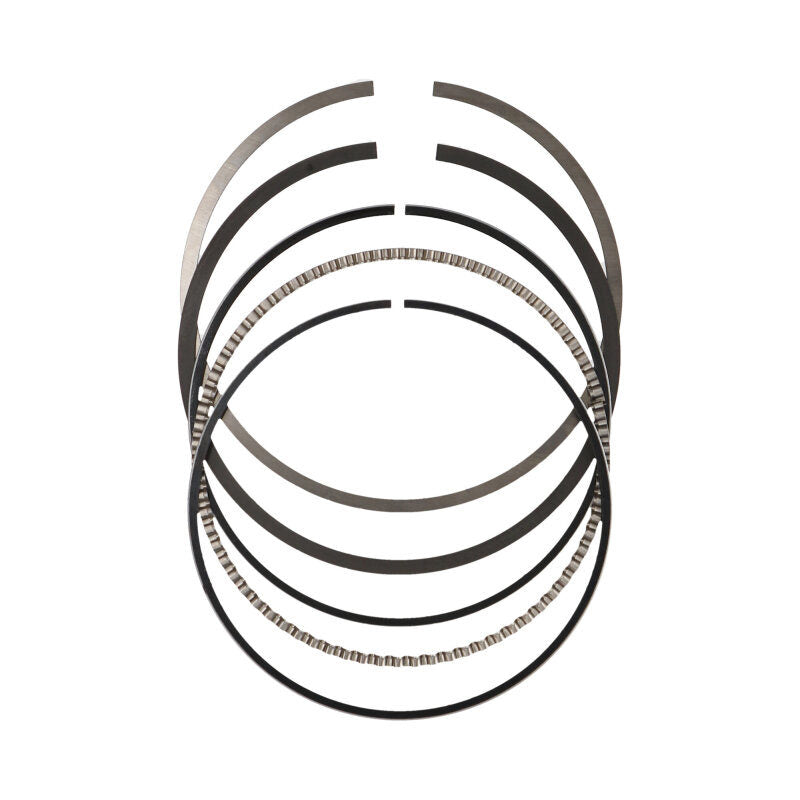

JE Pistons JG9004-3209 - Ring Sets 1.2-1.5-3.0-81.50

Piston Ring Set, 4 Cyl., File Fit, 0.0472 in. Carbon Steel Nitride Top Ring, 0.0591 in. Iron Ferroxide Second Ring, 0.1181 in. Carbon Steel Nitride Low Tension Oil Ring, Each.

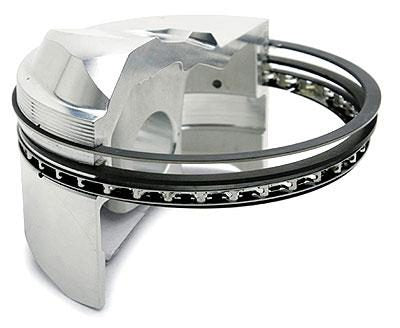

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Highest quality ductile iron top ring with plasma-moly inlay
  • Taper faced reverse torsional second rings
  • combined with standard or low tension oil rings
Oil Ring Axial Height: 3.00
Oil Ring Radial Width: 0.117
Oil Ring Thickness: 0.118
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Third Ring Shape: SS50U Style
Ring Set Thickness: 0.0472 in. Top x 0.0591 in. 2nd x 0.118 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
Bore Diameter - Web: 3.209 IN / 81.51 MM
Engine Type: ICE
Bore Diameter: 3.209
Ring Type: 3 Ring
File Fit: Yes
Top Ring Axial Height: 1.20
Top Ring Radial Width: 0.119
Top Compression Ring Thickness: 0.0472
Top Ring Facing Material: Nitride
Top Ring Material: Carbon Steel
Top Ring Shape: Barrel Face, Back Cut, Neutral
Second Ring Axial Height: 1.50
Second Ring Radial Width: 0.139
Second Compression Ring Thickness: 0.0591
Second Ring Facing Material: Ferroxide
Second Ring Material: Iron
Second Ring Shape: Taper Face, Neutral
