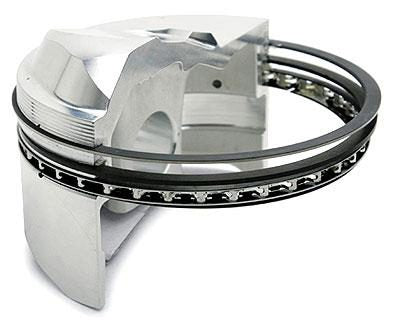

JE Pistons JG1001-3209 - Ring Sets 1.0-1.2-2.8-3.209

JE Pistons  |  SKU: BHXG-JG1001-3209
Sale price $4599 Regular price $5059

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

NON-CANCELLABLE OR RETURNABLE ITEM:
This is because the item is either a clearance item, or it may be made to order. Ask all questions before ordering.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

JE Pistons JG1001-3209 - Ring Sets 1.0-1.2-2.8-3.209

Piston Ring Set, 1 Cyl., File Fit, 0.0394 in. Carbon Steel Nitride Top Ring, 0.0472 in. Ductile Iron Phosphate Second Ring, 0.1102 in. Carbon Steel Nitride Low Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Highest quality ductile iron top ring with plasma-moly inlay
  • Taper faced reverse torsional second rings
  • 3 piece oil assembly
  • Flex-vent spacer
Bore Diameter: 3.209
File Fit: Yes
Top Compression Ring Thickness: 0.0394
Top Ring Facing Material: Nitride
Top Ring Material: Carbon Steel
Second Compression Ring Thickness: 0.0472
Second Ring Facing Material: Phosphate
Second Ring Material: Ductile Iron
Oil Ring Thickness: 0.110
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Ring Set Thickness: 0.0394 in. Top x 0.0472 in. 2nd x 0.110 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
Engine Type: ICE
Bore Diameter - Web: 3.209 IN / 81.51 MM
