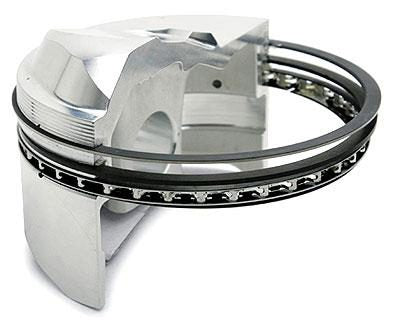

JE Pistons J95008-4030-3 - Ring Sets 1.2-1/16-3mm GOLDCUP

JE Pistons  |  SKU: BHXG-J95008-4030-3
Sale price $54299 Regular price $59729

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

JE Pistons J95008-4030-3 - Ring Sets 1.2-1/16-3mm GOLDCUP

Piston Ring Set, 8 Cyl., File Fit, 0.0472 in. Stainless Steel Titanium Nitride Top Ring, 0.064 in. Iron Phosphate Second Ring, 0.1181 in. Carbon Steel Chrome Low Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Corrosive resistant coating to enhance oil retention and help prevent scuffing during break in
Third Ring Material: Carbon Steel
Third Ring Shape: Full Seal, Flex Vent
Ring Set Thickness: 0.0472 in. Top x 0.0640 in. 2nd x 0.118 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
Bore Diameter - Web: 4.030 IN / 102.36 MM
Engine Type: ICE
Bore Diameter: 4.030
Ring Type: 3 Ring
File Fit: Yes
Top Ring Axial Height: 1.20
Top Ring Radial Width: 0.152
Top Compression Ring Thickness: 0.0472
Top Ring Facing Material: Titanium Nitride
Top Ring Material: Stainless Steel
Top Ring Shape: Barrel Face, Back Cut, Neutral
Second Ring Axial Height: 1/16
Second Ring Radial Width: 0.187
Second Compression Ring Thickness: 0.0640
Second Ring Facing Material: Phosphate
Second Ring Material: Iron
Second Ring Shape: Taper Face, D-wall, Reverse Torsional
Oil Ring Axial Height: 3.00
Oil Ring Radial Width: 0.152
Oil Ring Thickness: 0.118
Third Ring Facing Material: Carbon Steel
