JE Pistons J85008-4468 - Ring Sets 2.0-5/64-3/16 SET

JE Pistons  |  SKU: BHXG-J85008-4468
Sale price $29799 Regular price $32779

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

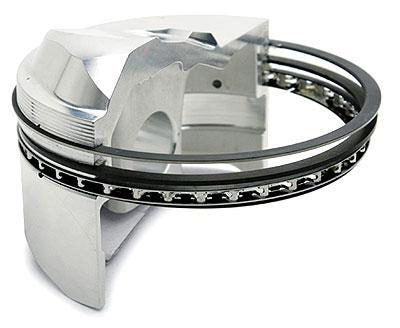

JE Pistons J85008-4468 - Ring Sets 2.0-5/64-3/16 SET

Piston Ring Set, 8 Cyl., File Fit, 0.0787 in. Ductile Iron Plasmy Moly Top Ring, 0.078 in. Iron Phosphate Second Ring, 0.188 in. Carbon Steel Chrome Low Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Hard, wear resistant surface
  • Barrel faced ring face maintains a very low coefficient of friction
Top Ring Radial Width: 0.200
Top Compression Ring Thickness: 0.0787
Top Ring Facing Material: Plasma Moly
Top Ring Material: Ductile Iron
Top Ring Shape: Flat Face, Torsional
Second Ring Axial Height: 5/64
Second Ring Radial Width: 0.200
Second Compression Ring Thickness: 0.0780
Second Ring Facing Material: Phosphate
Second Ring Material: Iron
Second Ring Shape: Taper Face, D-wall, Reverse Torsional
Oil Ring Axial Height: 3/16
Oil Ring Radial Width: 0.150
Oil Ring Thickness: 0.188
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Third Ring Shape: Full Seal, Flex Vent
Ring Set Thickness: 0.0787 in. Top x 0.0780 in. 2nd x 0.188 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
Bore Diameter - Web: 4.468 IN / 113.49 MM
Engine Type: ICE
Bore Diameter: 4.468
Ring Type: 3 Ring
File Fit: Yes
Top Ring Axial Height: 2.00
