JE Pistons J640F4-3307 - Ring Sets 1.5-1.5-4mm-3.307

JE Pistons  |  SKU: BHXG-J640F4-3307
Sale price $15099 Regular price $16609

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

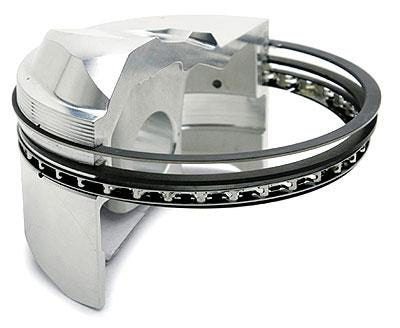

JE Pistons J640F4-3307 - Ring Sets 1.5-1.5-4mm-3.307

Piston Ring Set, 4 Cyl., File Fit, 0.0591 in. Ductile Iron Plasmy Moly Top Ring, 0.0591 in. Iron Phosphate Second Ring, 0.1575 in. Carbon Steel Chrome Standard Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Highest quality ductile iron top ring with plasma-moly inlay
  • Taper faced reverse torsional second rings
  • combined with standard or low tension oil rings
Bore Diameter - Web: 3.307 IN / 84.00 MM
Engine Type: ICE
Bore Diameter: 3.307
Ring Type: 3 Ring
File Fit: Yes
Top Ring Axial Height: 1.50
Top Ring Radial Width: 0.141
Top Compression Ring Thickness: 0.0591
Top Ring Facing Material: Plasma Moly
Top Ring Material: Ductile Iron
Top Ring Shape: Barrel Face, D-wall, Torsional
Second Ring Axial Height: 1.50
Second Ring Radial Width: 0.157
Second Compression Ring Thickness: 0.0591
Second Ring Facing Material: Phosphate
Second Ring Material: Iron
Second Ring Shape: Taper Face, D-wall, Reverse Torsional
Oil Ring Axial Height: 4.00
Oil Ring Radial Width: 0.135
Oil Ring Thickness: 0.158
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Third Ring Shape: Full Seal, Flex Vent
Ring Set Thickness: 0.0591 in. Top x 0.0591 in. 2nd x 0.158 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
