JE Pistons 379435 - JE ULTRA SERIES - 1999-07 Suzuki GSX 130 Piston Kit

JE Pistons  |  SKU: BHXG-379435
Sale price $1,27499 Regular price $1,40249

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

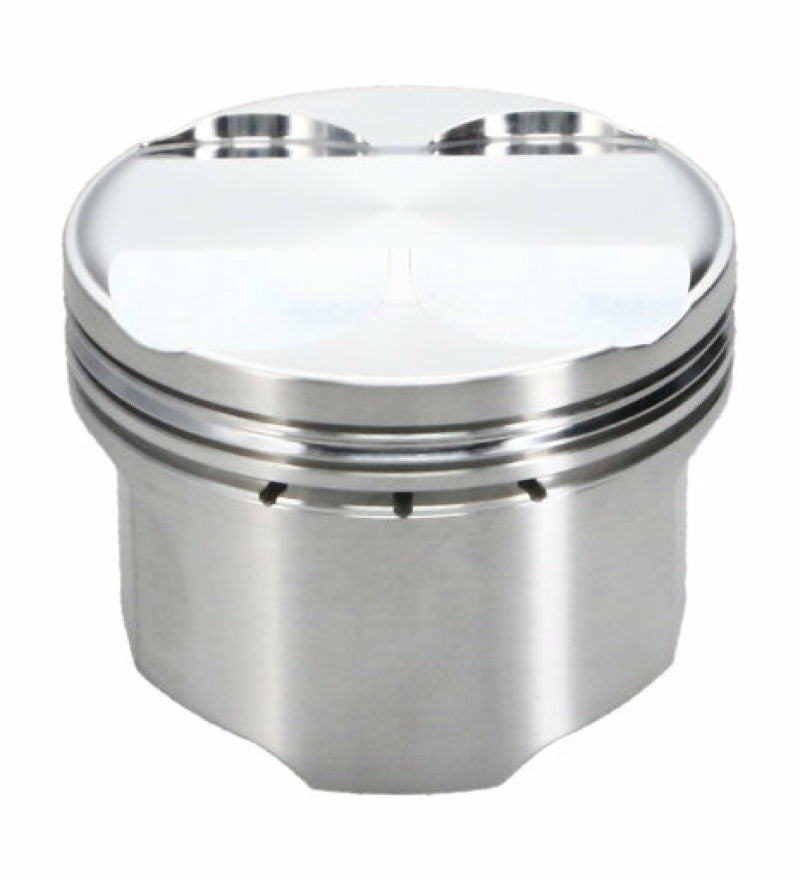

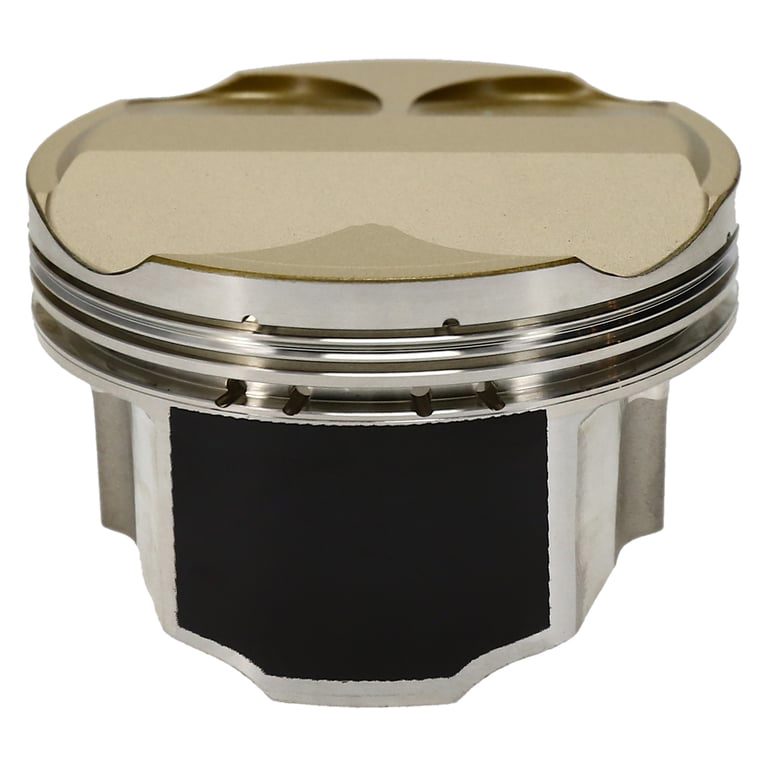

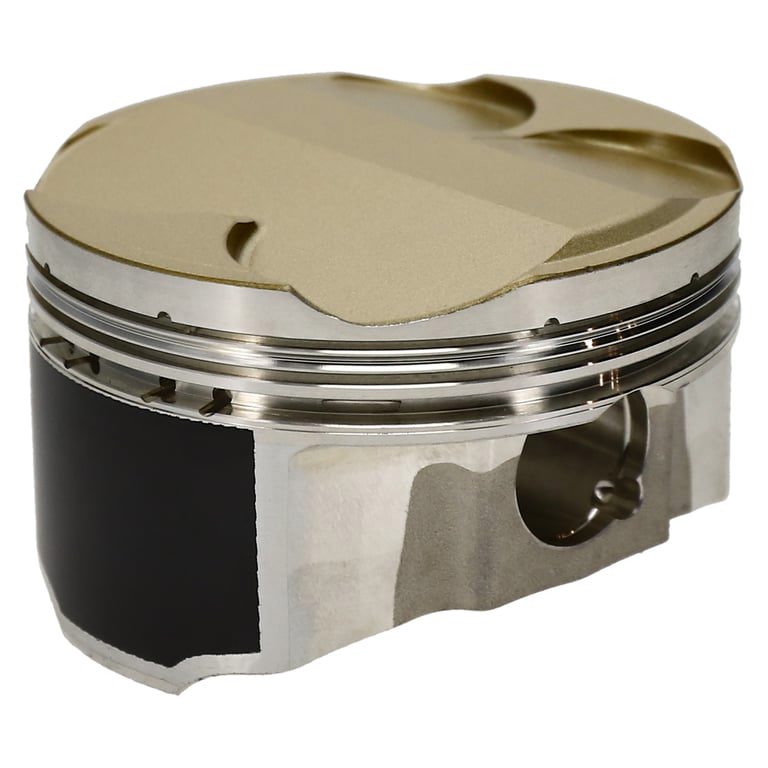

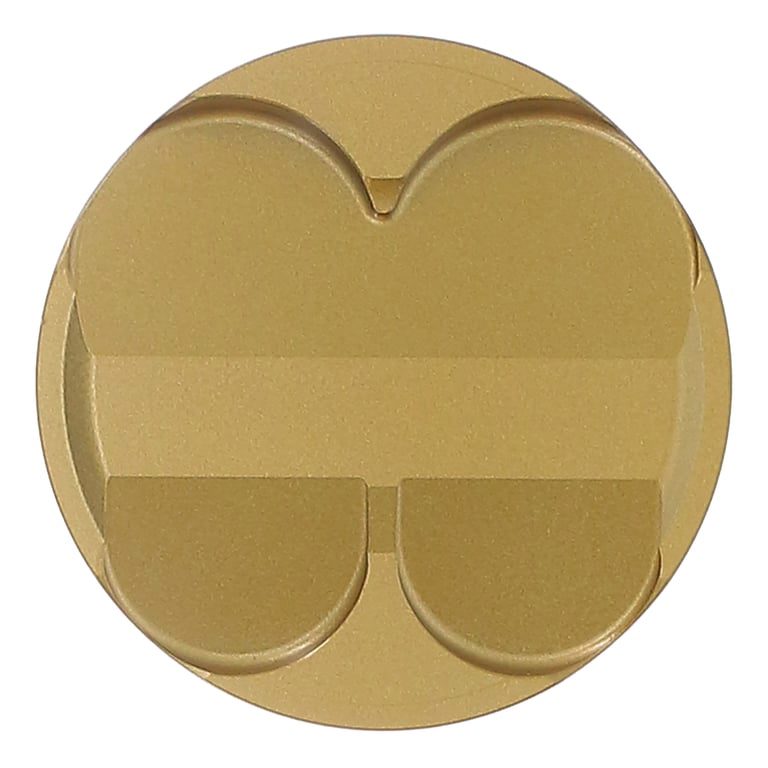

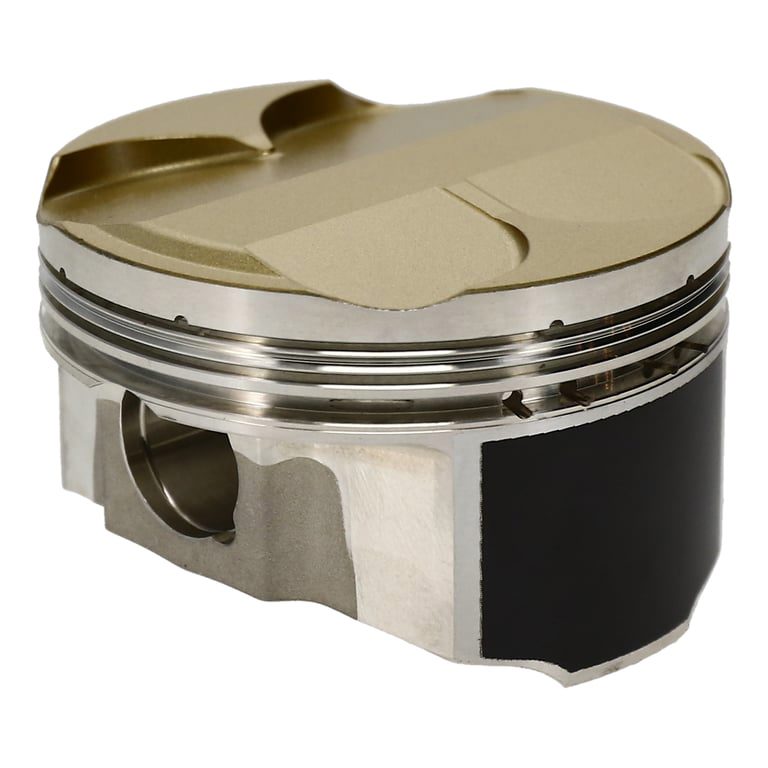

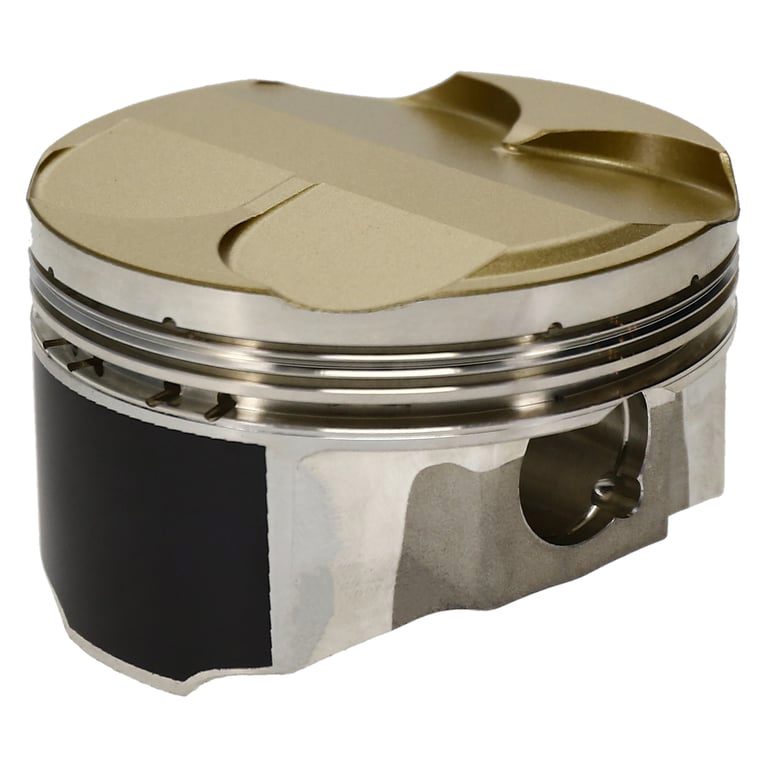

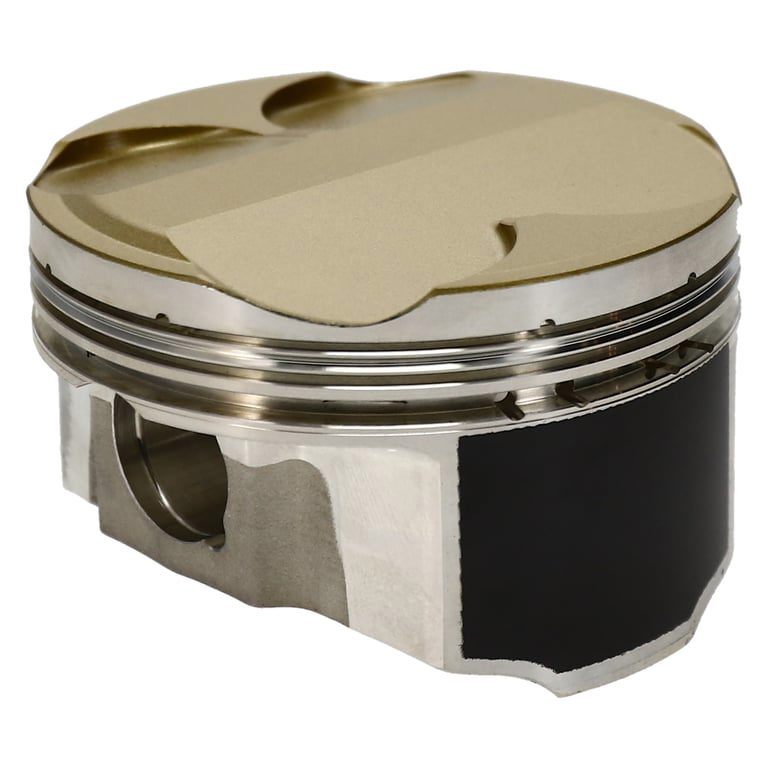

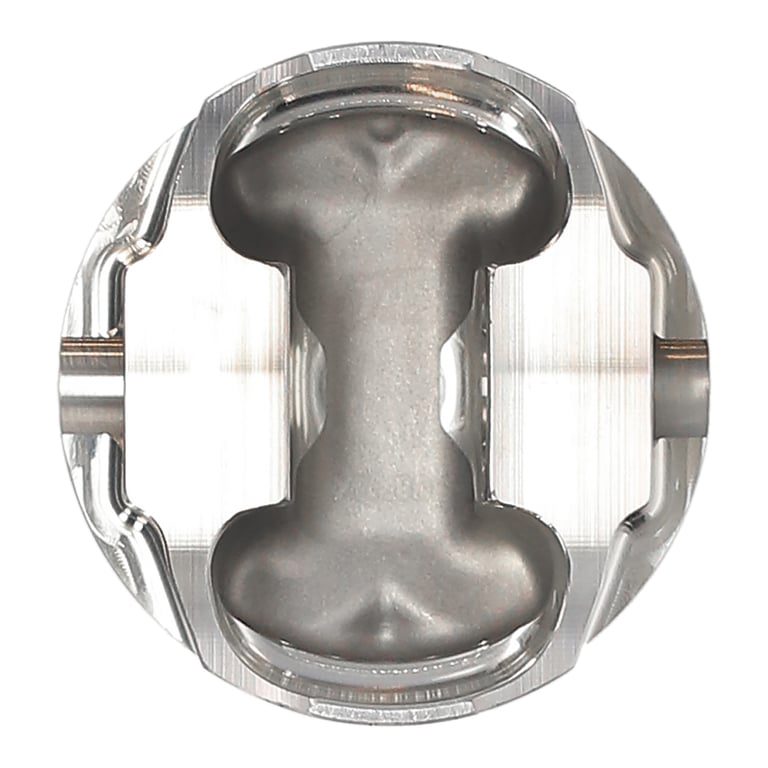

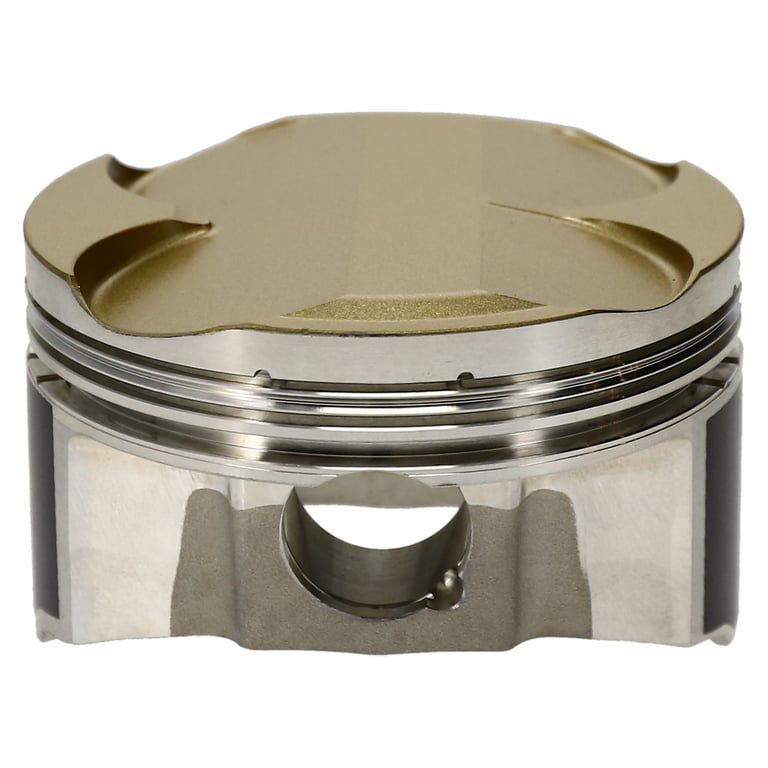

JE Pistons 379435 - JE ULTRA SERIES - 1999-07 Suzuki GSX 130 Piston Kit

Bore Diameter 3.189, 2618, Dome Piston Kit, Set of 4

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its range of Ultra Series pistons - The Strongest Pistons in Powersports. The Ultra Series combines all their premium features and a revolutionary new forging technology into an off-the-shelf piston kit. This includes an Aligned Grain Flow Forging, a proprietary JE technology that aligns forging grain flow in critical areas to improve strength.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Patented Dual Velocity Gas Ports combine the benefits of traditional gas ports, reducing ring flutter and movement while optimizing fuel efficiency and power output?without the risk of carbon build-up
  • Made 100% in the USA
Product Type: Engine Piston Kit
Bore Diameter: 3.189
Piston Material: 2618
Engine Type: ICE
Piston Average Weight: 256
Forging Type: FSR
Wrist Pin Outer Diameter: .787
Piston Head Type: Dome
Piston Volume: -1.5
Industry: Powersports
Wrist Pin Length: 2.250
Cylinder Head: SUZUKI M/C 01
Compression Ratio Actual: 13.5
Piston Series: JE Pistons
Product Market: Powersports
Intake Depth: .184
Intake Diameter: 1.420
Intake Angle: 13
Exhaust Depth: .120
Exhaust Diameter: 1.250
Exhaust Angle: 13
Stroke: 2.480
Top Groove Width: 0.04000
2nd Groove Width: 0.04800
Oil Groove Width: 0.11100
Piston To Wall Clearance: -0.002499
