JE Pistons 377959 - Piston Set, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin Dia, Set of 8

JE Pistons  |  SKU: BHXG-377959
Sale price $73499 Regular price $80849


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

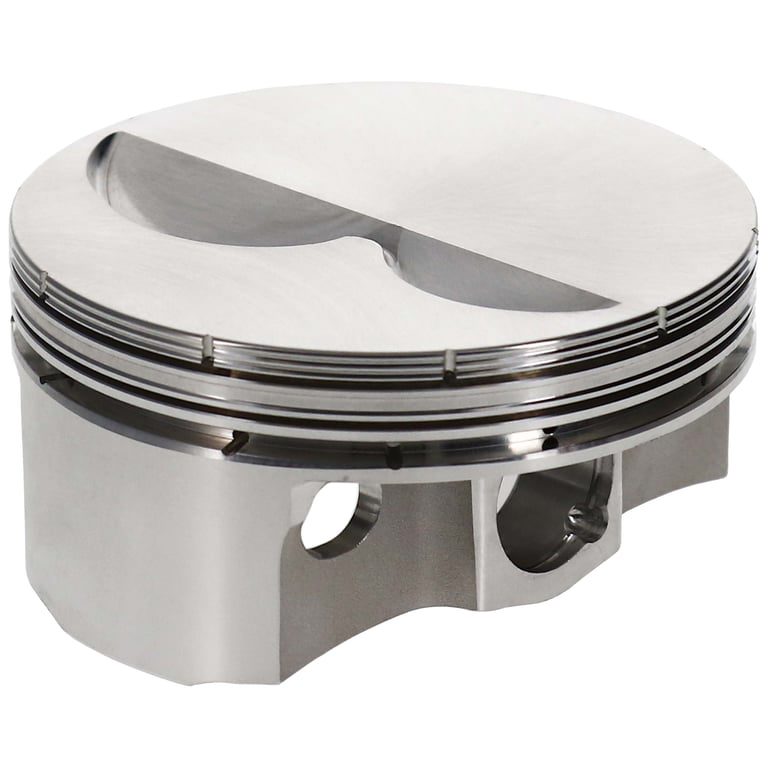

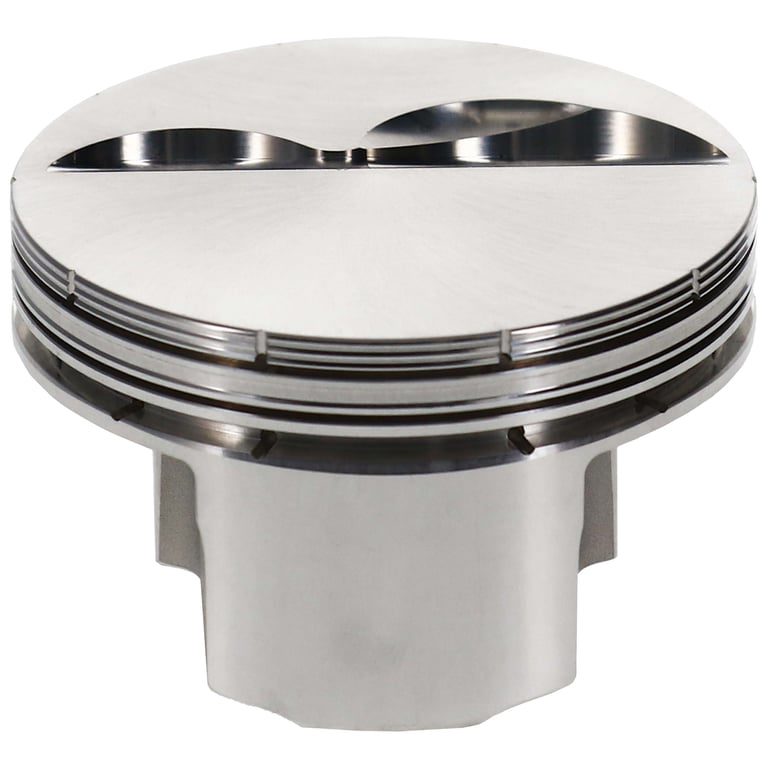

JE Pistons 377959 - Piston Set, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin Dia, Set of 8

Piston Set, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin Dia, Set of 8.

4.030 in. Bore, 1.250 CD, Flat Top, -3.8 cc, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Patented Dual Velocity Gas Ports combine the benefits of traditional gas ports, reducing ring flutter and movement while optimizing fuel efficiency and power output?without the risk of carbon build-up
  • Made 100% in the USA
Engine: Small Block
Engine Detail: Small Block
Engine Displacement: NISSAN
Engine Family: Small Block
Engine Stroke: 3.480
Engine Type: ICE
Exhaust Angle: 22
Exhaust Depth: S
Exhaust Diameter: 1.800
Forging Type: FSR
Gas Distribution: No
Industry: Automotive
Intake Angle: 22
Intake Depth: .280
Intake Diameter: 2.250
Lateral Gas Ports: No
Make: Chevrolet
Mill Undercrown: No
Oil Groove Width: 0.11900
Pin Fit: Yes
Piston Average Weight: 353
Piston Head Type: Flat Top
Piston Material: 2618
Piston Quantity: 8
Piston Series: JE Pistons
Piston To Wall Clearance: -0.006
Piston Volume: -3.80
Product Type: Engine Piston Kit
Skirt Coat: No
Smooth Crown Finish: Yes
Thermal Crown: No
Top Groove Width: 0.04400
Tuff Skirt: No
Ultra Dome: No
Ultra Groove: No
Ultra Groove Plus Gas Port: No
Vertical Gas Ports: No
Wrist Pin Length: 2.250
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Wall Thickness: 0.150
Product Market: Domestic
Add-On: 927-2250-15-51C
2nd Groove Width: 0.044
3D Undercrown Milling: No
Accumulator Groove: No
Anodize Top Ring Groove: No
Bore Diameter: 4.030
Combo 2: No
Compression Height: 1.250
Compression Ratio: 0.42013888888889
Connecting Rod Length: 6.000 IN
Contact Reduction: Yes
Cylinder Head: ENG QUEST 23
Double Pin Oilers: No
DVGP: Yes
Econo Undercrown Milling: No
EN Plating: No
