JE Pistons 376664 - Honda K24A2 87mm Bore 2.04cc 10.0:1 CR Kit - Set of 4 Pistons

JE Pistons  |  SKU: BHXG-376664
Sale price $94999 Regular price $1,04499

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

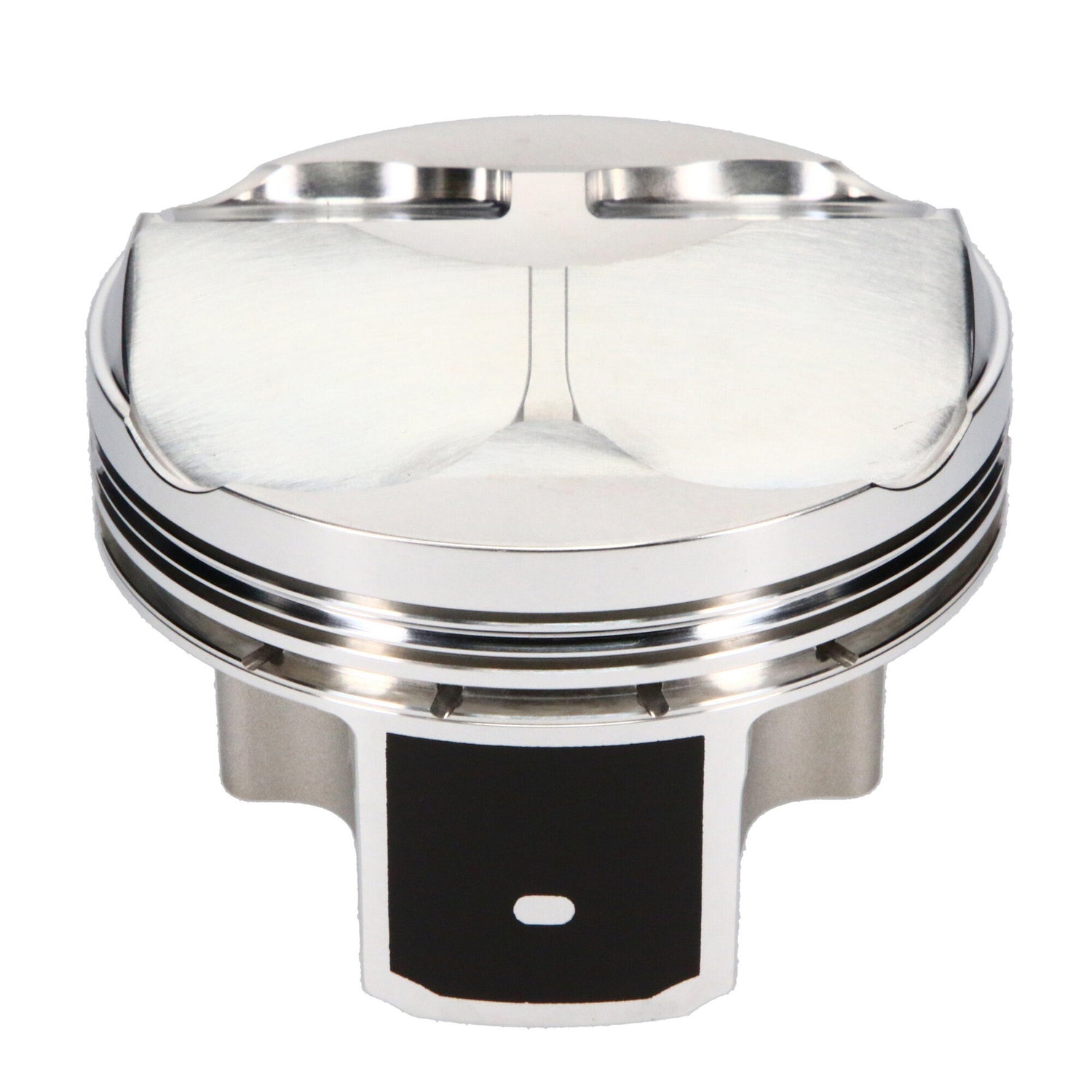

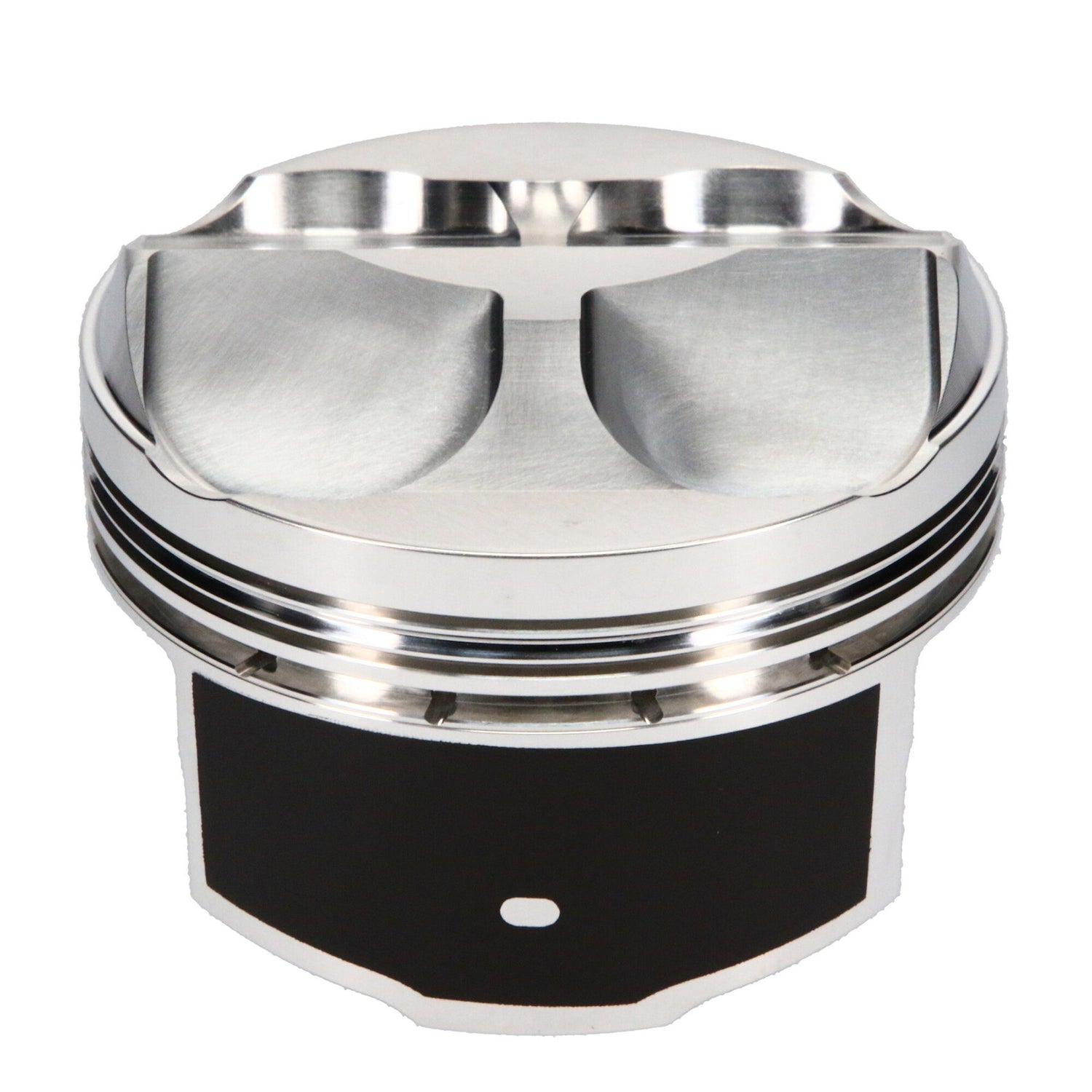

JE Pistons 376664 - Honda K24A2 87mm Bore 2.04cc 10.0:1 CR Kit - Set of 4 Pistons

Piston Set, 2618, 3.425 Bore, 1.176 CD, 0.866 Pin, Set of 4

87.00 mm/3.425 in. Bore - 10.0:1CR - 1.176 CD - 4 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Piston Series: JE Pistons
Bore Diameter: 87.00
Compression Ratio Actual: 10.0:1
Piston Head Type: Dome
Compression Height: 1.176
Piston Volume: -9.00
Piston Material: 2618
Piston Quantity: 4
Forging Type: FSR
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0395
Second Compression Ring Thickness: 0.0480
Oil Ring Thickness: 0.079
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.866
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.180
Engine Detail: K24A2 Series
Product Type: Engine Piston Kit
Product Market: Sport Compact
Add-On: 376665
Engine: K24A2 Series
Engine - Web: K Series
Make: Honda
Make - Web: Honda
Industry: Automotive
Category Hierarchy: Auto>All Piston Kits
Title - Web: JE Pistons Honda K Series Piston Kit
Engine Type: ICE
Bore Diameter - Web: 87.00 MM
EBAY Category ID: 33623
Out of Stock Message: Please Allow Approx. 6-8 Weeks or Less for Shipping
