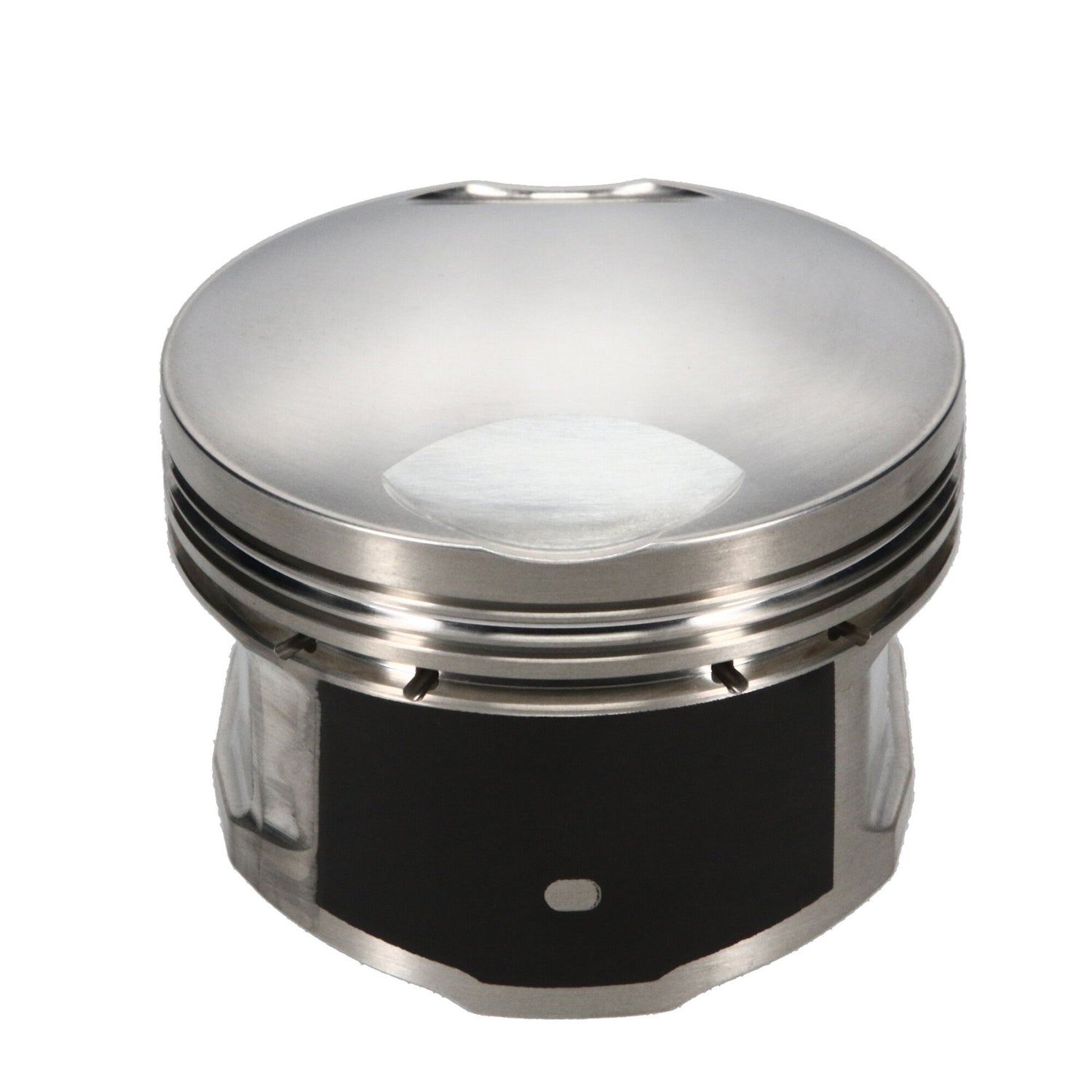

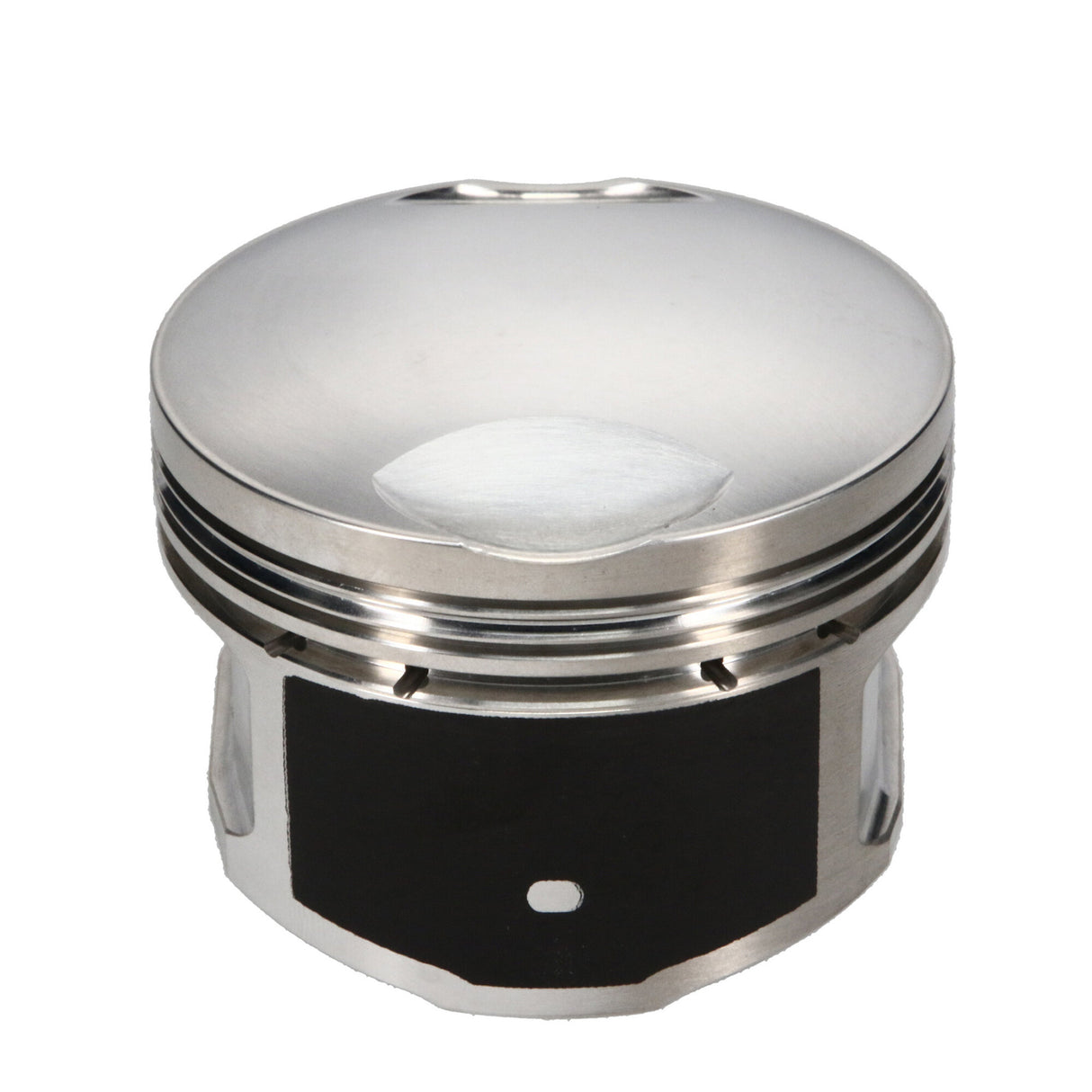

JE Pistons 362228 - Ferrari 4.0L 330 V12 2V - 77.50 mm Bore - 1.173 in. CH, 15.40 CC - Set of 12

JE Pistons  |  SKU: BHXG-362228
Sale price $2,64999 Regular price $2,91499

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

JE Pistons 362228 - Ferrari 4.0L 330 V12 2V - 77.50 mm Bore - 1.173 in. CH, 15.40 CC - Set of 12

Piston Set, 2618, Dome, 3.051 Bore, 1.173 CD, 0.728 Pin, Set of 12.

JE, Ferrari, 4.0L 330 V12 2V, 3.051 in. Bore, 9.00:1, Dome, 1 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: 330 GTC
Bore Diameter: 77.50
Piston Head Type: Dome
Compression Height: 1.173
Piston Volume: 15.40
Piston Material: 2618
Piston Quantity: 2
Forging Type: Round
Piston Average Weight: 266
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0400
Second Compression Ring Thickness: 0.0480
Oil Ring Thickness: 0.111
Wrist Pin Outer Diameter: 0.728
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.120
Product Type: Engine Piston Kit
Product Market: European
Add-On: JG1001-3051
Engine: 4.0L 330 V12 2V
Engine - Web: 4.0L 330 V12 2V
Make: Ferrari
Make - Web: Ferrari
Industry: Automotive
Category Hierarchy: Auto>All Piston Kits
Title - Web: JE Pistons Ferrari 4.0L 330 V12 2V Piston Kit - 77.50 mm Bore - 1.173 in. CH, 15.40 CC
Engine Type: ICE
Bore Diameter - Web: 77.50 MM
EBAY Category ID: 33623
Out of Stock Message: Please Allow Approx. 6-8 Weeks or Less for Shipping
