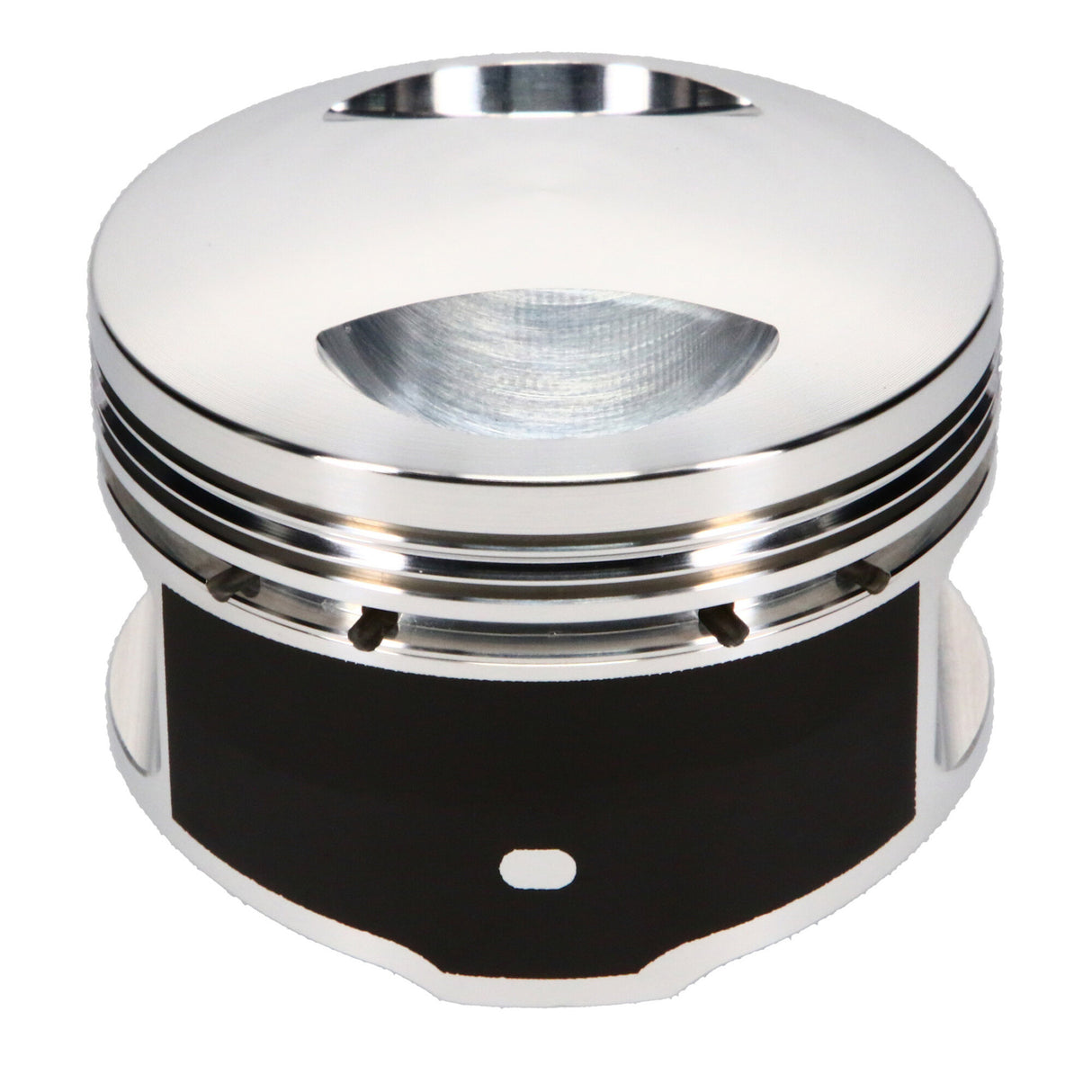

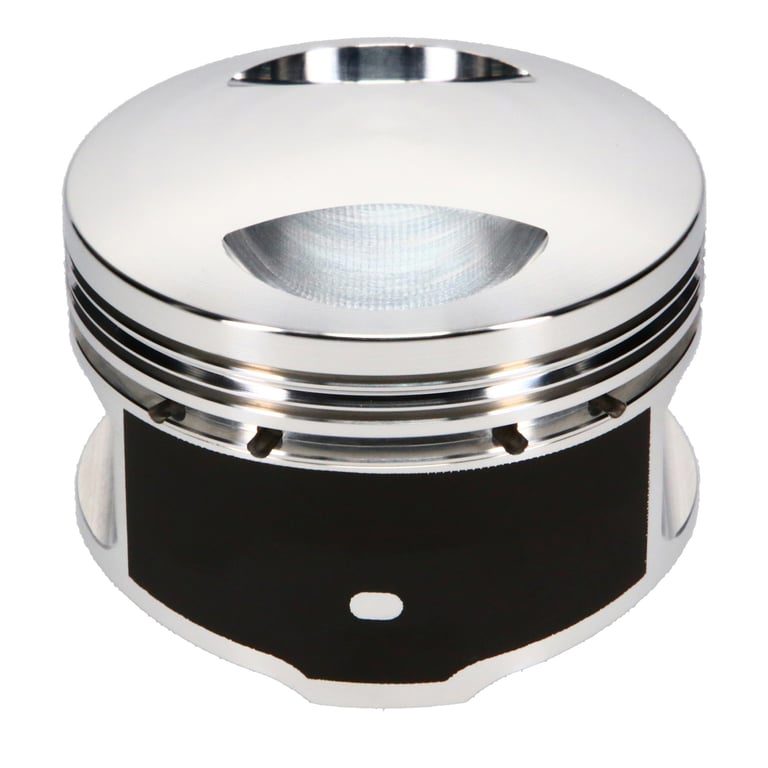

JE Pistons 362215 - JE Piston Ferrari 3.0L 250 V12 2V 73.50 mm Bore 1.138 in CH 10.00 CC - Set of 12

JE Pistons  |  SKU: BHXG-362215
Sale price $2,62499 Regular price $2,88749

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

JE Pistons 362215 - JE Piston Ferrari 3.0L 250 V12 2V 73.50 mm Bore 1.138 in CH 10.00 CC - Set of 12

Piston Set, 2618, Dome, 2.894 Bore, 1.138 CD, 0.669 Pin, Set of 12.

JE, Ferrari, 3.0L 250 V12 2V, 2.894 in. Bore, 9.50:1, Dome, 12 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Oil Groove Width: 0.11100
2nd Groove Width: 0.04800
Top Groove Width: 0.04000
Intake Angle: 30
Exhaust Angle: 30
Exhaust Diameter: 1.600
Exhaust Depth: .115
Intake Diameter: 1.600
Intake Depth: .115
Piston To Wall Clearance: -0.003499
Piston Series: JE Pistons
Cylinder Head: 250 SYMMETRICAL
Bore Diameter: 73.50
Piston Head Type: Dome
Compression Height: 1.138
Piston Volume: 10.00
Piston Material: 2618
Piston Quantity: 12
Forging Type: Round
Piston Average Weight: 235
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0400
Second Compression Ring Thickness: 0.0480
Oil Ring Thickness: 0.111
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.669
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.120
Product Type: Engine Piston Kit
Product Market: European
Add-On: XC7350
Engine: 3.0L 250 V12 2V
Make: Ferrari
Industry: Automotive
Engine Type: ICE
Stroke: 2.315
