JE Pistons 360824 - Piston Set, 2618, Inv Dome/Dish, 4.065 Bore, 1.326 CD, 0.943 Pin, Set of 8

JE Pistons  |  SKU: BHXG-360824
$1,01699 $1,11869

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

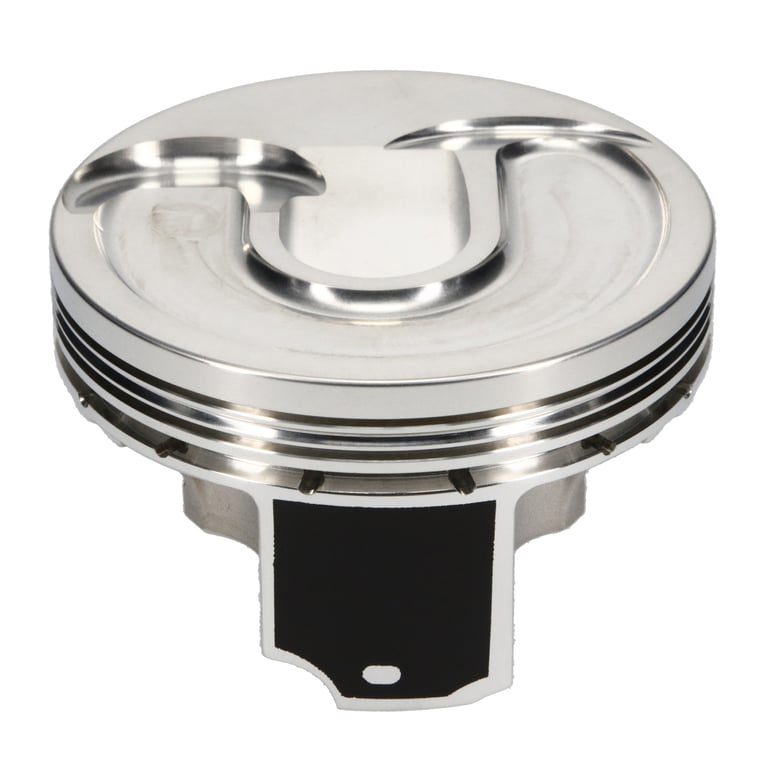

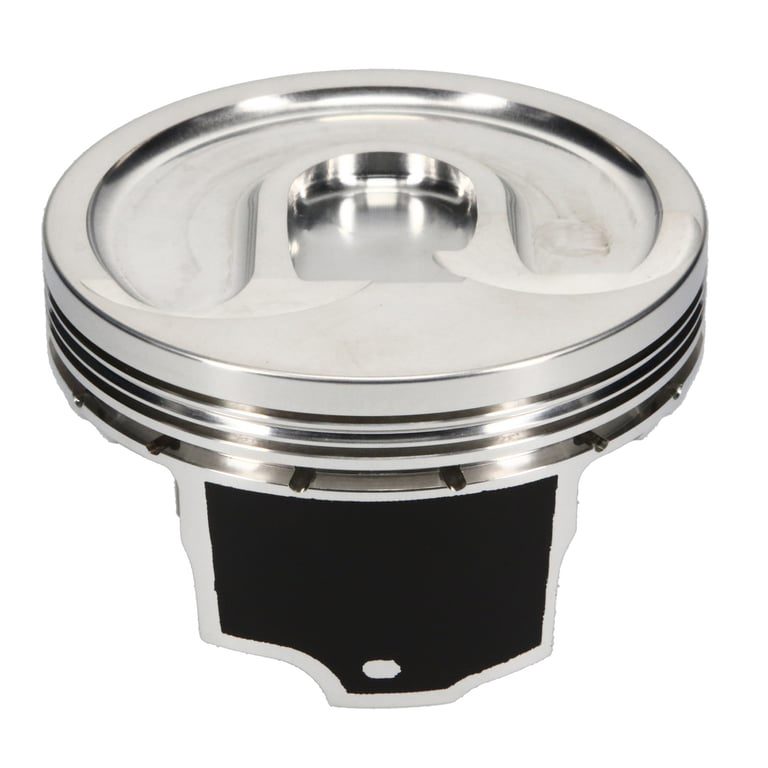

JE Pistons 360824 - Piston Set, 2618, Inv Dome/Dish, 4.065 Bore, 1.326 CD, 0.943 Pin, Set of 8

Piston Set, 2618, Inv Dome/Dish, 4.065 Bore, 1.326 CD, 0.943 Pin, Set of 8.

JE, Chevrolet, LT1 Gen V, 4.065 in. Bore, 1.326 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Compression Height: 1.326
Compression Ratio: 10.00:1 / 59.00 CC Head
Connecting Rod Length: 6.098
Contact Reduction: No
Cylinder Head: GEN 5 LT1
Deck Height: 9.240
Double Pin Oilers: Yes
DVGP: No
Econo Undercrown Milling: No
EN Plating: No
Engine: LT1 (Gen V)
Engine Displacement: 376
Engine Family: LS
Engine Stroke: 3.622
Engine Type: ICE
Exhaust Angle: 12
Exhaust Depth: .185
Exhaust Diameter: 1.750
Forging Type: FSR
Gas Distribution: No
Industry: Automotive
Intake Angle: 12
Intake Depth: .083
Intake Diameter: 2.300
Lateral Gas Ports: No
Make: Chevrolet
Mill Undercrown: No
OEM Bore Diameter: 4.065
Oil Groove Width: 0.11750
Oil Ring Thickness: 0.1175
Piston Average Weight: 559
Piston Head Type: Dish
Piston Material: 2618
Piston Quantity: 8
Pin Fit: Yes
Oversized Amount: Standard
Oversized: No
Piston Series: JE Pistons
Piston Sub-Series: LT1 (Gen V)
Piston To Wall Clearance: -0.004
Piston Volume: -13.90
Product Type: Engine Piston Kit
Ring Set - Recommended: JG31F1-4070-0
Ring Set Included: Yes
Ring Set Part Number: JG31F1-4070-0
Ring Set Thickness: 1.20 MM x 1.50 MM x 3.00 MM
Second Compression Ring Thickness: 0.0600
Skirt Coat: Yes
Smooth Crown Finish: Yes
Thermal Crown: No
Top Compression Ring Thickness: 0.0480
Top Groove Width: 0.04800
Tuff Skirt: No
Ultra Dome: No
Ultra Groove: No
Ultra Groove Plus Gas Port: No
Vertical Gas Ports: No
Wrist Pin Included: Yes
Wrist Pin Length: 2.250
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.943
Wrist Pin Part Number: 943-2250-20-51C
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Part Number: 927-073-MW
Wrist Pin Wall Thickness: 0.200
Product Market: Domestic
Add-On: JG31F1-4070-0
2nd Groove Width: 0.06
3D Undercrown Milling: No
Accumulator Groove: Yes
Anodize Top Ring Groove: No
Bore Diameter: 4.065
Combo 2: No
