JE Pistons 353841 - 08-14 VW 2.0TSI (21mm Pin) 83.5mm Bore 9.6:1 CR -7.8cc Dome FSR Series Piston (Set of 4)

JE Pistons  |  SKU: BHXG-353841
Sale price $89999 Regular price $98999

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

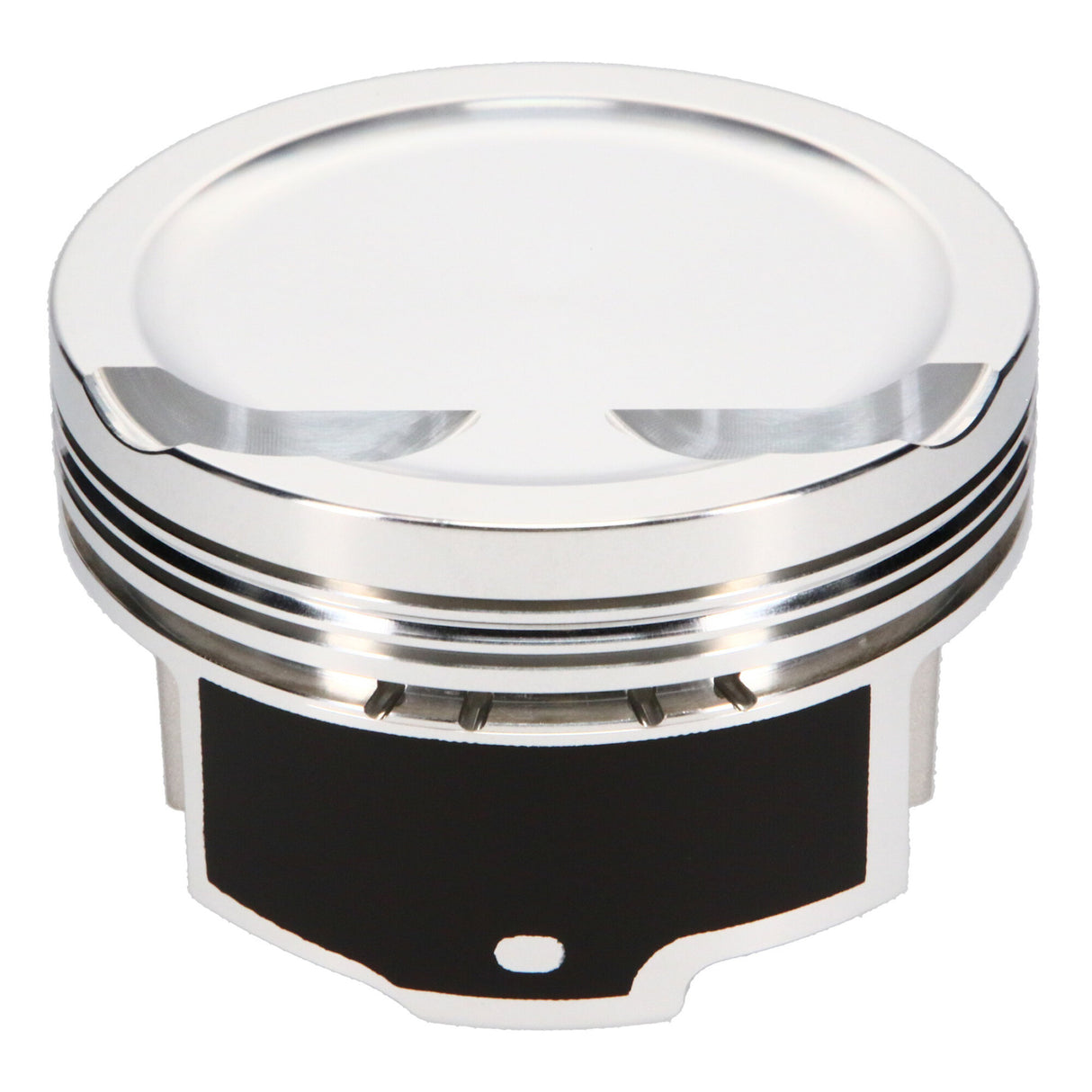

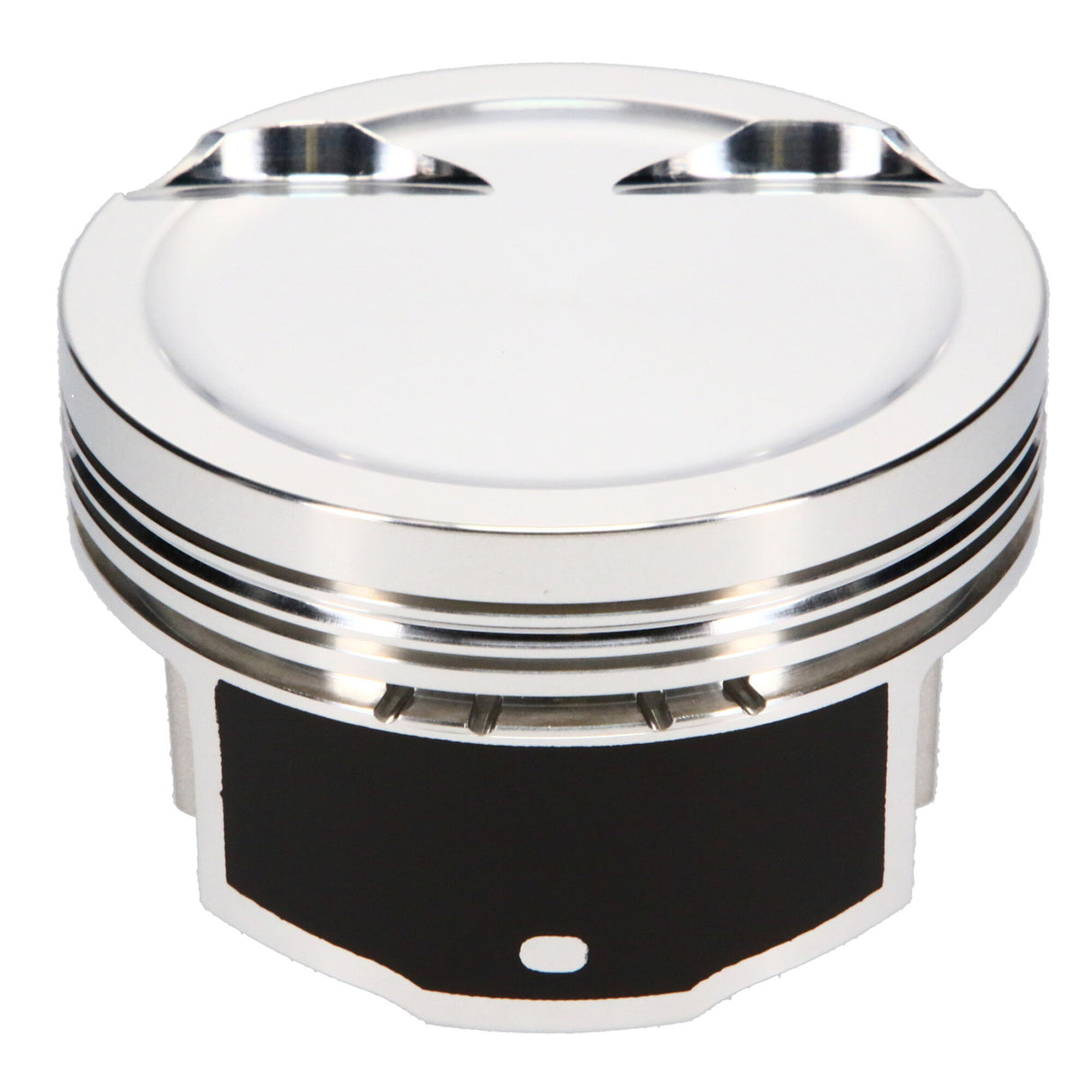

JE Pistons 353841 - 08-14 VW 2.0TSI (21mm Pin) 83.5mm Bore 9.6:1 CR -7.8cc Dome FSR Series Piston (Set of 4)

Piston Set, 2618, Inv Dome/Dish, 3.287 Bore, 1.165 CD, 0.827 Pin, Set of 4.

JE, VW, 2.0T TSI - 04-08 - 21mm Pin, 3.287 in. Bore, 9.60:1, Inverted Dome/Dish, 4 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: 2.0 TSI
Bore Diameter: 83.50
Piston Head Type: Dish
Compression Height: 1.165
Piston Volume: -8.40
Piston Material: 2618
Piston Quantity: 4
Forging Type: FSR
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0400
Second Compression Ring Thickness: 0.0480
Oil Ring Thickness: 0.111
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.827
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.150
Engine Detail: 2.0T TSI 04-08 21 mm Pin
Product Type: Engine Piston Kit
Product Market: European
Add-On: JG1001-3287
Engine: 2.0T TSI 04-08 21 mm Pin
Engine - Web: 2.0T TSI
Make: Volkswagen
Make - Web: Volkswagen
Industry: Automotive
Category Hierarchy: Auto>All Piston Kits
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Title - Web: JE Pistons Volkswagen 2.0T TSI Piston Kit - 83.50 mm Bore - 1.165 in. CH, -8.40 CC
Engine Type: ICE
Bore Diameter - Web: 83.50 MM
EBAY Category ID: 33623
